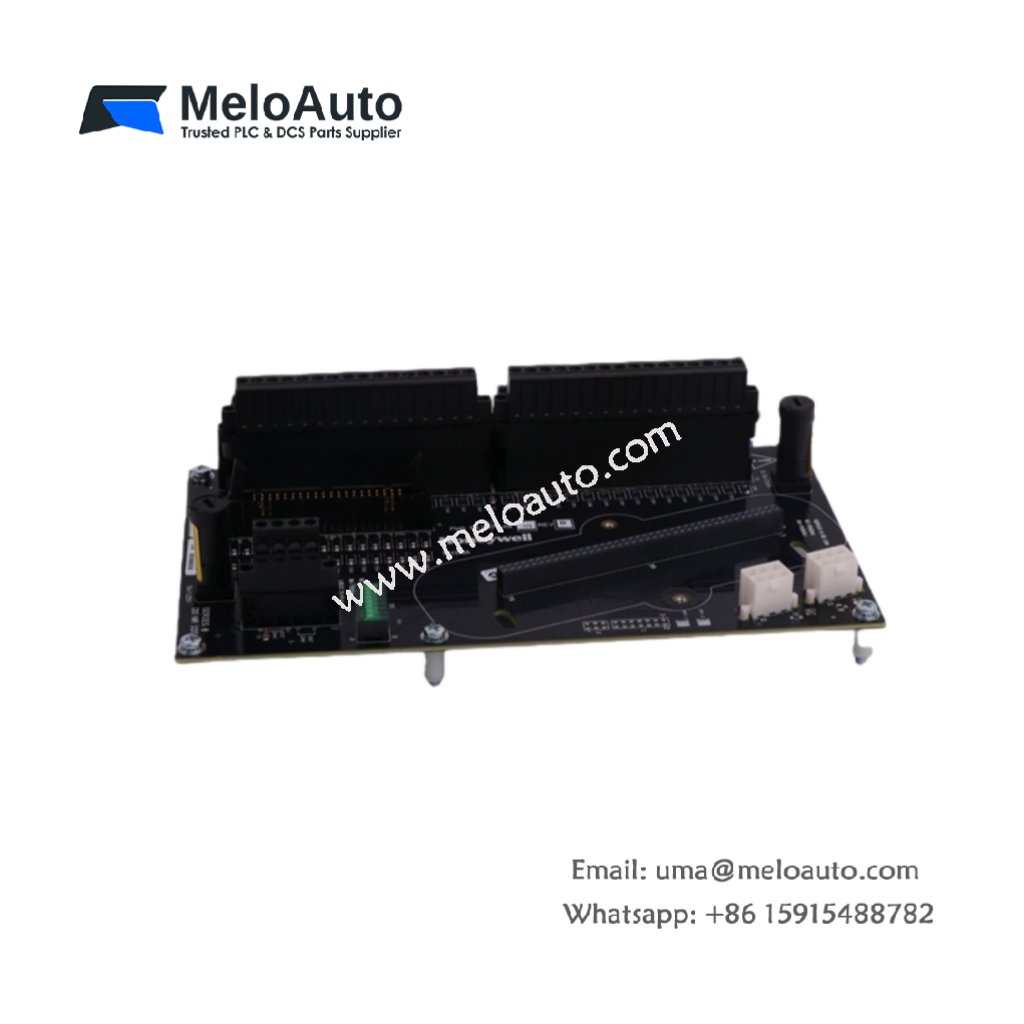

Honeywell 8C-TDODA1 Digital Output Module

Overview

The Honeywell 8C-TDODA1 is a high-performance 32-channel digital output module designed for seamless integration with Experion® LX systems. It offers reliable source-type outputs with configurable fault-safe behavior and advanced control modes. Moreover, the module is built to handle demanding industrial environments, featuring a conformal coating that protects against moisture, dust, and extreme temperatures.

Key Features

32 Output Channels: The 8C-TDODA1 module provides 32 output channels, offering versatile configurations for a wide range of industrial applications.
Advanced Control Modes: With support for latch, pulse, and PWM (pulse-width modulation) control, this module enhances operational flexibility.
Fault-Safe Configuration: Each channel can either retain the last value or switch to a safe state when a fault occurs, ensuring system continuity.
High Reliability: Thanks to short-circuit protection and fuse isolation, this module delivers enhanced safety and reliability, even in challenging conditions.
Environmental Protection: The conformal coating ensures the module’s protection from moisture, dust, and corrosion, allowing it to perform reliably in harsh environments.
Flexible Integration: The module easily integrates with Honeywell’s modular I/O architecture (IOTA), offering a scalable solution for various industrial needs.
Redundant Operation: For critical applications, optional redundancy ensures continuous operation even if a failure occurs.

Technical Specifications

Parameter	Specification
Model Number	8C-TDODA1
Manufacturer	Honeywell
Product Type	Digital Output Module
Output Channels	32 channels
Output Type	Source-type digital outputs
Rated Voltage	24V DC
Max Load Voltage	30V DC
Max Load Current	100mA per channel
Module Current Draw	105mA
Short-Circuit Protection	Yes, per channel
Fuse Configuration	4 fuses (1 per 8 channels)
Isolation	1000V AC (system to field, with external power)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Module Removal and Insertion	Supported while powered on
Environmental Protection	Conformal coating for moisture, dust, and corrosion resistance

Applications

The Honeywell 8C-TDODA1 is suitable for a variety of industrial applications, including:

Manufacturing Automation: Perfect for controlling actuators, solenoids, and other field devices in automated production environments.
Process Control: Ideal for applications in industries like chemical, pharmaceutical, and food processing.
Energy Management: Effectively manages energy systems, improving operational performance and safety.
Critical Infrastructure: Well-suited for power generation, oil & gas, and other high-stakes industries where uptime is crucial.
Building Automation: Integrates into HVAC, lighting control, and other building management systems.

Why Choose the Honeywell 8C-TDODA1?

The Honeywell 8C-TDODA1 is a reliable, high-performance digital output module that delivers superior flexibility and safety in industrial environments. With 32 output channels, robust short-circuit protection, and multiple control modes, it ensures safe and efficient control. Additionally, its conformal coating provides the durability needed for operation in harsh conditions. Whether you need to integrate it into a Honeywell Experion® LX system or another automation setup, this module ensures continuous performance and reliability.
