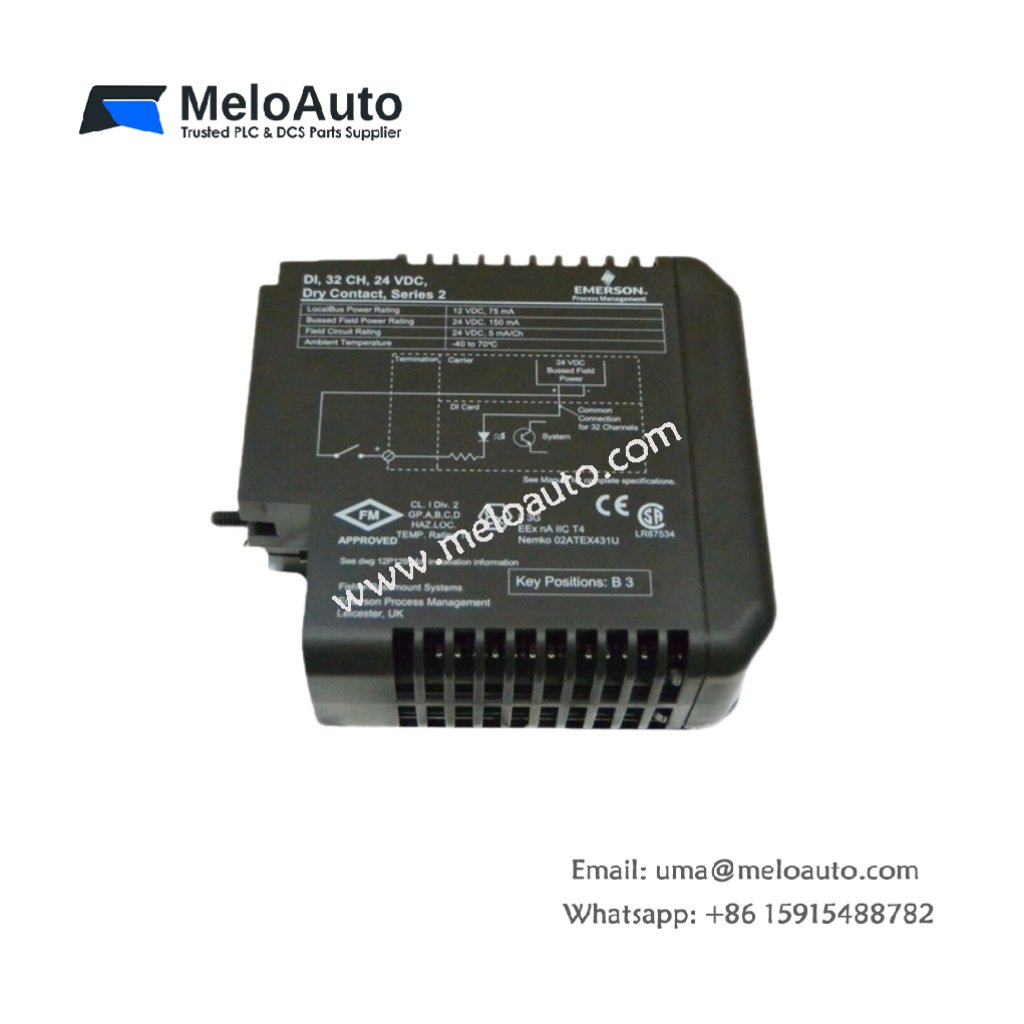

Emerson DeltaV KJ3203X1-BA1 Discrete Input Card

Overview

The Emerson DeltaV KJ3203X1-BA1 is a high-performance, 32-channel discrete input card designed for seamless integration within the DeltaV Distributed Control System (DCS). Ideal for industrial environments, this card facilitates reliable monitoring and control of discrete signals from a variety of field devices, such as switches, pushbuttons, and sensors. With its robust design, the DeltaV KJ3203X1-BA1 ensures exceptional reliability and durability in demanding applications.

Key Features

• 32 Dry Contact Inputs: Supports the connection and monitoring of multiple discrete signals for flexible integration.
• Nominal Input Voltage: Operates efficiently with a nominal input voltage of 24VDC, offering consistent performance across a wide range of industrial operations.
• Form A Contact Configuration: Features a Form A (normally open) contact configuration for reliable and accurate signal detection.
• Optically Isolated Inputs: Designed with optical isolation to protect signal integrity from electrical noise and other disturbances, ensuring high-quality data transmission.
• Reverse Polarity Protection: Built-in protection against incorrect wiring or voltage polarity, reducing the risk of damage and operational failure.
• DIN Rail Mounting: The KJ3203X1-BA1 is designed for easy installation on DIN rails, a common standard for industrial environments, simplifying setup and maintenance.
• ATEX and IECEx Certified: Certified for use in hazardous locations, the KJ3203X1-BA1 meets international safety standards, ensuring reliable performance even in challenging environments.

Technical Specifications

Manufacturer & Model

• Manufacturer: Emerson
• Model: DeltaV KJ3203X1-BA1
• Category: Discrete Input Card
