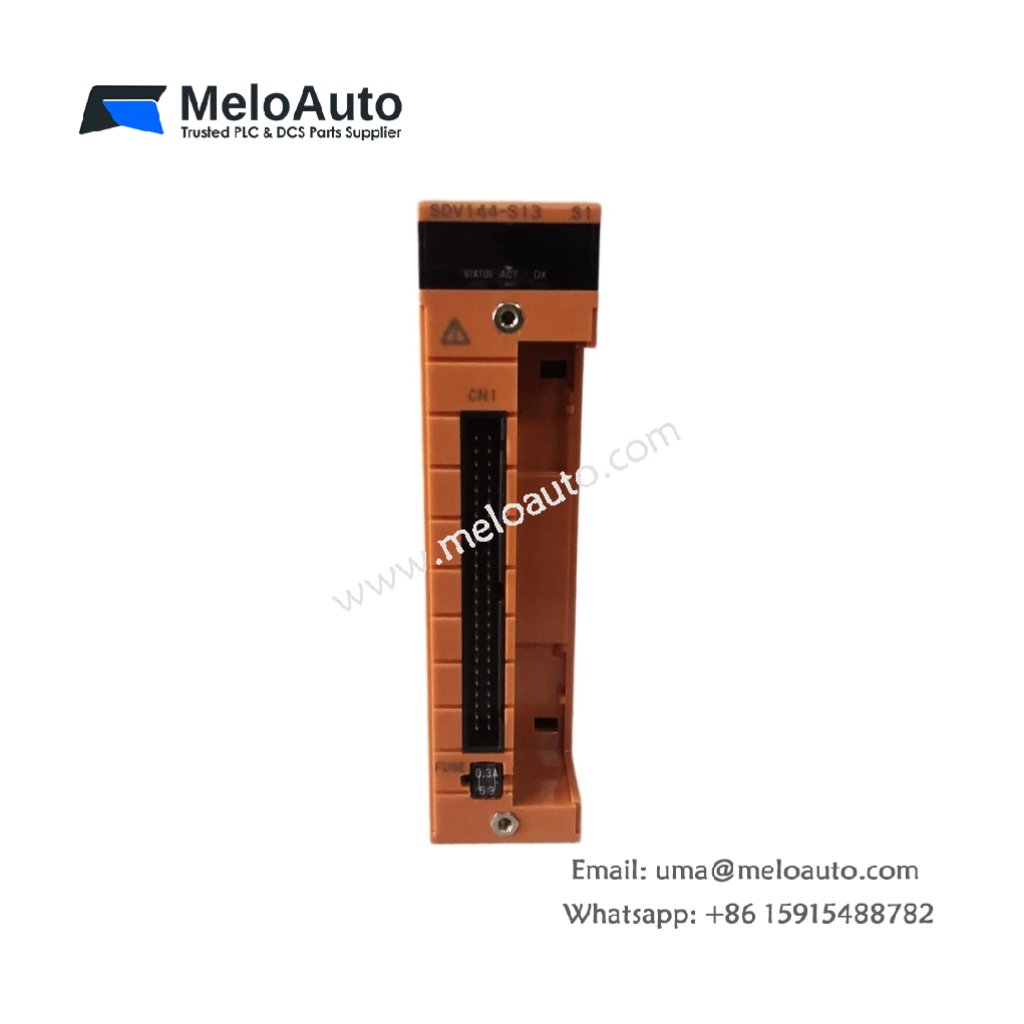

Yokogawa SDV144-S13 Input Module

The Yokogawa SDV144-S13 Input Module is designed for high-performance industrial automation systems. It offers precise and reliable signal processing, ensuring accurate data acquisition and seamless integration into your control system. This module supports up to 16 channels of isolated inputs, making it ideal for demanding industrial applications where fast and reliable signal transmission is essential.

Key Features of the Yokogawa SDV144-S13 Input Module

The Yokogawa SDV144-S13 is built to meet the rigorous needs of industrial automation. It features multiple input channels, high input voltage tolerance, and efficient power consumption. Below are the detailed technical specifications:

Model: Yokogawa SDV144-S13
Number of Inputs: 16 channels with module isolation for reliable signal transmission
Input Signal Type: No-voltage contact
Input Current: 6 mA + 20% (with an external 24 V DC power supply at 0 $2 input)
Contact Rating: 24 V DC ±20% / -10%, 10 mA or greater
External Power Supply: 24 V DC ±20% / -10%, capable of supporting up to 200 mA
Instantaneous Maximum Permissible Input Voltage: 30.0 V DC
Input Response Time: 40 ms maximum for quick and efficient signal processing
Withstand Voltage: 2 kV AC between input signal and system for 1 minute, ensuring safety in harsh environments
Current Consumption:
- 290 mA maximum (5 V DC)
- 140 mA maximum (24 V DC)
Weight:
- Approx. 0.36 kg (with pressure clamp terminal block or MIL cable)
- Approx. 0.41 kg (with signal cable interface adapter)
External Connections:
- Pressure clamp terminal
- MIL cable
- Dedicated signal cable (AKB331)

Fast and Reliable Signal Processing

The Yokogawa SDV144-S13 Input Module delivers fast input signal processing with a response time of just 40 ms. This quick response ensures minimal delay in industrial systems, where real-time data is essential. Whether used for measuring no-voltage contact signals or other types of inputs, the SDV144-S13 provides highly reliable performance.

Thanks to its robust design, this module can withstand up to 2 kV AC for one minute between the input signal and the system. This makes it ideal for environments where high-voltage surges or electrical noise are common.

Compact and Energy-Efficient Design

The Yokogawa SDV144-S13 is compact and lightweight, weighing just 0.36 kg with a pressure clamp terminal block. This allows easy installation even in space-constrained environments. Despite its small form factor, the module delivers powerful performance, offering reliable data processing with efficient power consumption. It operates on either 5 V DC or 24 V DC systems, with a maximum current consumption of just 290 mA (5 V DC) or 140 mA (24 V DC).

Technical Specifications

Specification	Value
Model	Yokogawa SDV144-S13
Number of Inputs	16 channels, module isolation
Input Signal Type	No-voltage contact
Input Current	6 mA + 20% (with external 24 V DC power supply)
Contact Rating	24 V DC ±20% / -10%, 10 mA or greater
External Power Supply	24 V DC ±20% / -10%, 200 mA
Maximum Input Voltage	30.0 V DC
Input Response Time	40 ms maximum
Withstand Voltage	2 kV AC (1 minute) between input signal and system
Current Consumption	290 mA max (5 V DC), 140 mA max (24 V DC)
Weight	Approx. 0.36 kg (with terminal block)
	Approx. 0.41 kg (with signal cable interface)
External Connection	Pressure clamp terminal, MIL cable, signal cable

Ideal Applications for the Yokogawa SDV144-S13

The Yokogawa SDV144-S13 is ideal for a wide range of industrial applications, including:

Real-time signal acquisition and monitoring
Data processing in industrial control systems
Equipment and process control
Measurement systems for automation
Industrial equipment with no-voltage contact inputs

Conclusion

The Yokogawa SDV144-S13 Input Module is a highly efficient and reliable solution for industrial automation. With its fast input response, high-voltage tolerance, and energy-efficient design, it ensures the accurate and reliable acquisition of input signals. Whether used for process control, monitoring, or other industrial applications, the SDV144-S13 delivers outstanding performance and reliability.
