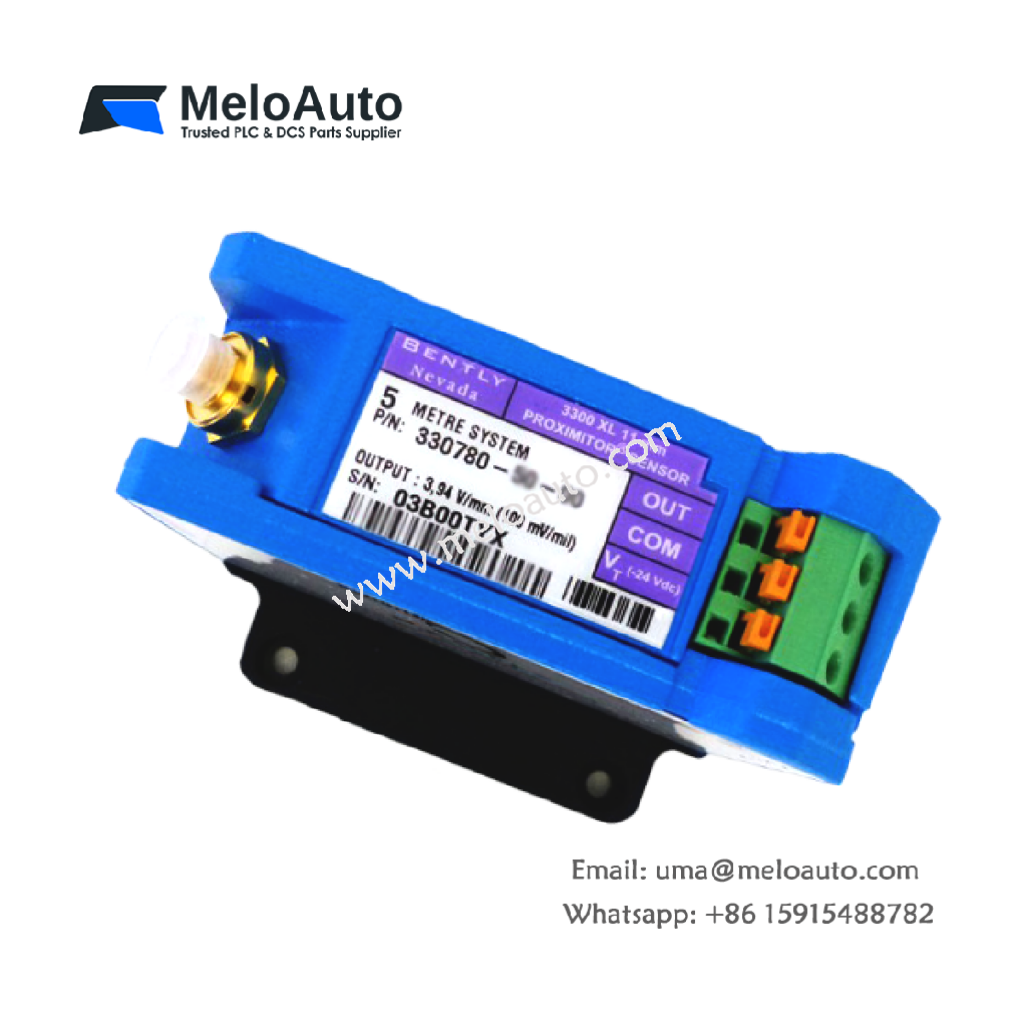

Bently Nevada 330780-51-00 | 3300 XL 11 mm Proximitor Sensor

Product Overview

The Bently Nevada 330780-51-00 is a 3300 XL 11 mm Proximitor Sensor, designed to work with 11 mm proximity probes and extension cables. It is a non-contacting sensor that provides accurate shaft vibration and position measurements for condition monitoring of rotating machinery.

Key Features

✔ Compatible with 3300 XL 11 mm Proximity Probes
✔ DIN Rail Mounting
✔ High Sensitivity and Reliability
✔ A380 Aluminum Housing for Durability
✔ Gold-plated connectors for superior signal transmission

Specifications

Electrical

• Input: Accepts one non-contacting 3300 XL 11 mm Proximity Probe and Extension Cable
• Power Requirements:
  • -17.5 Vdc to -26 Vdc without barriers
  • -23 Vdc to -26 Vdc with barriers
  • Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range
• Supply Sensitivity: < 2 mV change per volt input
• Output Resistance: 50 Ω

Mechanical

• Material: A380 Aluminum
• Weight: 255 g (9 oz)

Environmental Limits

• Operating Temperature: -35°C to +85°C (-31°F to +185°F)
• Storage Temperature: -51°C to +100°C (-60°F to +212°F)

Ordering Information

• Part Number: 330780-51-00
• Configuration Breakdown:
  • A: Total Length and Mounting Option → 51 (5.0 meters, DIN mount)
  • B: Agency Approval Option → 00 (Not required)
