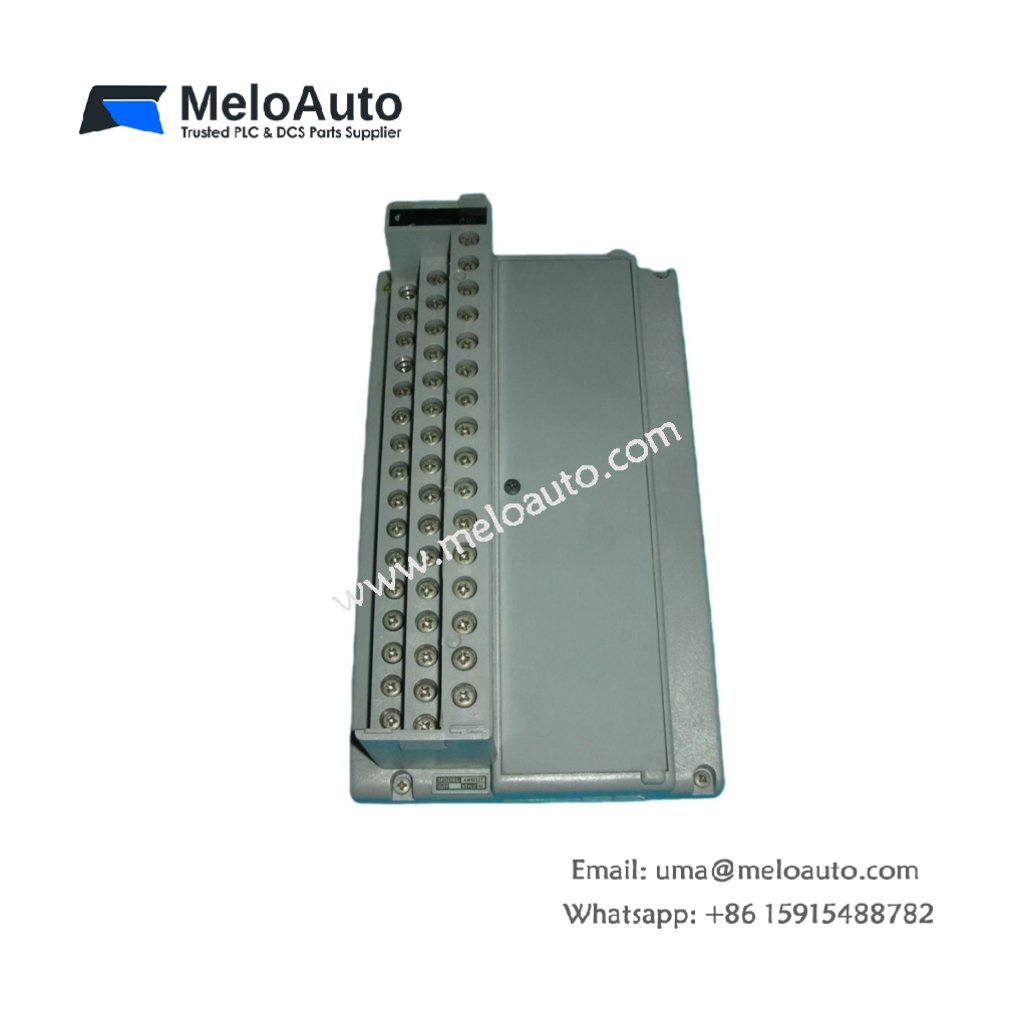

Yokogawa AMM32T RTD Input Multiplexer Module

Overview

The Yokogawa AMM32T is a high-performance RTD input multiplexer module specifically designed for industrial automation applications. With 32 isolated RTD input channels, it provides reliable and precise temperature measurements. The module supports a variety of RTD sensor types such as Pt100, Pt1000, and JPT100, making it versatile for diverse temperature monitoring and control needs. Ideal for expanding Yokogawa Centum CS and Centum VP systems, the AMM32T offers an efficient and cost-effective solution for managing high-precision temperature data across a wide range of industrial processes, machine control systems, and robotics.

Key Features

32 Isolated RTD Channels: The AMM32T supports up to 32 channels, enabling comprehensive temperature measurement for large-scale applications.
High-Precision Temperature Measurement: Delivers highly accurate readings for precise temperature control, ensuring optimal process performance.
Versatile RTD Sensor Support: Compatible with Pt1000, Pt10000, and JPT100 RTD sensors, providing flexibility for various measurement requirements.
Compact and Efficient Design: The module’s size allows it to fit seamlessly into control panels, reducing space requirements and simplifying installations.
Compatibility with Yokogawa Systems: Works flawlessly with Yokogawa Centum CS and Centum VP controllers, enhancing system integration and ease of use.

Technical Specifications

Feature	Specification
Model	AMM32T
Type	RTD Input Multiplexer Module
Number of Channels	32 isolated RTD input channels
Supported RTD Sensor Types	Pt100, Pt1000, JPT100
Maximum Input Resistance	2 MΩ per channel
Measurement Precision	High-precision temperature measurement
System Compatibility	Compatible with Yokogawa Centum CS and Centum VP controllers
Additional Modules	Compatible with AMT16R 16-channel module for expanded functionality
Dimensions	5.0″ x 4.0″ x 9.0″ (12.7 cm x 10.2 cm x 22.9 cm)
Weight	1 lb 13 oz (0.8 kg)
Power Supply	24 V DC
Operating Temperature Range	-10°C to +55°C
Mounting	Panel mounting, suitable for standard I/O nests

Applications

The Yokogawa AMM32T is well-suited for various industrial temperature monitoring and control applications, including:

Process Control: Efficiently manage temperature in large-scale industrial systems.
Machine Control: Ensure precise temperature regulation in automated machinery.
Robotics: Integrate with robotic systems requiring accurate temperature feedback.
Temperature Monitoring: Ideal for monitoring critical temperature points in manufacturing processes.
Industrial Automation: Expand the RTD input capacity in Yokogawa Centum CS and Centum VP systems for comprehensive control.
