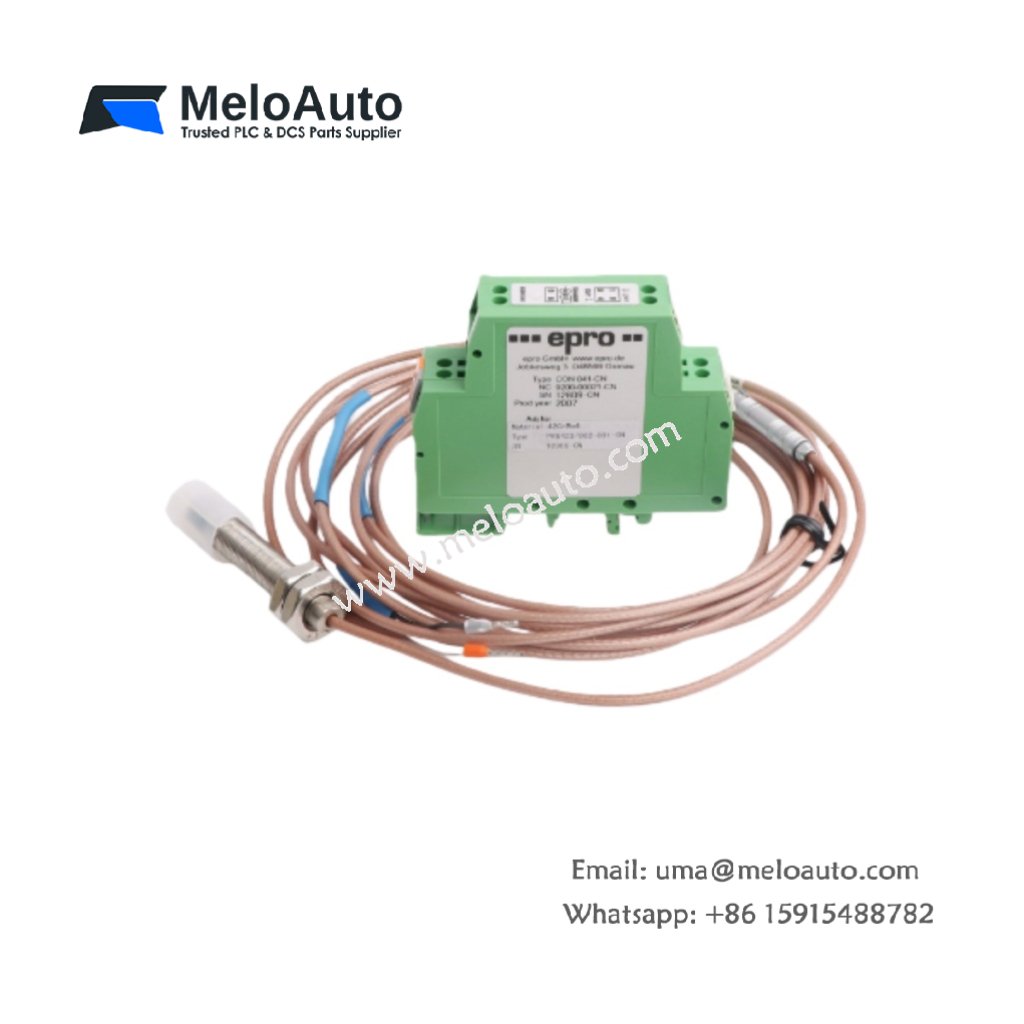

CON021 PR6423/002-000 9200-00006N Eddy Current Sensor

Overview

The EPRO CON021 PR6423/002-000 9200-00006N is a high-accuracy eddy current sensor specifically designed for shaft displacement measurement. This contactless sensor eliminates the need for mechanical contact with rotating shafts, minimizing wear and ensuring long-term reliability. It is well-suited for axial and radial displacement, shaft eccentricity, shaft alignment, and vibration monitoring across various industrial applications.

With its high resolution and exceptional accuracy, the EPRO CON021 PR6423/002-000 9200-00006N meets stringent industry standards and is ATEX certified for use in explosive environments. This sensor is ideal for demanding conditions where precision and durability are essential.

Key Features

High Accuracy: The EPRO CON021 PR6423/002-000 9200-00006N offers an impressive accuracy of 0.05%, providing reliable measurements in critical applications.
High Resolution: It delivers a 0.001 mm resolution, ensuring precise and detailed readings for both static and dynamic measurements.
Wide Temperature Range: This sensor operates across a broad temperature range of -40°C to +85°C, making it versatile for use in various environments.
Wide Humidity Range: It is capable of functioning in environments with 0 to 95% RH, ensuring flexibility in industrial settings.
Durability: Resistant to vibrations up to 20g pk-pk and shocks up to 50g pk-pk, this sensor is built to withstand harsh conditions.
Explosion-Proof: The meets ATEX standards (Ex ib II C T6/T4), making it suitable for explosive environments.
International Standards Compliance: Developed according to industry standards such as API 670, DIN 45670, and ISO 10817-1, it ensures reliable operation across different sectors.
Part of the MMS 3000 & MMS 6000 Systems: Compatible with the MMS 3000 and MMS 6000 machine monitoring systems, it enhances overall system performance.

Technical Specifications

Parameter	Value
Model Number	PR6423/002-000 9200-00006N
Measurement Range	0 to 0.1 mm
Resolution	0.001 mm
Accuracy	±0.05%
Operating Temperature	-40°C to +85°C
Humidity	0 to 95% RH
Vibration Resistance	Up to 20g pk-pk
Shock Resistance	Up to 50g pk-pk
Mounting Type	Threaded or Flanged
Hazardous Area Certification	Ex ib II C T6/T4

Applications

Machine Protection: The EPRO effectively monitors critical parameters such as shaft displacement and vibration, protecting machinery from potential damage.
Condition Monitoring: By continuously monitoring shaft displacement and other parameters, this sensor helps detect issues early, preventing costly failures.
Process Control: It provides accurate measurements of dynamic and static displacement, improving control over industrial processes and system optimization.
