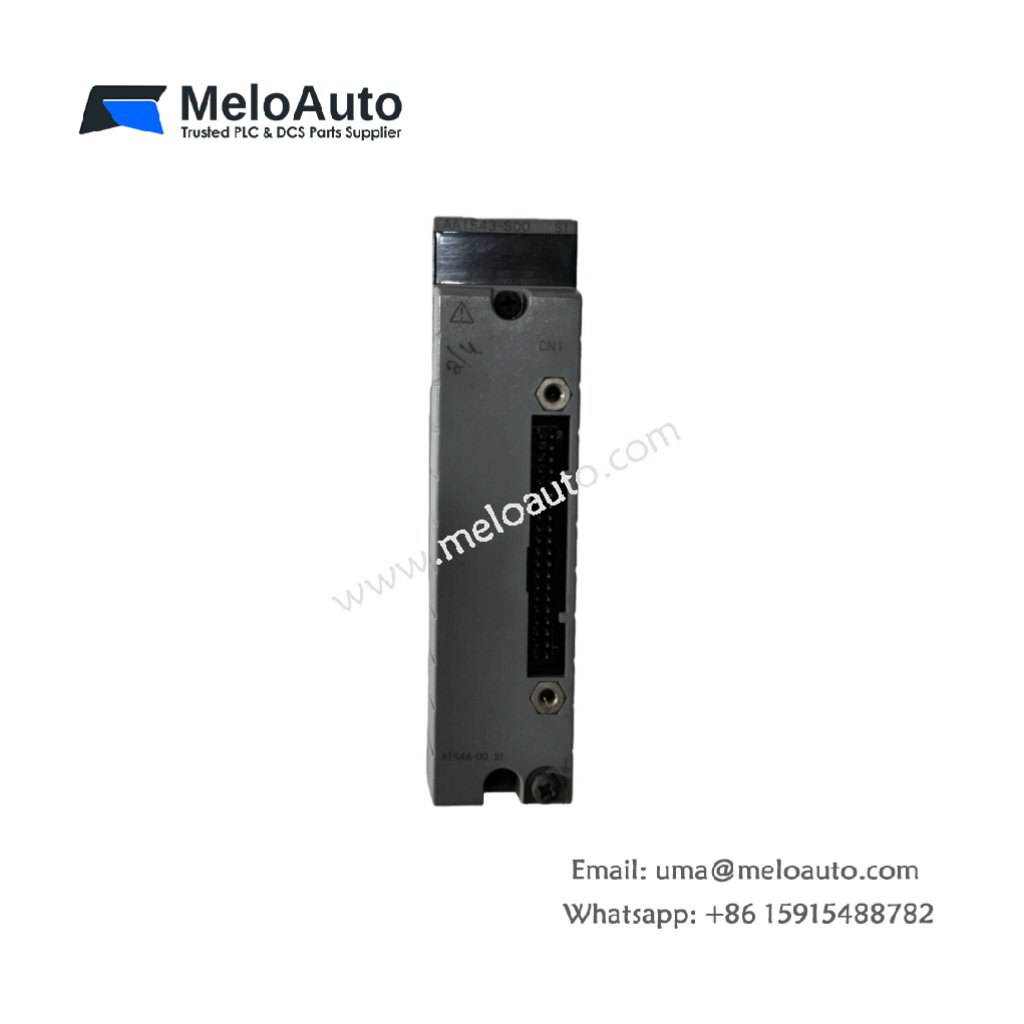

Yokogawa AAI543-S00 S1 Analog Output Module

The Yokogawa AAI543-S00 S1 is a highly reliable 16-channel isolated analog output module, designed for industrial control systems requiring precise signal transmission. With 4 to 20 mA output capability, this module provides outstanding performance in environments where high accuracy and reliability are critical. It supports dual-redundant configurations for added system reliability and integrates with HART communication for enhanced diagnostics and remote configuration.

Key Features

Number of Output Channels: 16 isolated channels for accurate signal output
Signal Output: 4 to 20 mA across all channels
Redundancy: Supports dual-redundant configurations for increased system reliability
Communication Protocol: HART communication for digital monitoring and diagnostics
Channel Isolation: Ensures minimal interference for stable signal transmission
Compact Design: Suitable for applications with limited space requirements
Temperature Range: Operational range from -20°C to 70°C, ensuring reliability in extreme conditions

The Yokogawa AAI543-S00 S1 module is perfect for industries where continuous control and precise output are essential, including oil and gas, power generation, and chemical processing applications.

Technical Specifications

Specification	Description
Number of Output Channels	16 (Isolated)
Output Signal	4 to 20 mA
Withstanding Voltage	1500 VAC (1 minute)
Allowable Load Resistance	0 to 7 ohms
Switch-Over Response	Standard or fast switch-over response
Communication Protocol	HART Communication
Temperature Range	-20 to 70°C
Maximum Current Consumption	230 mA (5VDC), 540 mA (24VDC)
Weight	0.4 kg
External Communication	Pressure clamp terminal, MIL connector cable, KS4
Channel Isolation	Yes

Performance and Integration

The Yokogawa AAI543-S00 S1 module is engineered to deliver high accuracy with a low drift over temperature changes. It offers precise control in industrial processes, where maintaining consistent signal output is critical. The module is designed to work seamlessly in redundant configurations, ensuring that the system remains operational even if one channel fails. Additionally, it offers robust protection with its 1500 VAC withstand voltage capability, making it suitable for harsh industrial environments.

Options and Accessories

/KS4: KS Cable Interface Adapter
/MIL: MIL Connector Cable for secure and reliable connections in industrial settings
/Pressure Clamp Terminal: Pressure clamp terminal for easier wiring and secure connections

Applications

The Yokogawa AAI543-S00 S1 is ideal for industries that demand precise, reliable, and high-performance signal control, such as:

Oil and Gas: Accurate control for actuators and valves in exploration and extraction systems.
Petrochemical: Supports stable control of chemical processes.
Power Generation: Reliable signal transmission for power plant automation systems.
Chemical Processing: Ensures precise control over process variables in critical applications.
Food and Beverage: Provides consistent control for automated production lines and packaging.

With its dual-redundant configuration and HART communication support, the Yokogawa AAI543-S00 S1 ensures the highest level of performance, making it a dependable choice for critical industrial applications.
