ABB 3DDE300410 CMA130 Synpol D Inverter Power Board

Overview

The ABB 3DDE300410 CMA130 is an essential Synpol D Inverter Power Board used in industrial automation systems. This module efficiently converts DC (direct current) into AC (alternating current) for powering AC motors and other AC-powered equipment. With its compact design and robust functionality, the CMA130 is a vital component in optimizing industrial automation processes.

Key Features

Reliable Power Conversion: The CMA130 ensures efficient conversion of DC to regulated AC output, providing reliable power to AC-driven systems.
Compact Design: Its small footprint saves valuable space in control cabinets, making it ideal for systems with limited space.
Seamless Compatibility: The module integrates smoothly with ABB Synpol D drives and motors, offering a complete motion control solution. Note: Compatibility details should be verified for specific applications.
Durable and Efficient: Designed for industrial environments, this power board provides high performance with minimal maintenance requirements.

Technical Specifications

Parameter	Specification
Model Number	3DDE300410 CMA130
Type	Synpol D Inverter Power Board
Input Power	DC (Direct Current)
Output Power	AC (Alternating Current)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Dimensions (L x W x H)	180 mm x 100 mm x 45 mm (7.1″ x 3.9″ x 1.8″)
Weight	1.2 kg (2.65 lbs)
Compatibility	Works with ABB Synpol D drives and motors
Cooling	Fan-assisted for efficient heat dissipation

Dimensions and Weight

Height: 45 mm (1.8 inches)
Width: 100 mm (3.9 inches)
Depth: 180 mm (7.1 inches)
Weight: 1.2 kg (2.65 lbs)

Applications

The ABB 3DDE300410 CMA130 Synpol D Inverter Power Board is designed for various industrial applications, including:

Industrial Automation: For controlling and powering AC motors and equipment in automated processes.
Motion Control: Ideal for use in drive systems requiring efficient AC power conversion.
Energy Conversion: In applications requiring reliable conversion from DC to AC power sources.
Robust Environments: Suitable for industries that demand high durability and continuous operation.

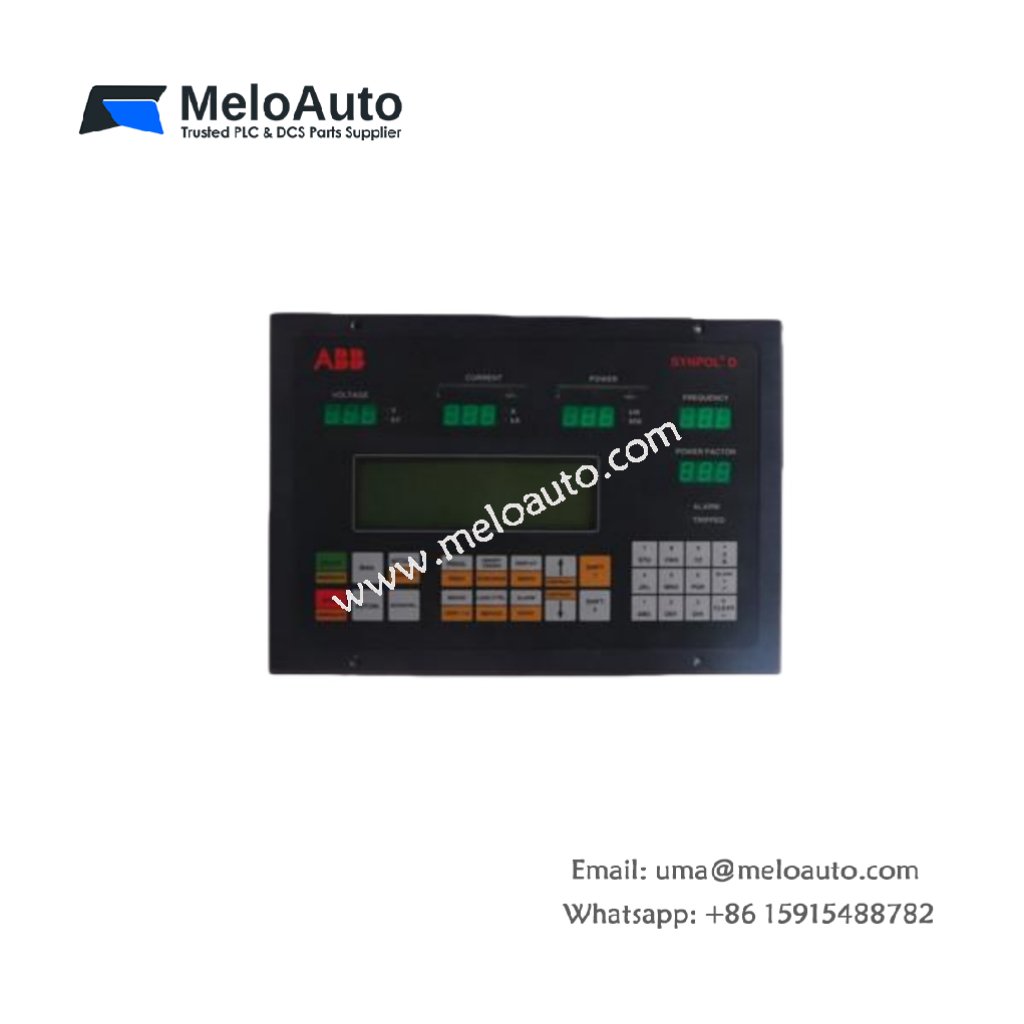

ABB 3DDE300410 CMA130 Industrial Display Panel

Overview

The ABB 3DDE300410 CMA130 also refers to a ruggedized display front panel, engineered to deliver reliable monitoring and control in industrial environments. With its high-resolution TFT display and durable construction, this panel is built to withstand the harshest operating conditions while offering a user-friendly interface for operators.

Key Features

High-Resolution Display: The CMA130 features a 10.4-inch TFT color display with an 800×600 pixel resolution, providing clear and vibrant visuals for operators.
Durability: Designed to endure extreme conditions, this panel is resistant to temperature fluctuations, dust, and vibrations, ensuring reliable operation in challenging environments.
Seamless Integration: It integrates easily with ABB control systems, ensuring quick installation and compatibility with existing automation setups.

Technical Specifications

Parameter	Specification
Model Number	3DDE300410 CMA130
Display Type	10.4-inch TFT color display
Resolution	800 × 600 pixels
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	0% to 95% RH (non-condensing)
Weight	2.5 kg (5.5 lbs)
Dimensions (L x W x H)	240 mm x 160 mm x 50 mm (9.45″ x 6.3″ x 1.97″)
Protection Rating	IP65 (dust-tight and water-resistant)

Dimensions and Weight

Height: 50 mm (1.97 inches)
Width: 160 mm (6.3 inches)
Depth: 240 mm (9.45 inches)
Weight: 2.5 kg (5.5 lbs)

Applications

The ABB 3DDE300410 CMA130 display panel is ideal for industries that require reliable and ruggedized control and monitoring solutions, such as:

Industrial Automation: To monitor and control automated systems.
Process Control: To interface with complex systems in various industrial processes.
Power Generation: For real-time monitoring and control of energy systems.
Harsh Environment Operations: Suitable for use in industries exposed to dust, moisture, and extreme temperatures.
