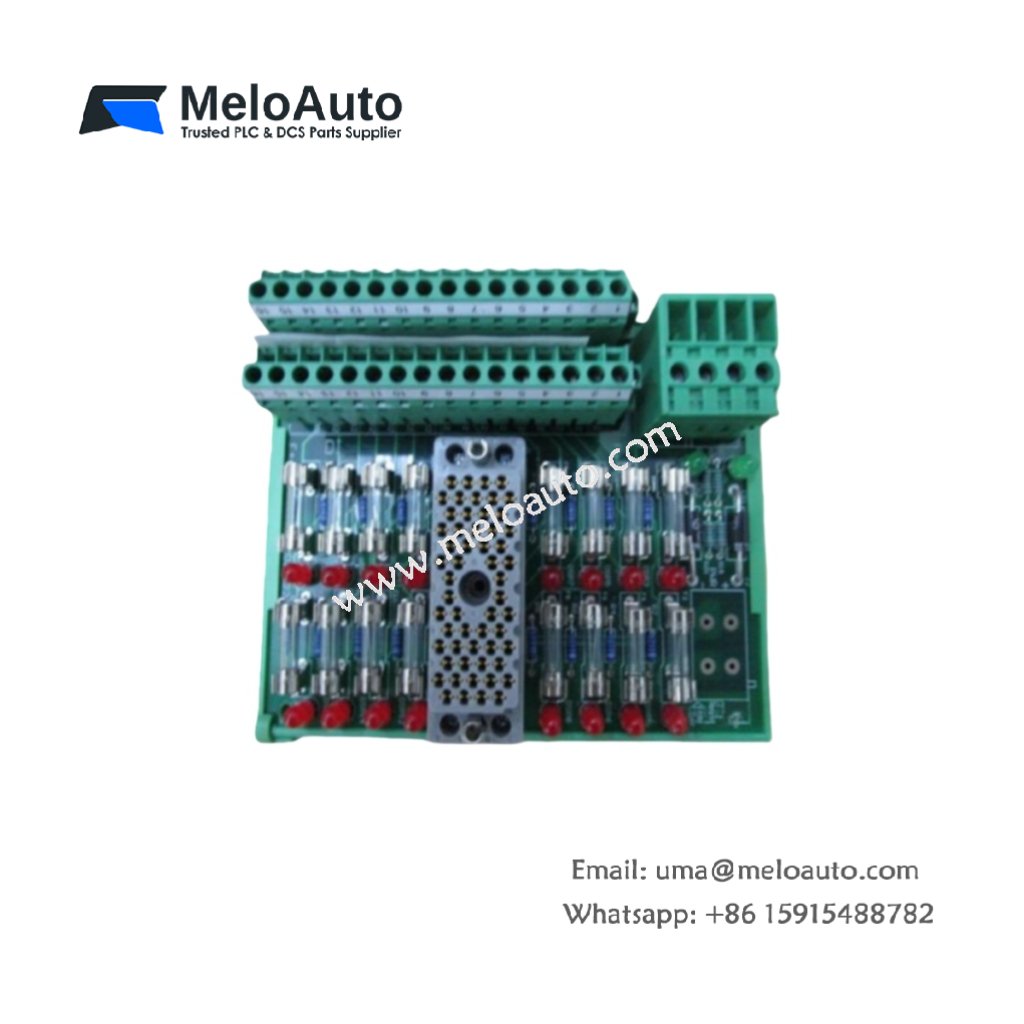

Triconex 9563-810 Termination Panel

The Triconex 9563-810 is a robust termination panel designed to interface with Triconex digital input modules, ensuring seamless connectivity and enhanced operational efficiency. It is equipped with 16 input points, each of which provides secure connections and protection for critical systems.

Key Features of Triconex 9563-810

16 Input Points: Supports up to 16 distinct input channels for versatile industrial applications.
Commoned Power Terminals: Features commoned power terminals (PWR+ and PWR-) for efficient power distribution.
Fuse Protection: Each input point includes fuse protection, along with a blown-fuse indicator for safety.
Compatibility: Works with both 3503E and 3505E Triconex digital input modules, offering flexible system integration.
Clear Labeling: Comes with two sets of labels for easy identification (1-16 and 17-32).
Leakage Current: Typically, the leakage current per point is 2.5 mA, with a maximum of 3.3 mA, ensuring safe operation.

Technical Specifications

Specification	Details
Model Number	9563-810
Manufacturer	Triconex (Schneider Electric/Invensys)
Panel Type	Termination Panel
Input Points	16
Leakage Current per Point	2.5 mA (Typical), 3.3 mA (Maximum)
Power Terminals	Commoned PWR+ and PWR-
Fuse Protection	1A, slow-acting fuse per point
Labels Included	Two sets (1-16, 17-32)
Dimensions	6.9″ x 4.1″ x 2.5″ (175 mm x 105 mm x 63 mm)
Weight	0.8 kg (1.76 lbs)
Modules Compatible with Panel	3503E, 3505E
Voltage Rating	24V DC
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Compatible Modules for Triconex 9563-810

Module Part Number: 3503E
- Points per Module: 32
- Description: 24V AC/DC, commoned in groups of 8, TMR with self-test functionality.
- Fuse: 1A, slow-acting.
Module Part Number: 3505E
- Points per Module: 32
- Description: 24V DC, low-threshold, commoned in groups of 8, TMR with self-test.
- Fuse: 1A, slow-acting.

Applications

The Triconex 9563-810 termination panel is widely used in process control and safety-critical industrial automation systems. It provides reliable connectivity for various types of input signals and integrates smoothly with Triconex I/O modules, ensuring high system uptime and efficiency. Common applications include:

Oil & Gas: Secure, reliable connections in remote, high-risk environments.
Chemical Processing: Provides robust control for hazardous chemical plants.
Power Generation: Ensures continuous, fault-tolerant operation in power plants.

Benefits of Triconex 9563-810

Increased System Uptime: With fuse protection and a blown-fuse indicator, the 9563-810 ensures long-term reliability.
Easy Maintenance: The commoned terminals and labeling system simplify installation and maintenance.
Scalable Integration: Fully compatible with multiple Triconex input modules, offering flexibility in system configurations.
