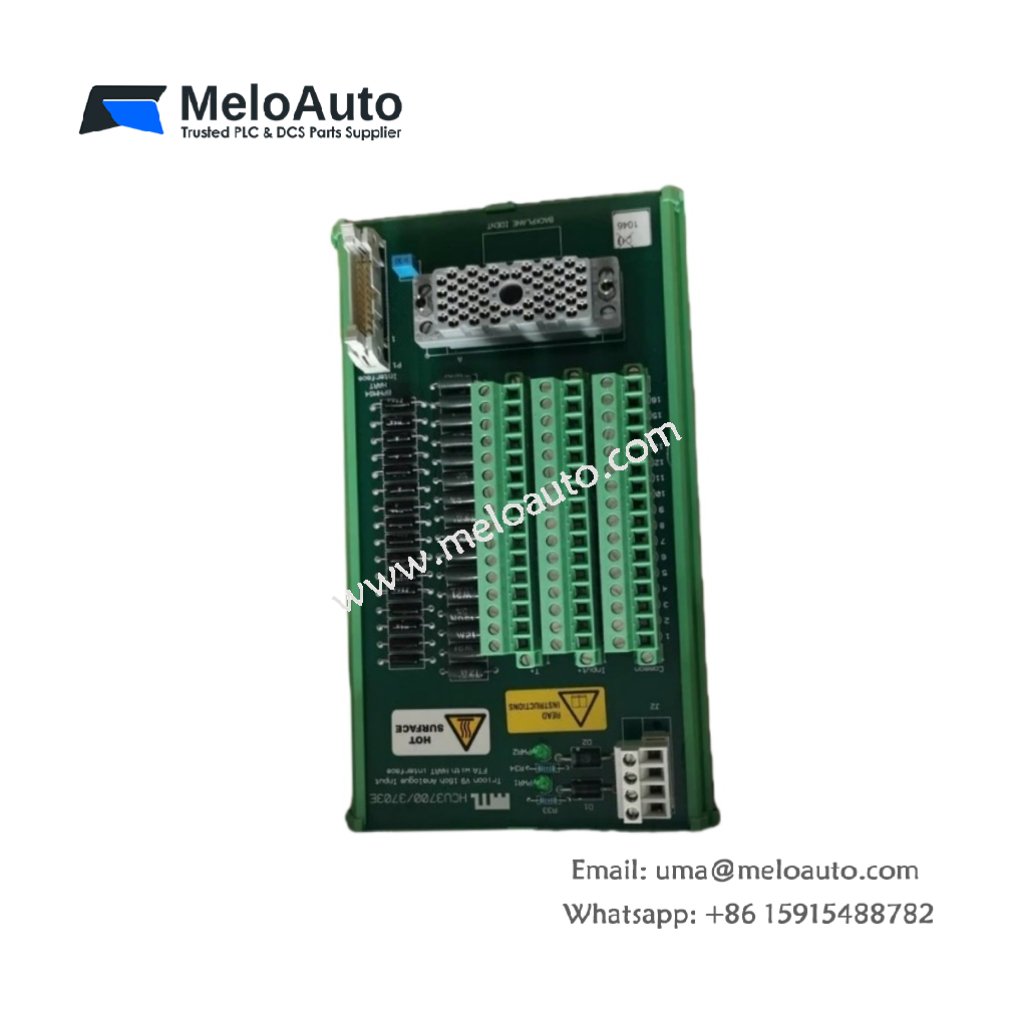

Triconex 3703E HCU3700 Isolated Analog Input Module

Overview

The Triconex 3703E HCU3700 is an isolated analog input module designed to integrate seamlessly into Triconex safety systems. It is ideal for industrial automation, offering high reliability and precision in critical applications. This module features a robust design for analog signal conditioning, ensuring it meets the stringent demands of process control, machine safety, and emergency shutdown systems.

Key Features

• Wide Operating Temperature Range: The module operates efficiently between -40°C and 70°C, ensuring stability in extreme industrial conditions.
• High Input and Output Resolution: It supports 16-bit resolution for both analog input and analog output, providing precise signal processing.
• Total I/O Points: The Triconex 3703E HCU3700 offers 96 I/O points, making it suitable for a variety of applications.
• Power Efficient: With a 25W power consumption, this module is designed to optimize energy use while maintaining high performance.
• Modbus TCP/P Protocol: Supports Modbus TCP/P communication, allowing seamless integration with existing systems.
• Flexible Voltage Range: It handles analog input and output voltage ranges of +10V, with a digital input voltage range of 0V to 24V DC and a digital output voltage range of 0V to 24V DC.

Technical Specifications

Applications

The Triconex 3703E HCPU3700 module excels in various industrial sectors, providing critical input and output processing for safety systems:

• Process Control: It connects to temperature sensors, pressure transmitters, and flow meters, ensuring accurate data for critical process control.
• Machine Safety: Ideal for monitoring machine status and controlling digital actuators in hazardous environments.
• Emergency Shutdown Systems: This module plays a crucial role in systems that initiate automatic shutdown procedures in case of emergencies.

Benefits

• High Reliability: The module offers excellent fault tolerance, ensuring continuous operation even in demanding industrial environments.
• Precise Signal Conditioning: With high-resolution analog input and output, it delivers accurate data for precise control and monitoring.
• Energy-Efficient Design: Despite its advanced functionality, the Triconex 3703E HCU3700 maintains low power consumption for sustainable operations.
• Seamless Integration: The Modbus TCP/P protocol ensures compatibility with a wide range of control systems, enhancing the module’s versatility.
