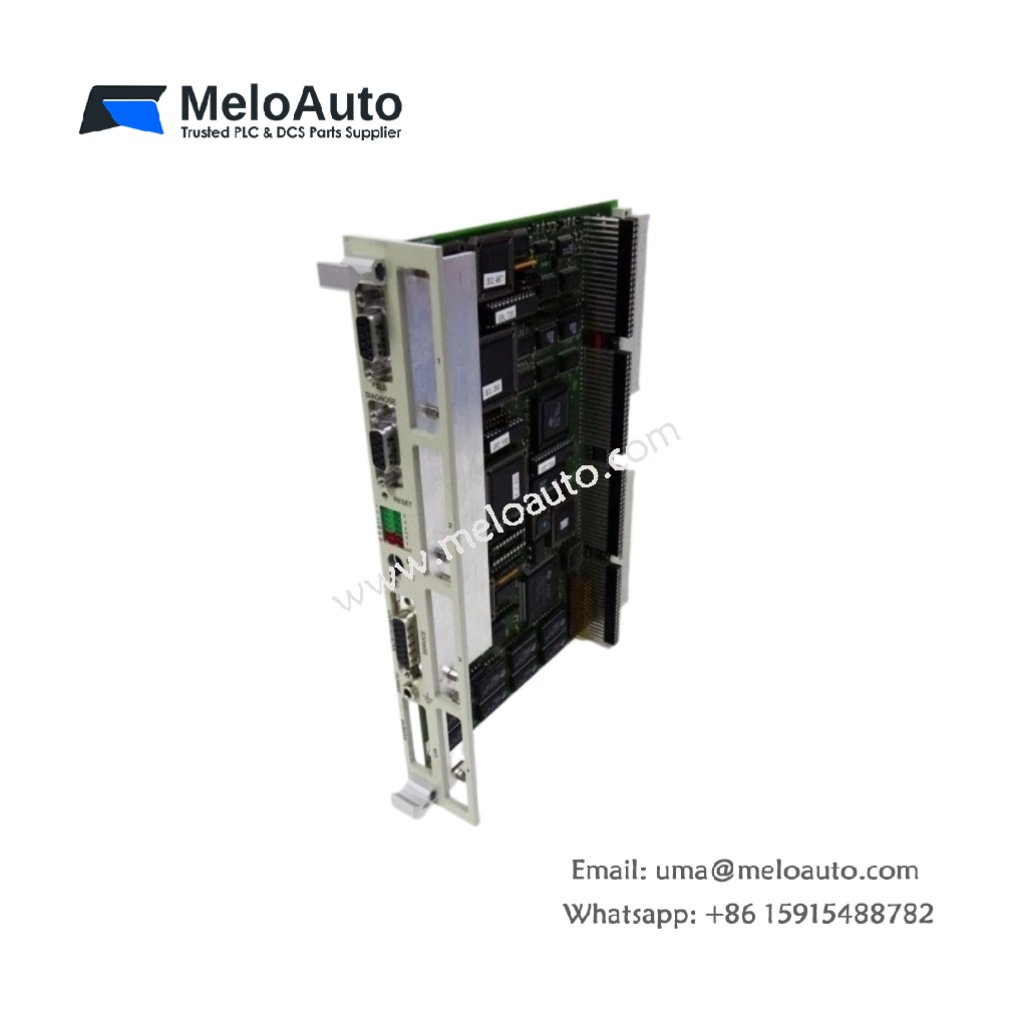

Siemens 9AC9100-0AA10 Main Module

This Siemens main module serves as the core processing unit for specific automation applications. The Siemens 9AC9100-0AA10 handles complex logic operations and data management tasks efficiently. Its robust architecture ensures reliable performance in demanding industrial environments. This module integrates seamlessly with existing Siemens control system components. The Siemens 9AC9100-0AA10 provides comprehensive diagnostic functions for system monitoring. Its design emphasizes processing power and connectivity in a compact form factor.

Physical Dimensions and Mounting Details

The module measures 232 mm in height and 25 mm in width. Its overall depth reaches 160 mm including the front connector. This unit weighs approximately 0.55 kilograms for stable installation. The housing features a rugged metal casing for enhanced durability. The Siemens 9AC9100-0AA10 supports standard DIN rail mounting within control cabinets. A 20-pin front connector handles all external signal and power connections. This connector accepts wire cross-sections from 0.5 mm² to 2.5 mm².

Processor and Memory Specifications

An integrated 16-bit microprocessor executes user programs with high speed. The processor operates at a clock frequency of 10 MHz for efficient processing. This module includes 64 KB of RAM for data storage and program execution. A separate 128 KB EPROM holds the firmware and system parameters. The Siemens 9AC9100-0AA10 features a lithium battery for RAM data retention. This battery provides backup power for approximately 3 years under normal conditions. An internal energy storage capacitor of 470 µF bridges short power interruptions.

Communication Interfaces and I/O Capabilities

This module offers one RS-232 serial port for programming and diagnostics. A second RS-485 port supports communication with remote I/O stations. The module includes 16 digital inputs for direct field device connection. It also provides 8 digital outputs for actuator control applications. The Siemens 9AC9100-0AA10 processes analog signals via an optional expansion interface. All inputs feature optocoupler isolation for electrical protection. Each output can drive loads up to 0.5 A at 24 V DC.

Detailed Specification Table

Parameter	Specification
Dimensions (H x W x D)	232 mm x 25 mm x 160 mm
Weight	Approx. 0.55 kg
Processor Type	16-bit microprocessor
Clock Frequency	10 MHz
RAM Capacity	64 KB
EPROM Capacity	128 KB
Backup Battery Life	Approx. 3 years
Energy Storage Capacitance	470 µF
Communication Ports	RS-232, RS-485
Digital Inputs	16 (isolated)
Digital Outputs	8 (0.5 A @ 24 V DC)
Connector Type	20-pin front connector
Wire Cross-Section	0.5 mm² to 2.5 mm²

Application and Configuration Notes

Install this module in a clean, dry location away from excessive vibration. Mount the unit vertically on a 35 mm DIN rail for secure attachment. Connect the programming device to the RS-232 port for initial configuration. Use the RS-485 interface for connecting expansion racks and I/O stations. The Siemens 9AC9100-0AA10 operates within a temperature range of 0°C to 55°C. Ensure adequate ventilation around the module for proper heat dissipation. Download the user program via the serial interface after establishing communication. Monitor the diagnostic LEDs for system status and fault indication. Regular battery replacement every two years prevents data loss during power outages.
