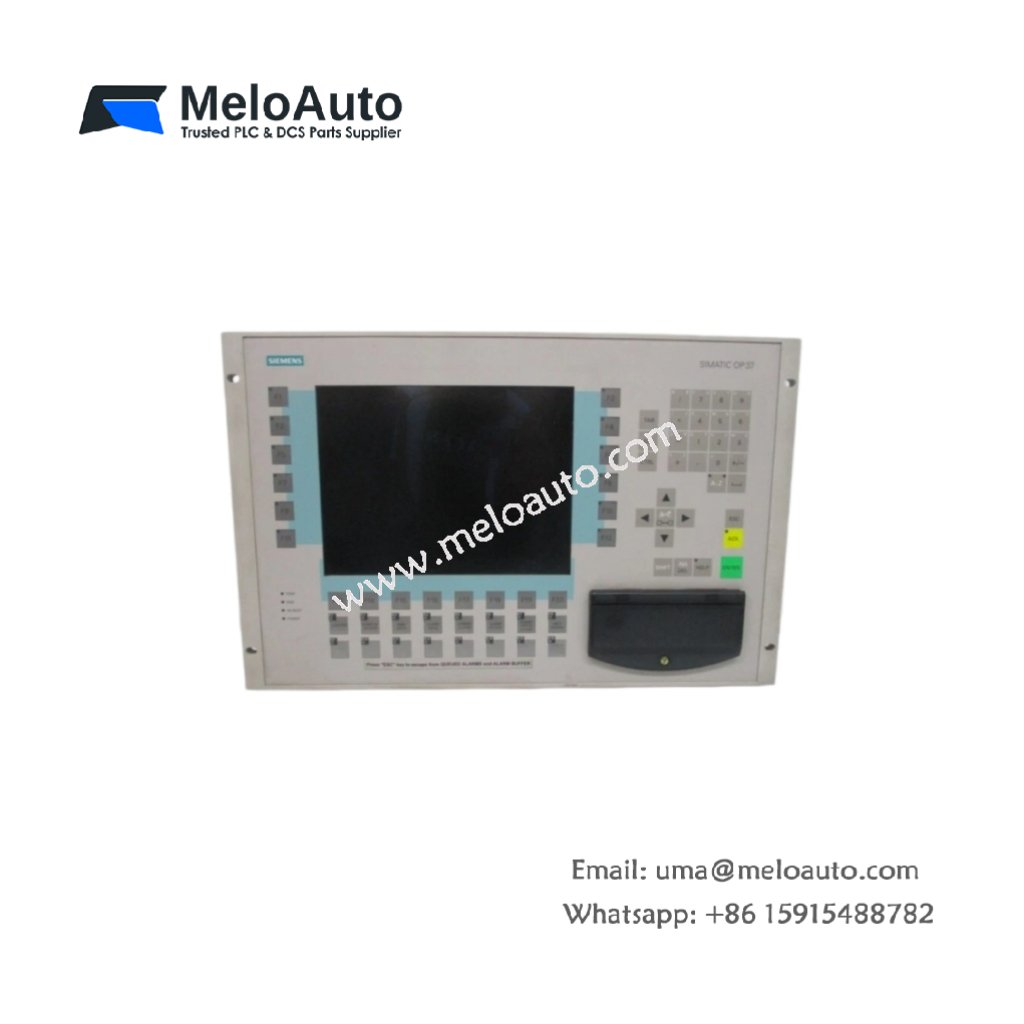

Siemens 6AV3637-1LL00-0AX0 Operator Panel

This Siemens operator panel provides an intuitive interface for machine monitoring and control tasks. The Siemens 6AV3637-1LL00-0AX0 features a high-resolution display for clear process visualization. Its robust membrane keypad ensures reliable data entry even in harsh conditions. This panel connects directly to SIMATIC S5 and S7 controllers via serial links. The Siemens 6AV3637-1LL00-0AX0 enables operators to view alarms and modify production parameters efficiently. Its ergonomic design reduces operator fatigue during extended shift operations.

Display Specifications and Physical Dimensions

This panel incorporates a 320 x 240 pixel graphic LCD with backlighting. The display area measures 115 mm by 86 mm for optimal viewing comfort. Its overall dimensions reach 310 mm in width and 210 mm in height. The depth measures 75 mm behind the mounting surface. This unit weighs approximately 2.2 kilograms for stable panel installation. The Siemens 6AV3637-1LL00-0AX0 includes 36 tactile membrane keys for operator input. Twelve programmable function keys sit along the bottom for custom commands.

Electrical Specifications and Interface Options

This panel draws a nominal current of 300 mA from a 24 V DC supply. Peak inrush current reaches 2.5 A for approximately 40 milliseconds. The device consumes about 7.2 W of power during normal operation. A built-in real-time clock maintains accurate time for event logging and alarms. The panel provides a 9-pin D-sub connector for RS-232 programming communication. A second 15-pin D-sub port handles RS-485/422 connections for longer distances. The Siemens 6AV3637-1LL00-0AX0 includes a 1 MB internal memory for application storage. This memory retains data using a lithium battery with a 4-year lifespan. An internal capacitor of 100 µF bridges brief power interruptions.

Environmental Conditions and Mounting Guidelines

Operating temperatures range from 0°C to 45°C for consistent performance. Storage temperatures extend from -20°C to 60°C without damage. Relative humidity tolerance reaches 85% with no condensation formation. The front panel meets IP65 protection against dust and water jets. The rear housing carries an IP20 rating for dry indoor environments. Mount this panel using the provided spring clips for a secure fit.

Detailed Specification Table

Parameter	Specification
Display Type	320 x 240 pixel graphic LCD
Display Area (W x H)	115 mm x 86 mm
Dimensions (W x H x D)	310 mm x 210 mm x 75 mm
Weight	Approx. 2.2 kg
Number of Keys	36 (membrane), 12 programmable
Supply Voltage	24 V DC
Current Consumption	300 mA (nominal)
Power Consumption	7.2 W
Communication Ports	RS-232 (9-pin), RS-485/422 (15-pin)
Internal Memory	1 MB
Backup Battery Life	4 years
Energy Storage Capacitance	100 µF
Operating Temperature	0°C to 45°C
Front Panel Protection	IP65
Rear Panel Protection	IP20

Application and Installation Advice

Install this panel in a clean, vibration-free location on the machine front. Cut a 290 mm x 190 mm opening in the control desk panel. Insert the unit from the front and secure it using the provided brackets. Connect the communication cables before applying power to the unit. The Siemens 6AV3637-1LL00-0AX0 supports configuration via the ProTool or WinCC software packages. Use the function keys for frequently performed tasks like start and stop. Regularly clean the membrane surface with a soft, damp cloth. Replace the backup battery every three years to prevent data loss.
