Precise Counting and Positioning

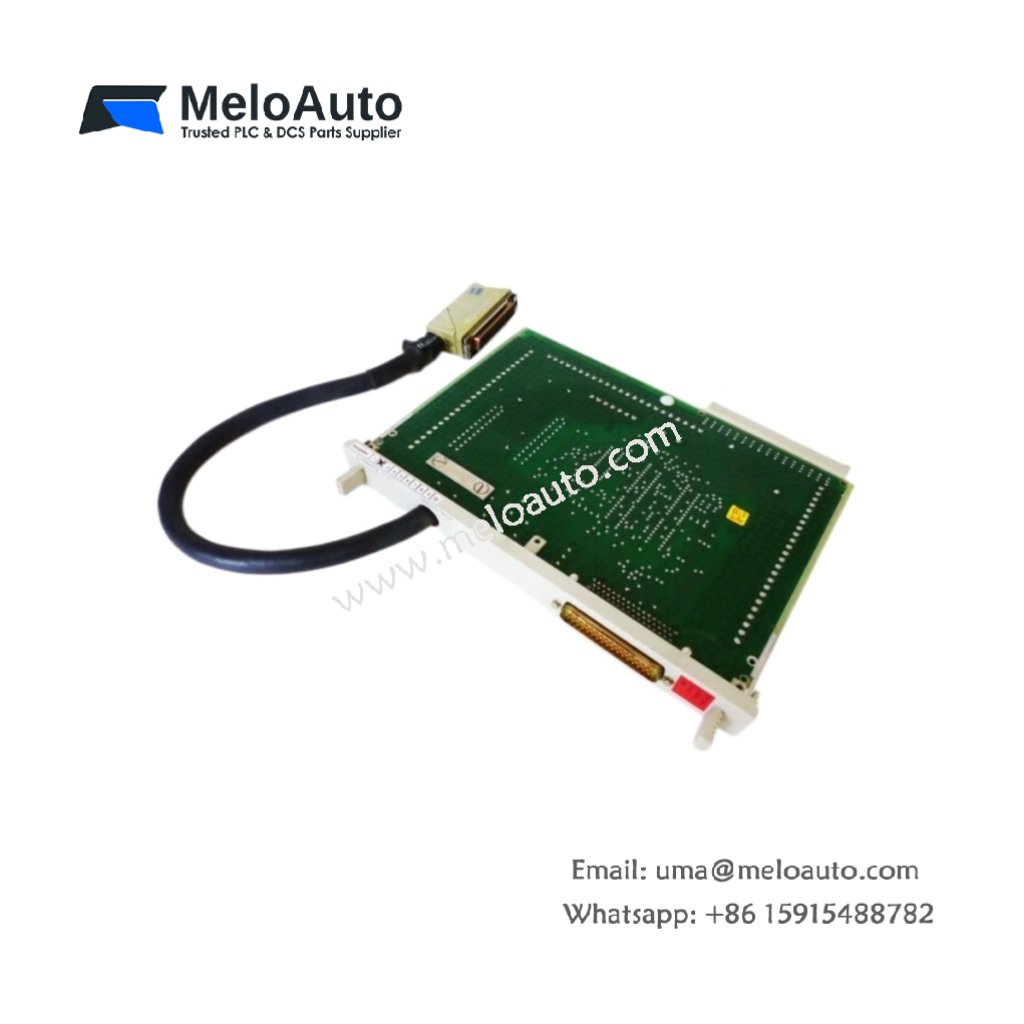

The 6ES5242-5AA21 functions as a dedicated counter module for the Siemens SIMATIC S5 programmable controller series. This unit provides high-speed counting capabilities for position feedback and event counting. It accepts pulse signals from incremental encoders, proximity switches, and other sensors. The module counts pulses independently without burdening the CPU. Consequently, it enables precise positioning and frequency measurement in real time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Series | SIMATIC S5 |
| Category | Counter Module |
| Part Number | 6ES5242-5AA21 |
| Number of Counters | 2 (independent) |
| Counter Resolution | 16-bit (0-65,535) |
| Maximum Count Frequency | 100 kHz per channel |
| Input Signal Types | 5 VDC differential, 24 VDC (sourcing) |
| Input Impedance | 10 kΩ (typical) |
| Output Functions | 2 digital outputs (per counter) |
| Output Voltage | 24 VDC (0.5 A) |
| Communication | S5 backplane bus |
| Power Supply | 5 VDC (backplane) + 24 VDC (outputs) |
| Power Consumption | 200 mA (5 VDC), 50 mA (24 VDC) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Standard S5 single-width |
| Weight | 0.4 kg |
| Status Indicators | LEDs (power, count direction, output status) |
Counting and Control Features
The 6ES5242-5AA21 supports multiple counting modes for various applications. These include up/down counting and frequency measurement. The module also features programmable output events based on preset count values. Additionally, the unit includes a latch function for capturing count values on external trigger events. The module’s high-speed inputs handle fast pulse trains without missing counts.
Application and Integration
This counter module suits positioning systems, web tension control, and flow measurement. The 6ES5242-5AA21 also applies to packaging counting and motor speed monitoring. It interfaces with incremental encoders, hall effect sensors, and proximity switches. Users can configure counting parameters through the STEP 5 software environment.
