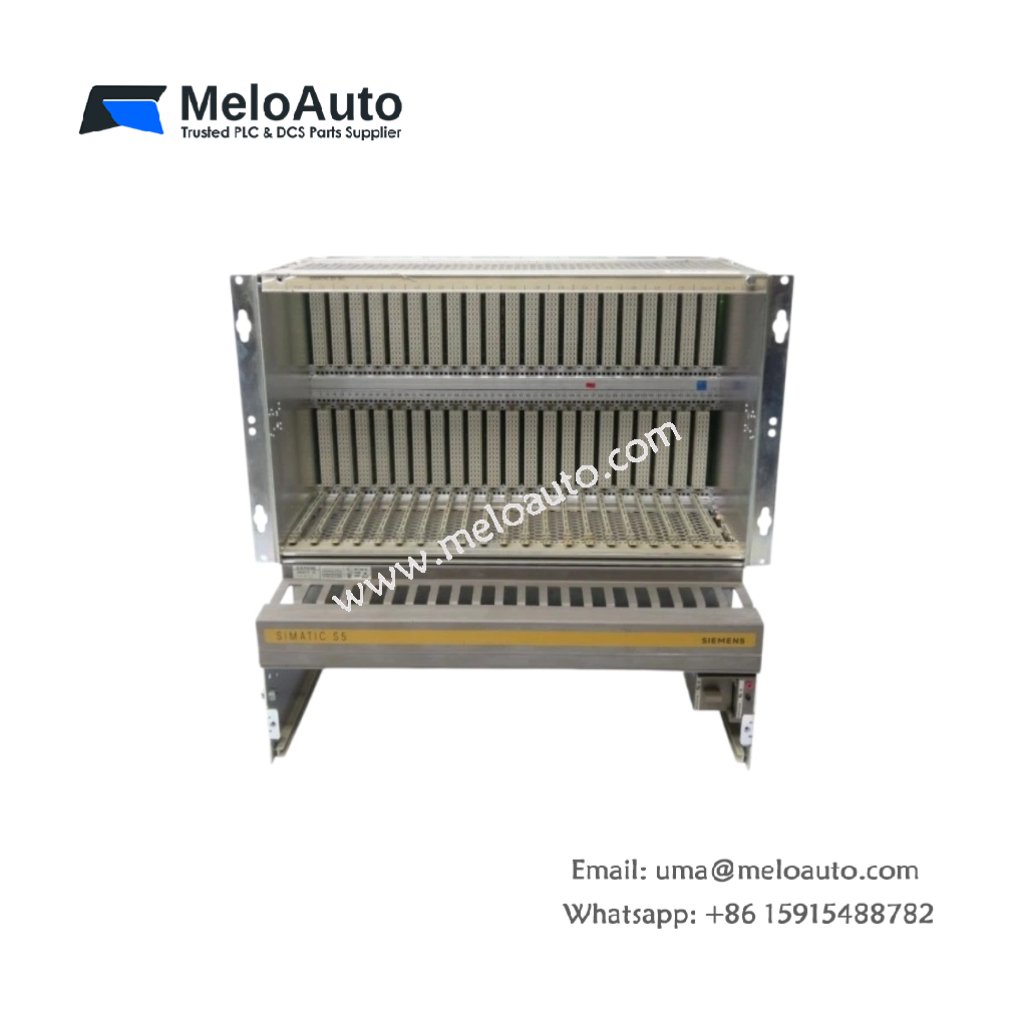

Siemens 6ES5185-3UA11 ER185U Rack

This Siemens expansion rack extends the I/O capacity of SIMATIC S5 automation systems. The Siemens 6ES5185-3UA11 accommodates up to 18 modules for flexible system growth. Its rugged frame provides stable mechanical support for all inserted components. This rack connects to the central controller via an interface cable. The Siemens 6ES5185-3UA11 enables distributed placement of I/O modules throughout the plant. Its design simplifies system expansion without modifying the existing central rack.

Physical Structure and Slot Configuration

This rack measures 482 mm in width and 262 mm in height. Its overall depth reaches 215 mm including the mounting hardware. This unit weighs approximately 4.0 kilograms for reliable installation. The housing features 18 slots arranged in a single horizontal row. Each slot accepts any standard S5 19-inch module format. The Siemens 6ES5185-3UA11 uses a parallel backplane for communication with the CPU. This backplane supports both analog and digital modules without restrictions.

Electrical Characteristics and Backplane Specifications

The backplane provides a 5 V DC supply rail to all connected modules. This rail delivers a maximum current of 15 A for power distribution. A separate 24 V DC rail offers up to 1.5 A for relay outputs. The backplane incorporates 12 address lines for module selection. Eight data lines handle bidirectional information transfer within the rack. The Siemens 6ES5185-3UA11 includes termination resistors for signal integrity. Three interrupt lines enable event-driven communication with the central unit. The backplane operates with a propagation delay of approximately 1.5 microseconds.

Connectors and Power Distribution

The rack features a 48-pin female connector for each module slot. This connector provides both signal and power contacts for module interfacing. Two additional connectors supply external 24 V DC power to the backplane. A front-mounted terminal strip facilitates main voltage distribution. The Siemens 6ES5185-3UA11 includes a 1500 µF energy storage capacitor. This capacitor maintains operation during brief power interruptions.

Detailed Specification Table

Parameter	Specification
Dimensions (W x H x D)	482 mm x 262 mm x 215 mm
Weight	Approx. 4.0 kg
Number of Slots	18
Module Compatibility	S5 19-inch modules
Backplane Type	Parallel (8-bit data)
5 V DC Supply Current	15 A (max)
24 V DC Supply Current	1.5 A (max)
Address Lines	12
Data Lines	8
Interrupt Lines	3
Slot Connector Type	48-pin female
Energy Storage Capacitance	1500 µF
Backplane Propagation Delay	Approx. 1.5 µs

Installation and System Integration

Mount this rack in a standard 19-inch cabinet using the supplied brackets. Position the rack horizontally to maintain proper airflow across modules. Insert the interface module in the far-left slot for system connectivity. Connect the external 24 V DC source to the designated terminal strip. The Siemens 6ES5185-3UA11 operates effectively between 0°C and 60°C. Ensure adequate clearance behind the rack for cable routing and management. Use the provided ground connection to protect against electrostatic discharge. Secure all modules with the locking screws after insertion. Regular inspection of the backplane contacts ensures long-term signal reliability.
