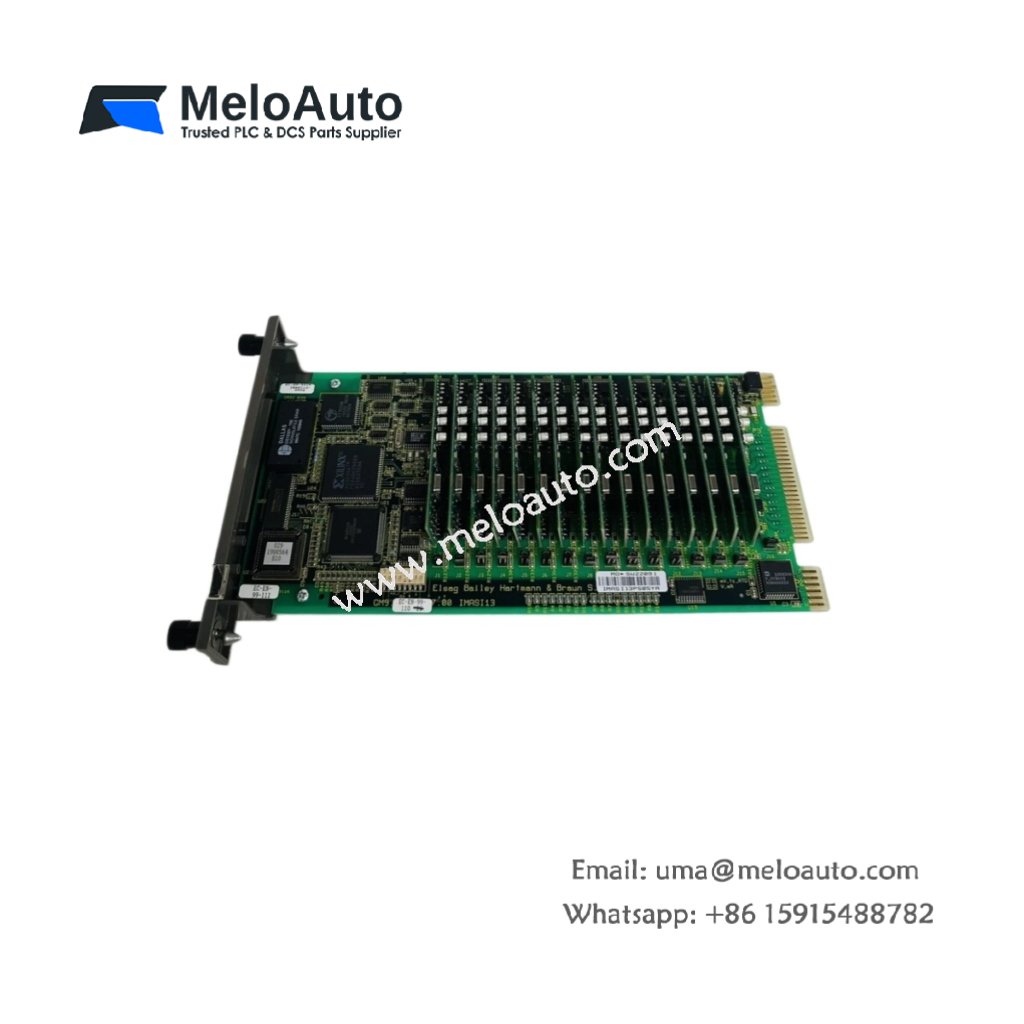

ABB Bailey PHBAIN2200S100 Analog Input Base

The ABB Bailey PHBAIN2200S100 provides mechanical support and backplane connectivity for analog input modules. This base mounts directly inside any Bailey INFI 90 system cabinet. It weighs approximately 1.2 kg and occupies a single slot width. Its dimensions measure 30.5 cm in length, 20.3 cm in width, and 4.5 cm in height.

Technical Specifications & Hardware Details

The PHBAIN2200S100 includes one 64-pin backplane connector for module interfacing. A separate terminal block offers 32 screw-type points for field wiring. This unit stores no energy internally because it contains no batteries or capacitors. Four main components form the complete assembly: the base frame, the backplane PCB, the terminal block, and the mounting bracket.

Parameter	Specification
Product Model	PHBAIN2200S100
Weight	1.2 kg (2.6 lbs)
Dimensions (L×W×H)	30.5 cm × 20.3 cm × 4.5 cm
Number of Components	4 assemblies (frame, PCB, terminal block, bracket)
Backplane Interface	Single 64-pin connector
Field Wiring Points	32 screw-type terminals
Energy Storage	None (fully passive design)
Mounting Type	Rack-mounted with four M4 screws

Installation and System Integration

You can install this base into any standard Bailey INFI 90 rack slot. The PHBAIN2200S100 connects directly to the system backplane through its 64-pin interface. For proper operation, mount the corresponding analog input module onto this base. The terminal block accepts wire gauges from 0.5 mm² to 1.5 mm².

Reliability and Maintenance

The passive design eliminates any internal heat generation from electronic components. Furthermore, this base operates reliably from -20°C to 70°C. It withstands 5g vibration across a 10 to 55 Hz range. Consequently, the PHBAIN2200S100 requires no maintenance beyond periodic cleaning. Just inspect terminal screws for tightness during routine checks.
