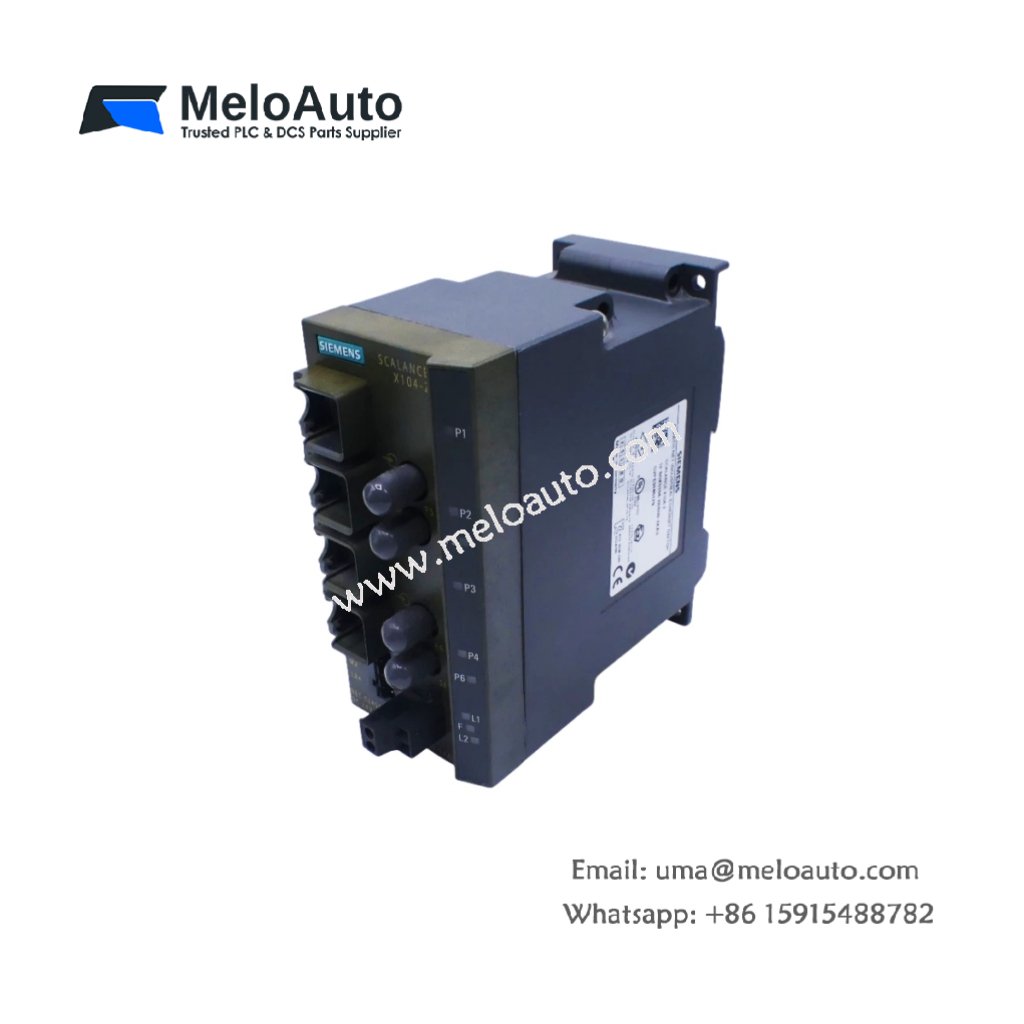

This switch module connects industrial Ethernet devices in SIMATIC NET networks. It provides four ports for reliable data exchange between controllers and HMIs. Therefore, this component suits factory automation and process control applications.
Physical Dimensions and Weight Specifications
The Siemens 6GK5104-2BB00-2AA3 features a compact metal housing for DIN rail mounting. Its width measures 60 mm for standard industrial enclosures. The total depth reaches 100 mm including the connector block. Consequently, technicians can install this module in tight cabinet spaces.
| Parameter | Specification |
|---|---|
| Product Model | Siemens 6GK5104-2BB00-2AA3 |
| Width | 60 mm |
| Height | 125 mm |
| Depth | 100 mm |
| Weight | 0.32 kg |
Interface Types and Connection Layout
The Siemens 6GK5104-2BB00-2AA3 provides four RJ45 Ethernet ports on the front panel. A separate 24V DC terminal block supplies power to the switch. The front panel carries LED indicators for link status and activity per port. Hence, operators can monitor network health at a quick glance.
Component Count and Switching Architecture
This switch module contains one main board with a 5-port switching controller. The board holds 128 KB of buffer memory for packet queuing. You will also find auto-negotiation circuits for speed detection. An onboard processor handles spanning tree and diagnostic functions.
| Technical Feature | Description |
|---|---|
| Port Count | 4 x RJ45 (10/100 Mbps) |
| Switch Type | Store-and-forward, unmanaged |
| Buffer Memory | 128 KB |
| MAC Address Table | 1024 entries |
| Housing Rating | IP20 |
Energy Storage and Power Consumption
The Siemens 6GK5104-2BB00-2AA3 draws 120 mA from the 24V DC supply. A small electrolytic capacitor provides 10 ms of ride-through during power dips. This storage prevents packet loss from brief voltage interruptions. The switch requires no external battery for operation.
Network Performance and Diagnostics
The switch forwards frames with a latency under 5 microseconds. It supports auto-MDI/MDI-X for straight or crossover cables. Users can connect this unit to PLCs, HMIs, and drives directly. This plug-and-play design requires no configuration for basic operation.
