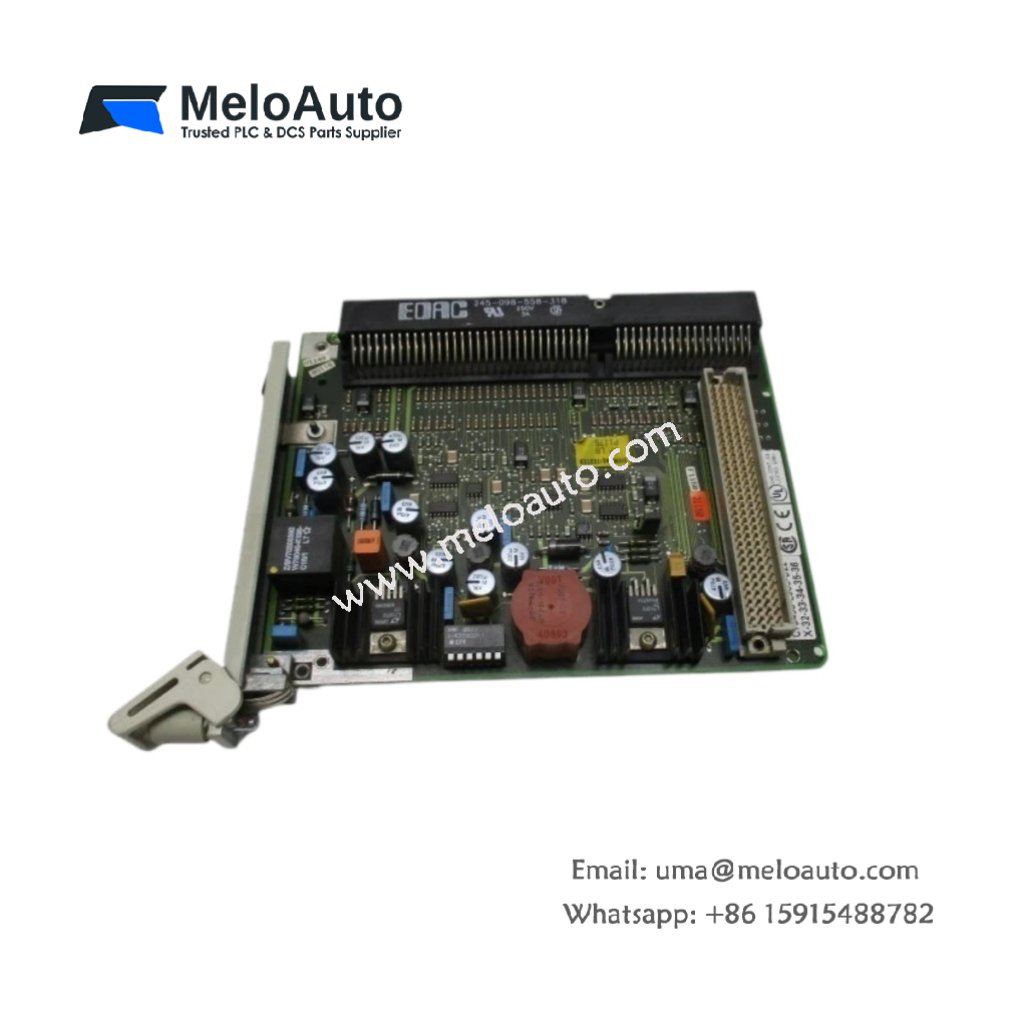

Siemens 6ES5581-0RA12 Slot Module

This slot module provides a mounting position for special function submodules. It houses daughter boards within the SIMATIC S5 rack environment. Therefore, this component enables custom I/O and specialized automation solutions.

Physical Dimensions and Weight Specifications

The Siemens 6ES5581-0RA12 occupies one standard slot in the S5 rack. Its housing measures 233 mm in depth for backplane connectivity. The module weighs approximately 0.42 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Siemens 6ES5581-0RA12 provides a 48-pin front connector for customer wiring. A 20-pin backplane connector supplies power and data from the CPU. The module includes an internal guide frame for daughter board insertion. Hence, users can install custom submodules without special tools.

Component Count and Structural Elements

This slot module contains a metal chassis with a daughter board connector. The chassis holds a 64-pin socket for submodule attachment. You will also find a removable front cover for access. An integrated grounding clip connects the housing to the rack earth.

Energy Storage and Power Distribution

The Siemens 6ES5581-0RA12 contains no active electronic components. It simply routes power and signals to the inserted submodule. The assembly can carry up to 2A across its internal traces. Therefore, this slot module supports most custom S5 submodule designs.

Installation and Application Flexibility

Users can plug this module directly into any standard S5 rack. The transparent cover allows visual inspection of the submodule inside. Engineers can develop proprietary circuits for this carrier format. This flexibility supports specialized automation tasks without full module redesign.
