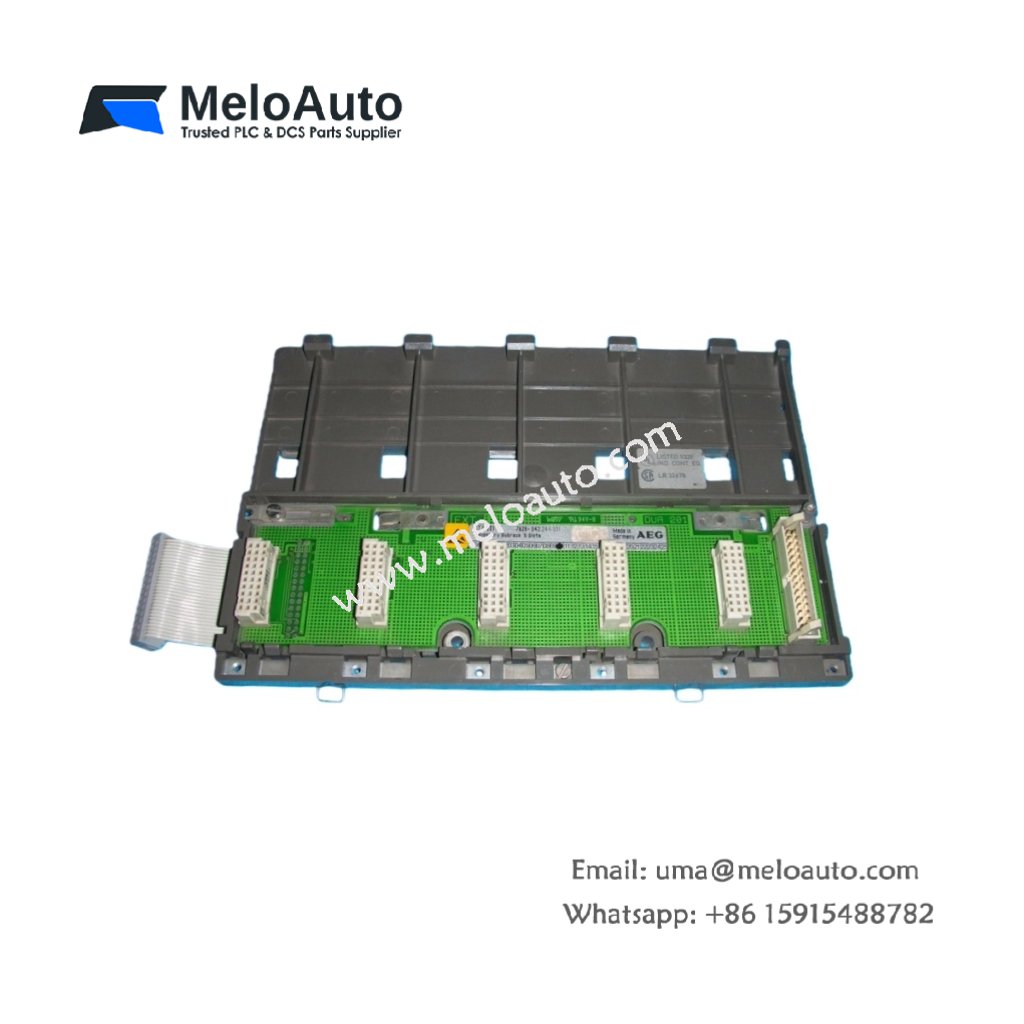

Schneider DTA 101 Modicon 984 Rack | Specifications & Features

Overview

The Schneider DTA 101 Modicon 984 Rack offers high flexibility and efficiency for modular automation systems. Designed for seamless integration with the Modicon 984 series, this rack system accommodates a range of modular components, ensuring superior performance in industrial automation applications. Its robust construction and versatile design make it an ideal choice for control systems that demand reliability, scalability, and ease of use.

Key Features and Advantages

Compact and Modular: The Schneider DTA 101 rack is designed to optimize space, with a modular structure that supports various system configurations.
High Performance: This rack supports high-speed communication and processing, ensuring seamless operation in complex automation systems.
Durability and Reliability: Built with high-quality materials, it offers long-lasting durability even in harsh environments.
Easy Installation: The DTA 101 rack is easy to install, requiring minimal setup time. It features simple wiring and connections, enhancing user efficiency.
Scalable Design: The modular design allows users to expand their system as needed, making it suitable for both small and large-scale automation systems.

Technical Specifications

Specification	Description
Model Number	DTA 101
Type	Modicon 984 Rack
Manufacturer	Schneider Electric
Rack Dimensions (W x H x D)	200 mm x 150 mm x 250 mm
Weight	2.5 kg
Mounting Type	Panel or DIN Rail Mounting
Power Supply Input	24V DC ± 20%
Number of Slots	10 Slots
Temperature Range	-10°C to +60°C
Storage Temperature	-25°C to +70°C
Protection Class	IP20 (Degree of Protection)
Communication Ports	1 x RS232, 1 x RS485
Max Power Consumption	15W

Applications and Use Cases

The Schneider DTA 101 Modicon 984 Rack is ideal for a variety of industrial and automation applications, including:

Control Systems: Suitable for modular control systems in manufacturing, process industries, and energy management.
Process Automation: Can be used for controlling machinery, conveyors, and robotic systems.
Data Acquisition: Perfect for systems that require data logging and real-time process monitoring.
Machine Integration: Easy integration with various machine components, making it highly adaptable for automation in different sectors.

Why Choose the Schneider DTA 101?

The Schneider DTA 101 Modicon 984 Rack is a top-tier solution for flexible, high-performance automation control. Its modular design, combined with high-speed communication and ease of installation, ensures efficient system operation. Whether used in industrial automation, process control, or data acquisition, it offers exceptional scalability and reliability. Schneider Electric’s commitment to quality and innovation makes this rack an excellent choice for modern automation systems.
