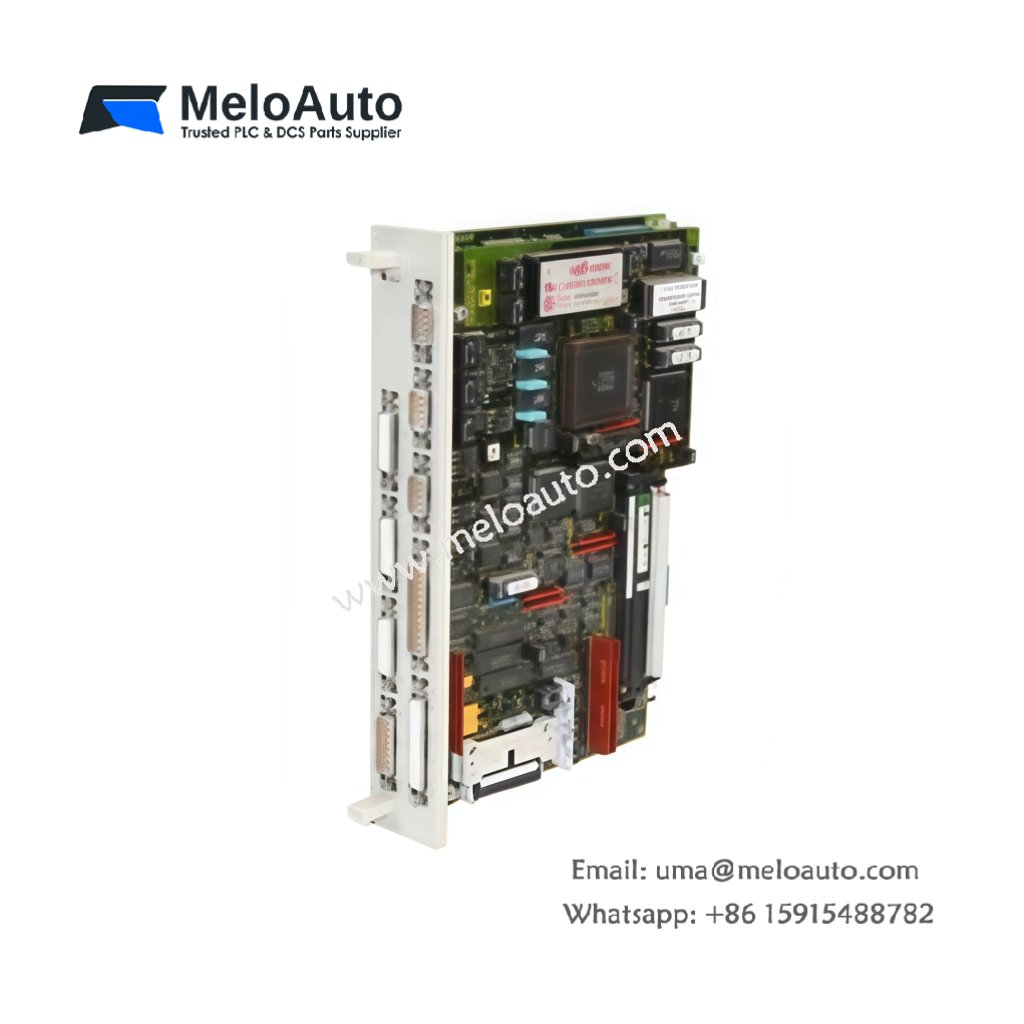

Siemens 6FM1763-3AB10 Fastener Control Unit

Engineered for SIMATIC S5 Automated Fastening Systems

This unit controls torque and angle for automated fastening tools. It provides precise tightening control for the Siemens 6FM1763-3AB10 system. You will find this controller in industrial assembly lines. Unlike basic torque controllers, this version supports four independent fastening channels. It monitors both torque and angle for each fastening operation.

Technical Specifications & Physical Dimensions

We designed this fastener control unit for high-precision assembly tasks. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	160mm x 125mm x 50mm
Total Weight	0.60 kg (600 grams)
Fastening Channels	4 independent channels
Torque Measurement Range	0-100 Nm (sensor dependent)
Angle Measurement Range	0-360 degrees
Torque Accuracy	±1% of full scale
Input Voltage	24V DC (20V – 30V)

Functional Architecture and Measurement Features

This control unit connects to torque and angle sensors on fastening tools. It uses four independent channels for multi-spindle applications. You can program different torque targets for each channel. Moreover, the unit includes real-time torque monitoring during tightening. This component detects cross-threading and under-torque conditions. Consequently, the controller rejects faulty fastenings before they reach final assembly.

Installation and Operational Guidelines

The Siemens 6FM1763-3AB10 samples torque data every 2 milliseconds. It provides 24V DC outputs for tool start and stop signals. You must calibrate each channel before production begins. Always use shielded cables for torque sensor connections. This practice prevents noise-induced measurement errors. Furthermore, the unit stores up to 100 tightening results per channel. This feature enables complete traceability for quality documentation.

Physical Characteristics and Environmental Limits

This fastener control unit has a rugged, industrial-grade plastic housing. Its substantial 0.60 kg weight reflects the four-channel measurement quality. The layout follows Siemens standard S5 module specifications. Therefore, it fits securely into any SIMATIC S5 rack. The module requires one slot width for installation. In addition, it maintains stable operation between 0°C and 50°C ambient temperature. You can store this unit safely between -20°C and 70°C.
