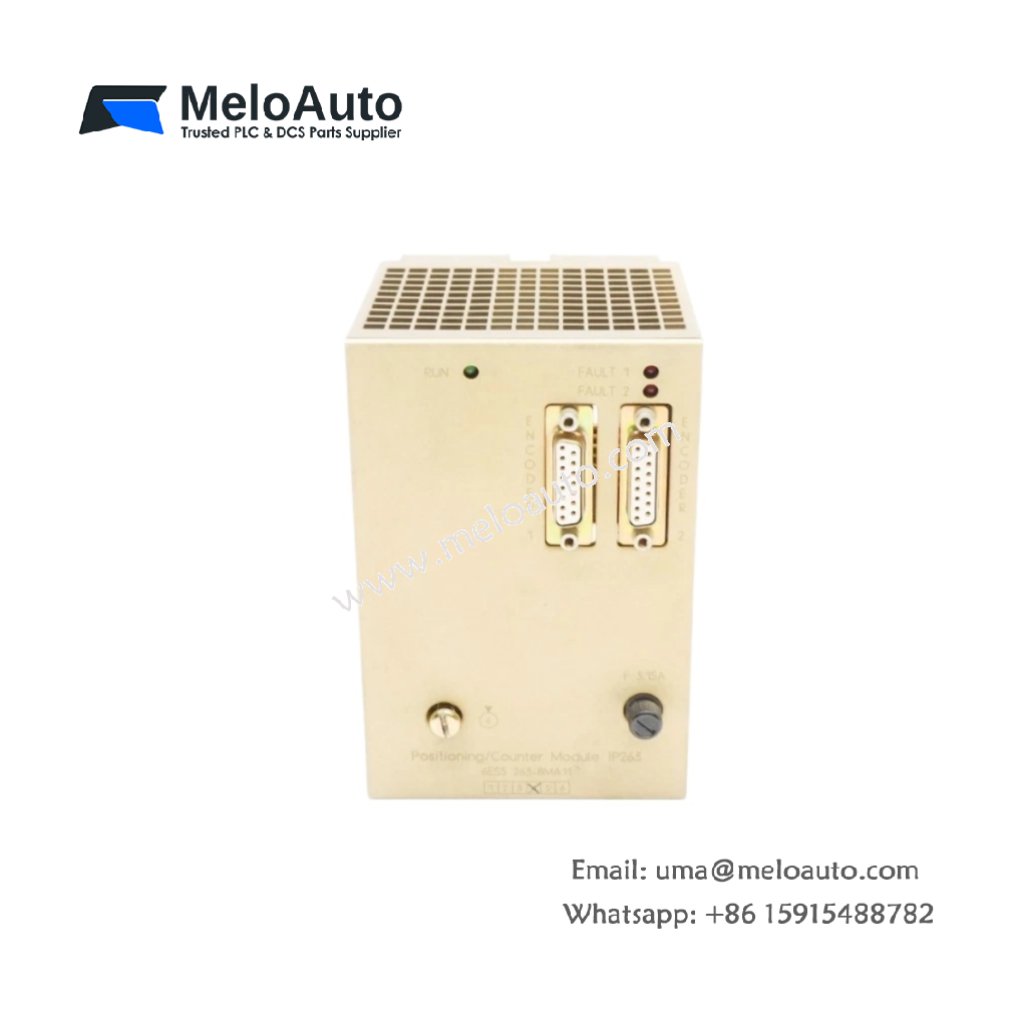

Siemens 6ES5263-8MA11 | IP263 Positioning Module

Intelligent Single-Axis Positioning for SIMATIC S5 Systems

The 6ES5263-8MA11 IP263 positioning module delivers intelligent single-axis closed-loop control for SIMATIC S5-135U and S5-155U programmable controllers. This smart peripheral module relieves the main CPU of complex positioning tasks through its onboard microprocessor. It handles demanding motion control applications such as point-to-point positioning, continuous path control, and electronic gearing. Consequently, this module serves as an ideal solution for upgrading legacy S5 systems in demanding industries like paper, textile, and metallurgy.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Line	SIMATIC S5 / IP263
Model	6ES5263-8MA11
Product Type	Intelligent Positioning Module
Compatible Hosts	S5-135U, S5-155U (with IM308/IM304 interface)
Control Axes	1 (independent intelligent control)
Encoder Type	Incremental Encoder (TTL/HTL)
Max. Count Frequency	≤ 500 kHz
Digital Outputs	2 control outputs per channel
Output Signal	±10V analog or Pulse/Direction
Position Resolution	Up to 31 bits internal
Power Supply	5 V DC (via backplane)
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +70°C
Weight	Approx. 0.50 kg
Product Status	Discontinued (Legacy)

Encoder Connectivity and High-Speed Counting

The 6ES5263-8MA11 connects directly to incremental encoders with either 24 V HTL or 5 V RS422 (TTL) signals. It processes up to two independent counting or encoder input channels, supporting both A/B/Z phase signals. With a maximum count frequency of 500 kHz, this module reliably captures high-speed motion feedback. Furthermore, it supports hardware reference point inputs and software homing functions for accurate axis referencing.

Autonomous Positioning and Control Modes

This module operates independently of the main CPU, executing complex positioning algorithms without burdening system scan cycles. It supports multiple control modes, including point-to-point positioning, continuous path control, electronic gearing, and electronic cam functions. The integrated PID algorithm maintains precise closed-loop control, compensating for load variations in real time. Users configure the module through the standard FB 263 function block in STEP 5 programming software.

Physical Characteristics and Installation

The 6ES5263-8MA11 occupies a single slot within the S5-135U or S5-155U rack. It requires a compatible 20-pin front connector for field wiring. The module’s IP20 protection rating suits installation in control cabinets, ensuring reliable performance in industrial environments.
