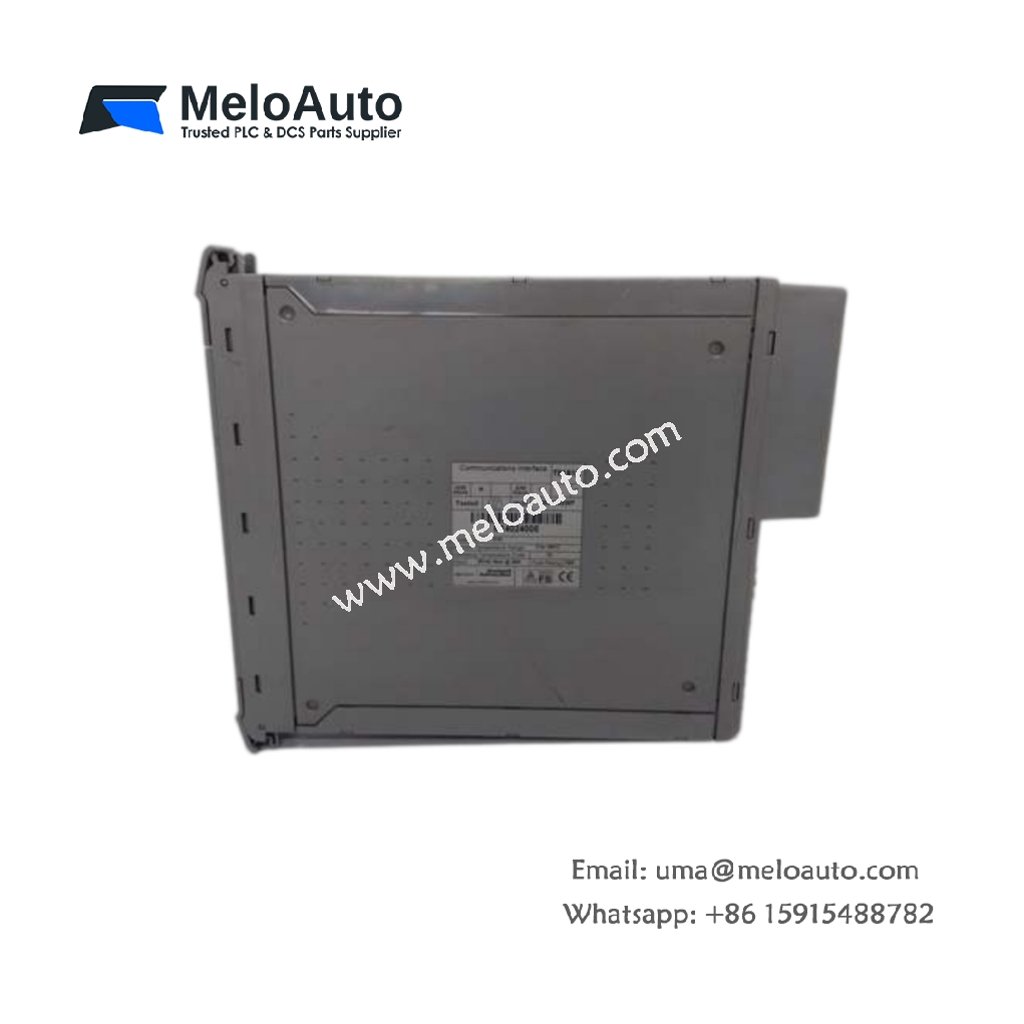

ICS Triplex T8151 Communication Interface Module

The ICS Triplex T8151 Communication Interface Module connects control systems to external networks with high reliability. This module supports critical industrial applications where downtime causes significant operational losses. Engineers choose it for its robust design and dependable data transfer capabilities.

Key Technical Specifications

The T8151 module delivers precise performance across multiple communication protocols. Its compact form factor allows easy installation in dense rack configurations.

Parameter	Specification
Module Type	Communication Interface
Dimensions	160 mm x 100 mm x 25 mm
Weight	0.35 kg
Interface Ports	2 x RS-232, 1 x RS-485
Connector Type	D-sub 9-pin
Data Transfer Rate	Up to 115.2 kbps
Power Consumption	5 W typical
Operating Voltage	24 VDC nominal
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity Range	5% to 95% non-condensing
Component Count	47 active components
Energy Storage	100 µF capacitor bank
Mounting	Rack-mount chassis
Isolation	500 VDC optical isolation

Communication Capabilities

The T8151 handles simultaneous data streams through its dual RS-232 ports. Meanwhile, the RS-485 port manages multi-drop networks for longer cable runs. Consequently, system integrators deploy this module in SCADA and DCS environments.

Power and Environmental Design

A 100 µF capacitor bank stabilizes voltage during transient load changes. Therefore, the T8151 maintains signal integrity even under fluctuating power conditions. Additionally, the 500 VDC optical isolation protects sensitive downstream equipment.

Installation and Compatibility

The module mounts directly into standard ICS Triplex racks without additional adapters. Furthermore, hot-swap capability reduces maintenance downtime during replacement. Operators appreciate the clear LED indicators for rapid diagnostics.
