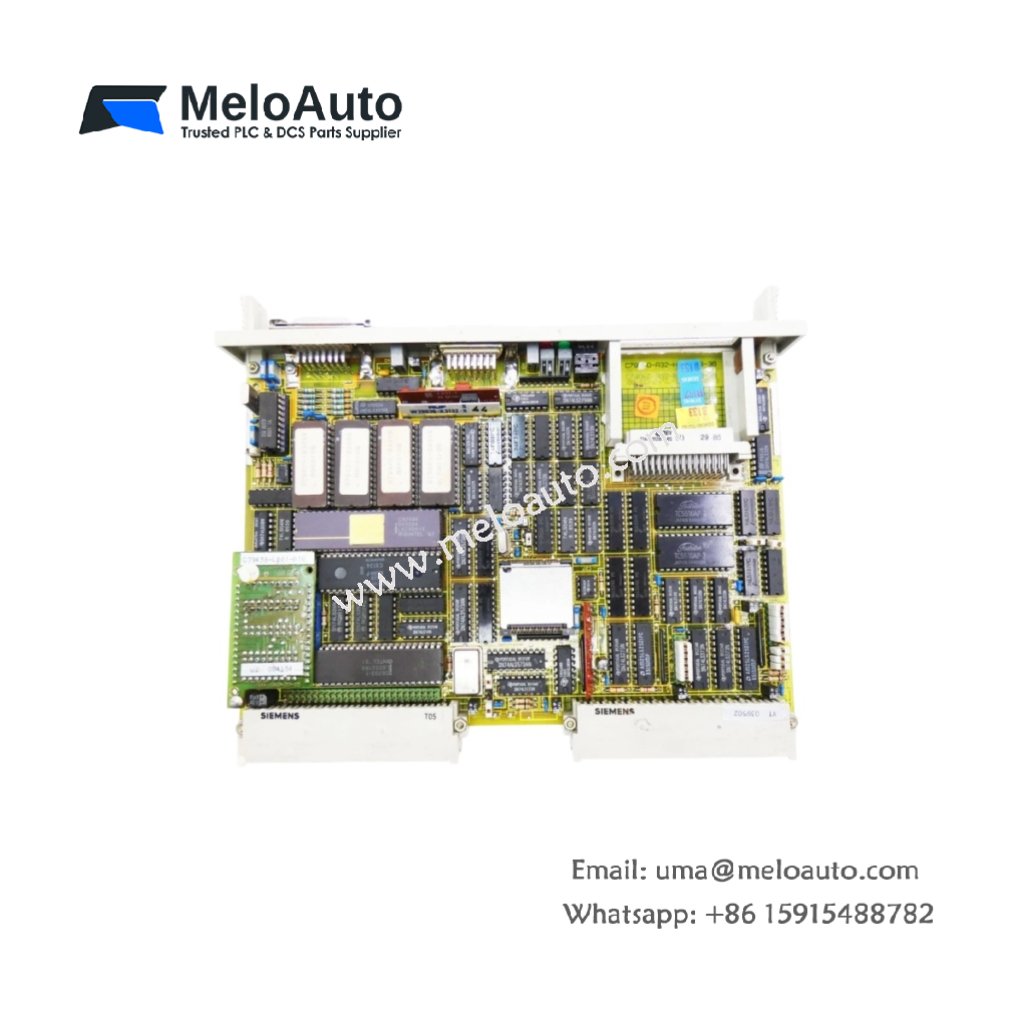

Siemens 6ES5535-3LB11 |Communication Processor

CP 535 Module for SINEC H1 Network Connectivity

The 6ES5535-3LB11 communication processor, also known as the CP 535, provides reliable network connectivity for SIMATIC S5-135U programmable controllers . This module connects S5 systems to SINEC H1 networks, enabling efficient data transfer across industrial automation infrastructures . Therefore, this module serves as a critical component for integrating legacy S5 controllers into modern networked environments.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Product Line	SIMATIC S5
Model	6ES5535-3LB11
Product Type	Communication Processor (CP 535)
Compatibility	SIMATIC S5-135U PLC
Network Protocol	SINEC H1
Status Indicators	LED for communication monitoring
Memory Slot	Yes (for enhanced functionality)
Weight	0.22 kg
Product Status	Legacy / Discontinued

Network Connectivity and Data Transfer

The 6ES5535-3LB11 facilitates communication between S5-135U controllers and SINEC H1 networks. This module supports efficient data transfer, making it suitable for applications requiring reliable network connectivity. Furthermore, LED indicators on the front panel provide straightforward monitoring of communication status . The module also features a memory slot that supports enhanced functionality for specific applications .

Physical Characteristics

Weighing only 0.22 kg, this communication processor features a compact design suitable for S5 rack installations . Its lightweight construction simplifies handling during installation and maintenance. The module fits standard S5-135U rack configurations.

Product Availability and Support

Distributors offer this legacy module in refurbished condition with warranty coverage. Many suppliers provide a minimum 1-year warranty on the 6ES5535-3LB11 . The module remains available through industrial automation distributors for maintaining existing S5 installations.
