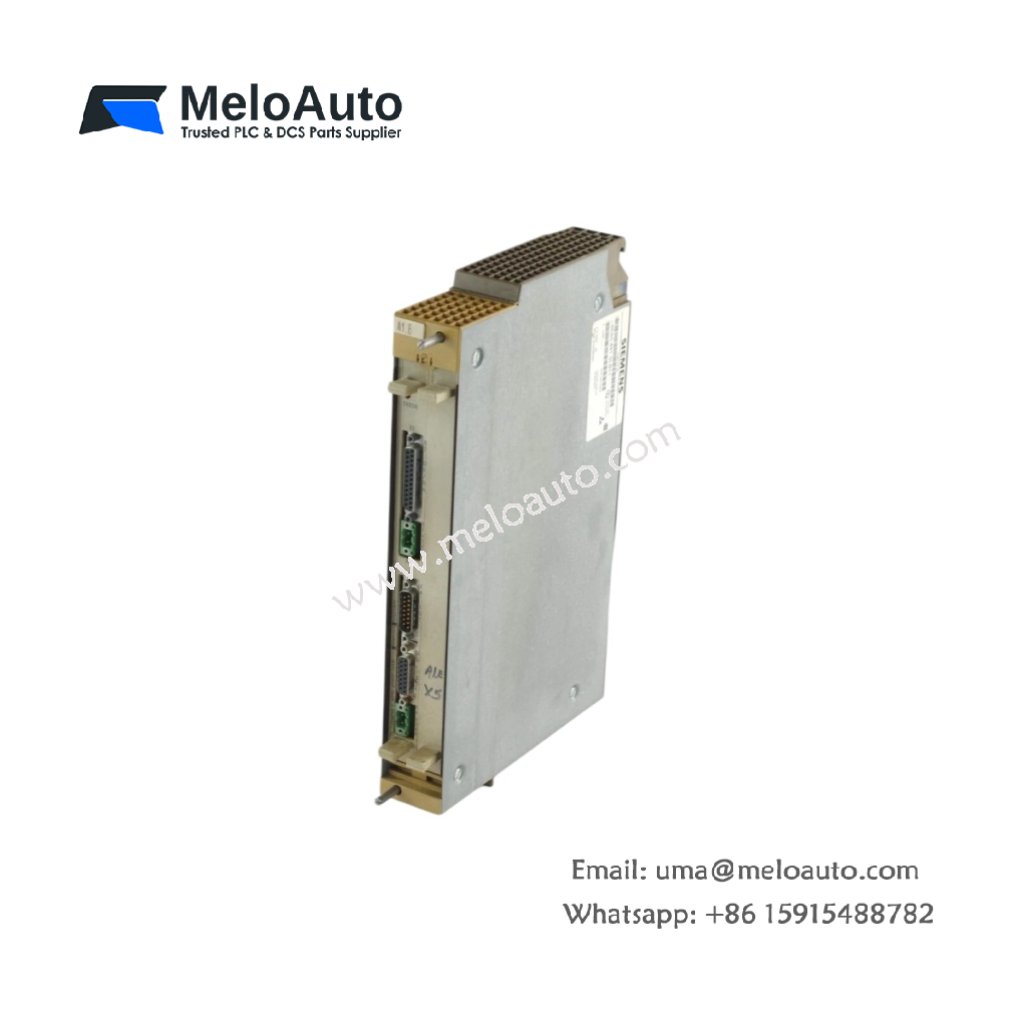

Siemens 6FM1707-3AA10 WF 707 CAM Controller Module

Precision Cam Control for SIMATIC S5 Systems

The 6FM1707-3AA10 cam controller module, known as the WF 707, provides precise position-based switching functions for the SIMATIC S5 automation platform . This module generates output signals based on programmable cam tracks, making it ideal for packaging, printing, and textile machinery. Consequently, this unit ensures accurate synchronization between machine cycles and control actions.

Technical Specifications

Cam Control and Programming Capabilities

The 6FM1707-3AA10 offers versatile cam control with 256 KB memory for complex cam profiles . This module handles up to 8 input channels and 4 output channels for flexible configuration . Furthermore, it supports various programming languages, including Ladder Diagram and Function Block Diagram . The built-in diagnostics tools enable real-time monitoring and proactive maintenance .

Physical Characteristics and Installation

This compact module fits standard S5 rack configurations with its 30mm width . Weighing approximately 0.4 kg, the unit is lightweight for easy handling . The 6FM1707-3AA10 operates reliably from -20°C to +60°C, ensuring performance in demanding industrial environments . Its IP20 rating provides protection against solid objects .

Product Status and Support

Siemens discontinued this module effective September 30, 2017 . However, the 6FM1707-3AA10 remains available through various industrial automation distributors. Many suppliers offer a 12-month warranty on these legacy modules .
