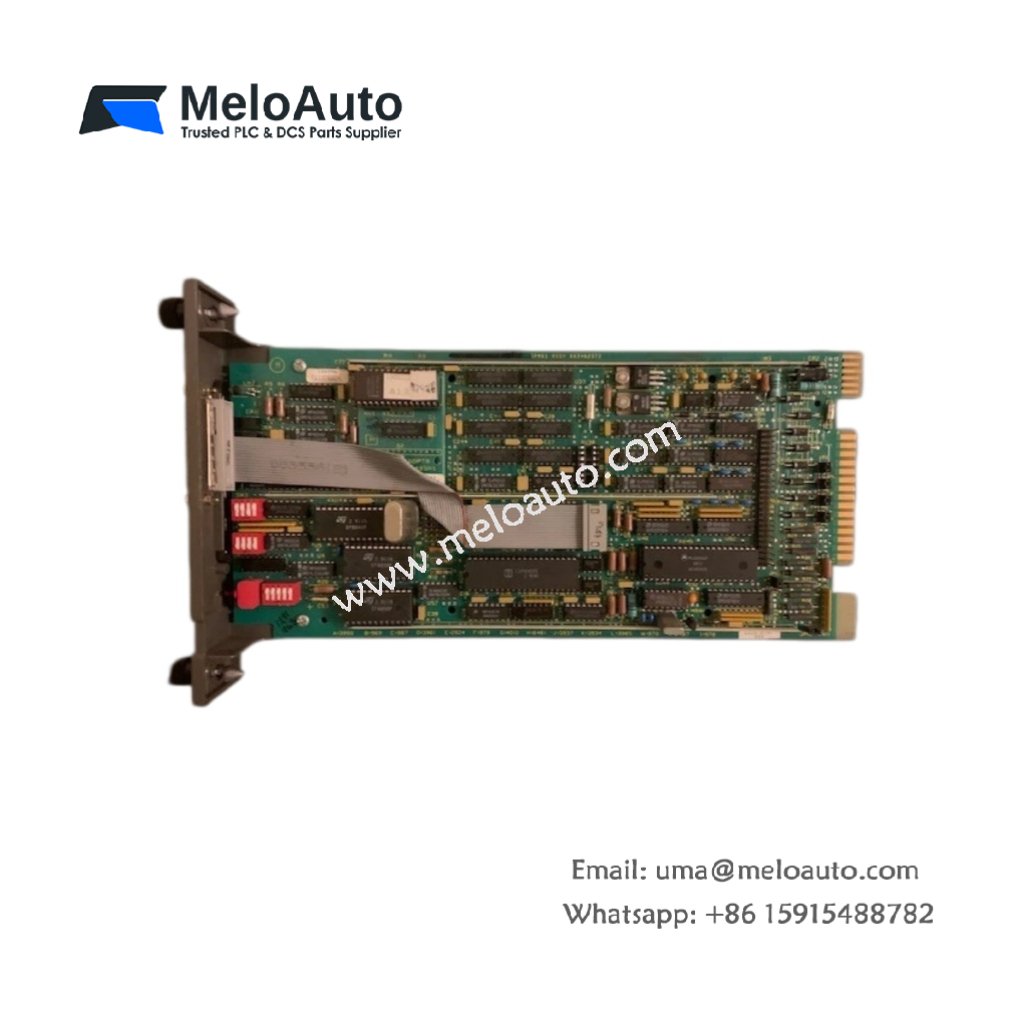

ABB Bailey IMSPM01 Serial Module

Physical Dimensions and Mounting Details

The ABB Bailey IMSPM01 adds serial communication capability to Bailey control systems. This module measures 140mm in height, 65mm in width, and 95mm in depth. You can mount this unit on a standard 35mm DIN rail inside any control cabinet. The module weighs 0.42 kilograms , allowing for quick and easy installation.

Internal Architecture and Component Density

The ABB Bailey IMSPM01 contains 168 individual components on its six-layer PCB. Two UART controllers handle asynchronous serial data transmission independently. Four RS-485 line drivers provide robust signal levels for long-distance communication. Additionally, six opto-isolators separate each serial port from the system backplane.

Energy Storage and Data Buffering

This serial module stores 22.4 joules across six electrolytic capacitors. This energy reserve powers FIFO data buffers for up to 40 milliseconds during power dips. The storage also maintains port configuration settings while the system recovers. Consequently, the module prevents data loss during brief supply interruptions.

Parameter	Value	Unit
Dimensions (H x W x D)	140 x 65 x 95	mm
Weight	0.42	kg
PCB layer count	6	layers
Total components	168	pieces
UART controllers	2	units
RS-485 line drivers	4	units
Opto-isolators	6	units
Electrolytic capacitors	6	units
Total energy storage	22.4	J
FIFO buffer hold time	40	ms
Number of serial ports	2	ports
Supported protocols	RS-232, RS-485	–
Maximum baud rate	115.2	kbps
Data bits options	7 or 8	bits
Parity options	None, even, odd	–
Stop bits options	1 or 2	bits
FIFO buffer size per port	16	bytes
Backplane current draw	180	mA

Interface and Connectivity Features

The ABB Bailey IMSPM01 provides two DB9 male connectors for serial device connections. A single 20-pin IDC header links the module to the Bailey backplane bus. You will also find one 6-pin terminal block for RS-485 termination resistors. The DB9 connectors follow the standard pinout for direct cable compatibility.

Serial Protocol and Configuration Options

You can configure each port independently for RS-232 or RS-485 operation. The module supports baud rates from 300 to 115,200 bits per second. You can select 7 or 8 data bits with various parity and stop bit combinations. Furthermore, the unit handles half-duplex and full-duplex communication modes without hardware changes.

Diagnostic and Status Indication

Eight LED indicators provide immediate feedback for port activity and module status. Green PWR confirms the presence of valid backplane power to the module. Amber TX blinks each time the module transmits data on a port. Red RX blinks for incoming data reception on either channel. Two additional LEDs show RS-485 carrier detect and module ready conditions.

Communication Features and Flow Control

This module supports hardware flow control using RTS and CTS signals. Software flow control using XON/XOFF characters also works for compatibility. The internal 16-byte FIFO buffers prevent data overrun at higher baud rates. You can also enable loopback mode for self-testing serial connections without external wiring.

Software Compatibility and Integration

The ABB Bailey IMSPM01 works with Modbus RTU master and slave configurations. You can also use this module for ASCII device communication with printers or barcode scanners. The module maps directly to controller memory addresses for simple programming. Furthermore, the unit supports peer-to-peer messaging between multiple Bailey controllers.

Environmental Specifications and Compliance

You can operate this serial module from 0°C to 55°C ambient temperature without derating. Storage temperature ranges from -40°C to 85°C for long-term preservation. Non-condensing humidity tolerance spans 5% to 95% for industrial environments. This module meets IEC 61131-2 standards for programmable controller equipment.
