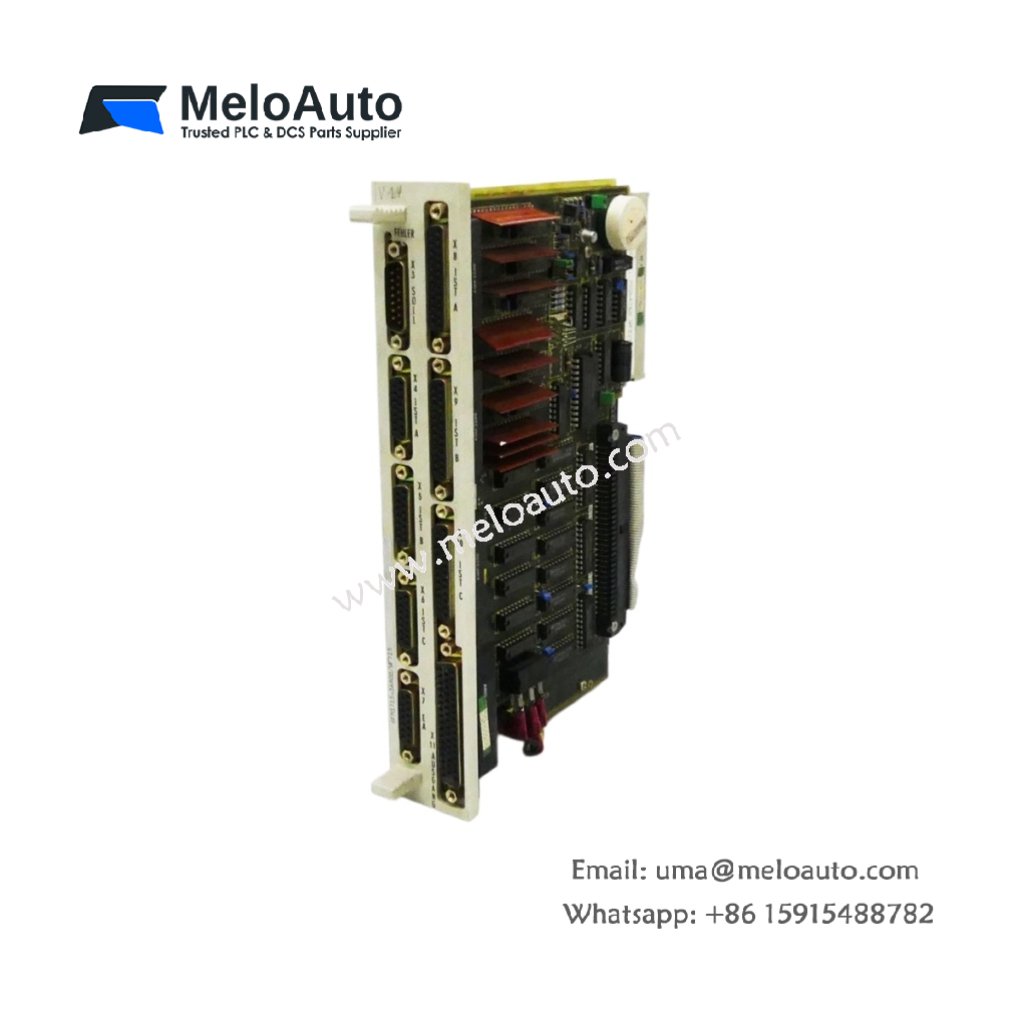

Siemens 6FM1715-3AA00 Controller Module SIMATIC S5

Technical Overview

The 6FM1715-3AA00 controller module functions as a dedicated motion control processor for SIMATIC S5 systems. This module handles complex positioning tasks for servo and stepper drives across multiple axes. It generates precise analog setpoints or digital pulse trains for smooth motor control. The onboard microprocessor executes motion profiles independently, offloading the central CPU from intensive calculations.

Key Technical Specifications

Parameter	Specification
Brand	Siemens
Model Number	6FM1715-3AA00
Product Type	Controller Module
Series	SIMATIC S5 (FM 1715)
Axis Control	Up to 3 axes (depending on configuration)
Output Signal	Analog setpoint (0 to ±10V) or digital pulse train
Feedback Interface	Incremental encoder (5V differential)
Control Modes	Positioning, velocity control, synchronous operation
Memory	Integrated RAM for motion parameters
Communication	Interface to S5 backplane bus
Approx. Weight	0.7 kg

Multi-Axis Motion Capabilities

The 6FM1715-3AA00 manages up to three axes of coordinated motion simultaneously. This feature makes it suitable for gantry systems, robotic arms, and multi-axis machine tools. Each axis operates independently or synchronously with others for complex motion sequences.

Flexible Output and Feedback Options

Users can configure the module’s output as either analog voltage or digital pulse signals. This flexibility accommodates both servo amplifiers with ±10V inputs and stepper drives requiring step/direction signals. The encoder interface accepts 5V differential signals for precise position feedback.

Application Suitability

This controller module excels in packaging machinery, pick-and-place systems, and CNC applications. Its robust design ensures stable operation in harsh industrial environments. Maintenance teams can quickly replace the module without reprogramming the entire system.
