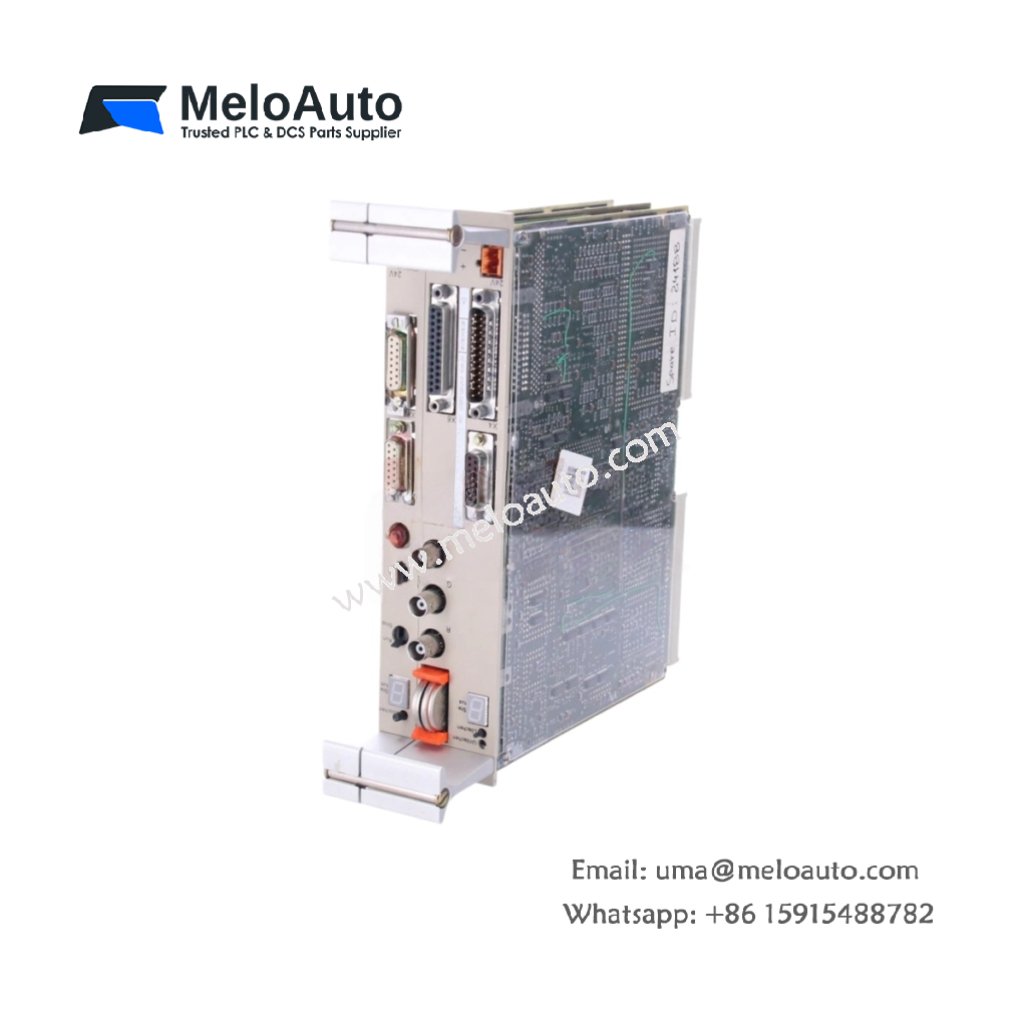

Siemens 6FM1481-3AB00 Functional Module

Versatile Function Module for SIMATIC S5 Systems

The 6FM1481-3AB00 functional module extends the capabilities of SIMATIC S5 programmable controllers with specialized processing functions. This module belongs to the S5 product family and provides additional functionality beyond standard I/O modules. It performs specific tasks such as positioning, counting, or closed-loop control . Consequently, this module offers a flexible solution for complex automation requirements.

Technical Specifications

Functional Capabilities and Applications

The 6FM1481-3AB00 module handles specialized tasks that standard I/O modules cannot perform. It works with SIMATIC S5 CPUs, communicating via the backplane bus for data exchange. This module supports applications such as position decoding, cam control, and high-speed counting . It proves particularly useful in packaging machines, handling devices, and storage systems. Furthermore, its modular design allows integration into existing S5 configurations without major system modifications.

System Integration and Programming

Users program the 6FM1481-3AB00 through STEP 5 software, the standard engineering tool for S5 systems . The module communicates with the CPU via the S5 backplane bus. This integration ensures reliable data exchange between the functional module and the main processor. The module also features diagnostic LEDs on its front panel, enabling quick status checks and troubleshooting.

Physical Characteristics

The 6FM1481-3AB00 fits standard S5 rack configurations, occupying one slot in the chassis. Its dimensions are consistent with standard S5 module formats. The module’s front panel includes LED indicators for operational status and diagnostics. This design simplifies module identification and system monitoring.

Product Status and Support

Siemens has discontinued the 6FM1481-3AB00 as part of the S5 lifecycle phase . However, users can still source this module through industrial automation distributors. Many suppliers offer refurbished units with warranty coverage . Users should consider migration paths to newer S7 platforms for new installations.
