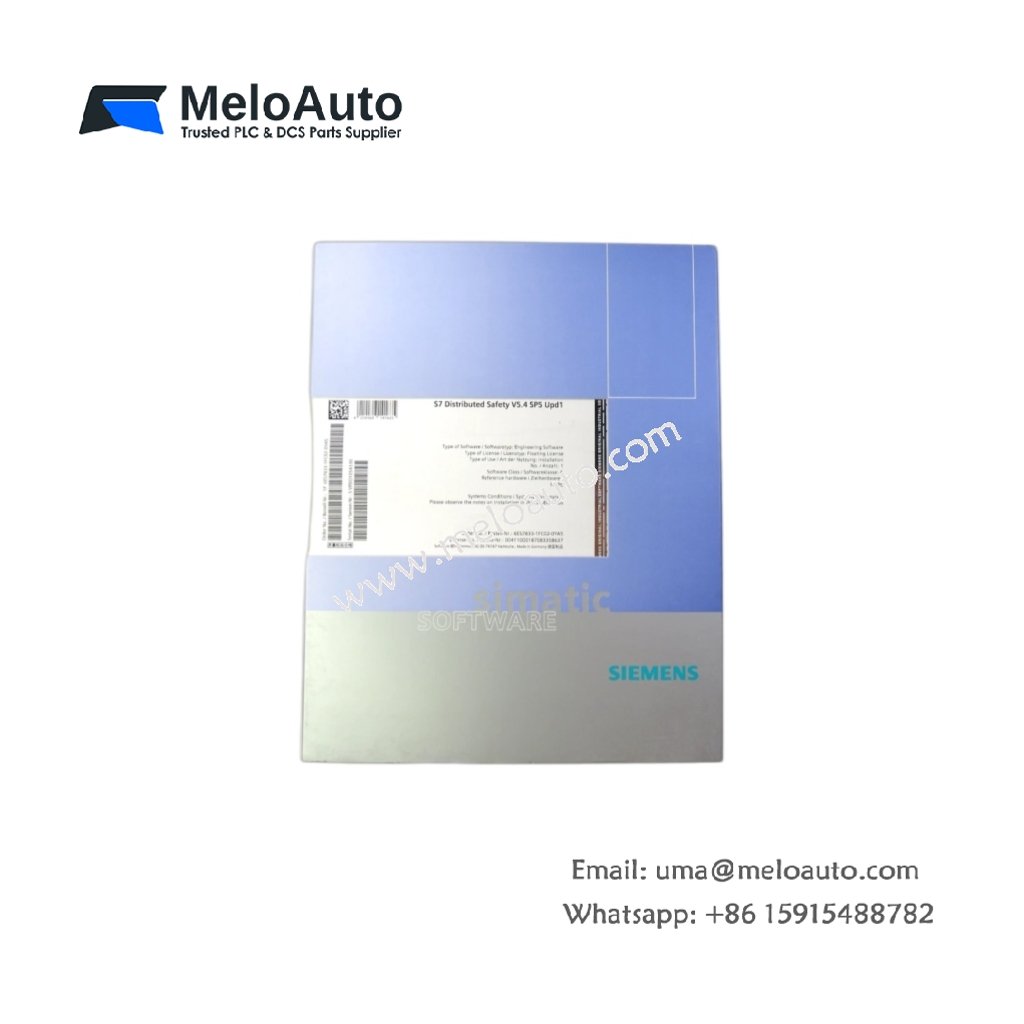

Siemens 6ES7833-1FC00-2YX0 Safety Tool

This safety programming tool enables the development of fail-safe applications for SIMATIC S7 controllers. The Siemens 6ES7833-1FC00-2YX0 provides certified functions for machine safety and process protection. It integrates seamlessly into the STEP 7 engineering environment for unified project handling. The tool supports both F‑CPU programming and safety-related I/O configuration. Its proven safety library contains TÜV‑approved blocks for emergency stop, light curtain, and two‑hand control.

System Requirements and Installation Environment

The software requires a Windows 10 Enterprise (64-bit) or Windows Server 2019 operating system. A minimum of 8 GB RAM ensures smooth performance for safety programming tasks. The 6ES7833-1FC00-2YX0 demands at least 15 GB of free hard disk space. Installation typically takes 30 minutes on a standard engineering workstation. The tool runs as an add‑on to an existing STEP 7 Professional installation.

Technical Specifications at a Glance

Specification	Detail
Software Type	Safety programming add‑on (F‑Systems)
Target Systems	S7‑1200 F, S7‑1500 F, S7‑300 F, S7‑400 F
Operating System	Windows 10 Enterprise 64‑bit, Windows Server 2019
RAM Requirement	8 GB minimum (16 GB recommended)
Hard Disk Space	15 GB minimum
Processor	Intel Core i5 or equivalent (2.5 GHz)
Safety Certification	TÜV‑approved (IEC 61508, ISO 13849)
Safety Integrity Level	SIL 2, SIL 3 / PL d, PL e
Programming Languages	F‑LAD, F‑FBD, F‑SCL (fail‑safe variants)
Safety Library	Pre‑certified function blocks
License Type	Per‑workstation floating license
Integration	STEP 7 Professional (required base)
Diagnostics	Safety program trace, F‑system status
Language Support	English, German, French, Italian, Spanish

Fail‑Safe Programming Capabilities

The Siemens 6ES7833-1FC00-2YX0 provides specialized fail‑safe versions of standard programming languages. Engineers use F‑LAD, F‑FBD, or F‑SCL to create safety logic with certified blocks. The tool enforces safety‑specific rules during compilation and online changes. Two‑channel processing and cross‑checking mechanisms ensure diagnostic coverage for critical functions. The integrated F‑library includes blocks for emergency stops, light barriers, and safety doors.

Safety Validation and Diagnostic Tools

The software includes a safety validation report generator for documentation purposes. Engineers can simulate fail‑safe programs offline without physical hardware. The safety program trace records time‑tagged events for detailed fault analysis. Online monitoring displays the safety status of each F‑I/O channel clearly. The tool performs automatic consistency checks between the F‑CPU and its configured I/O.

Licensing and Integration Details

The 6ES7833-1FC00-2YX0 operates as an add‑on to an existing STEP 7 Professional license. A floating license permits usage across multiple engineering stations flexibly. The tool integrates directly into the STEP 7 project navigation tree. Project data for safety and standard programs remain within a single environment. The software includes electronic manuals and context‑sensitive help resources.

Safety Standards and Compliance

This safety programming tool meets IEC 61508 and ISO 13849 certification requirements. It enables the creation of SIL 2, SIL 3, PL d, or PL e safety functions. The TÜV‑approved library reduces the engineering effort for safety validation. Program changes follow strict version control with automatic comparison functions. This tool ensures that safety programs comply with international machinery directives.
