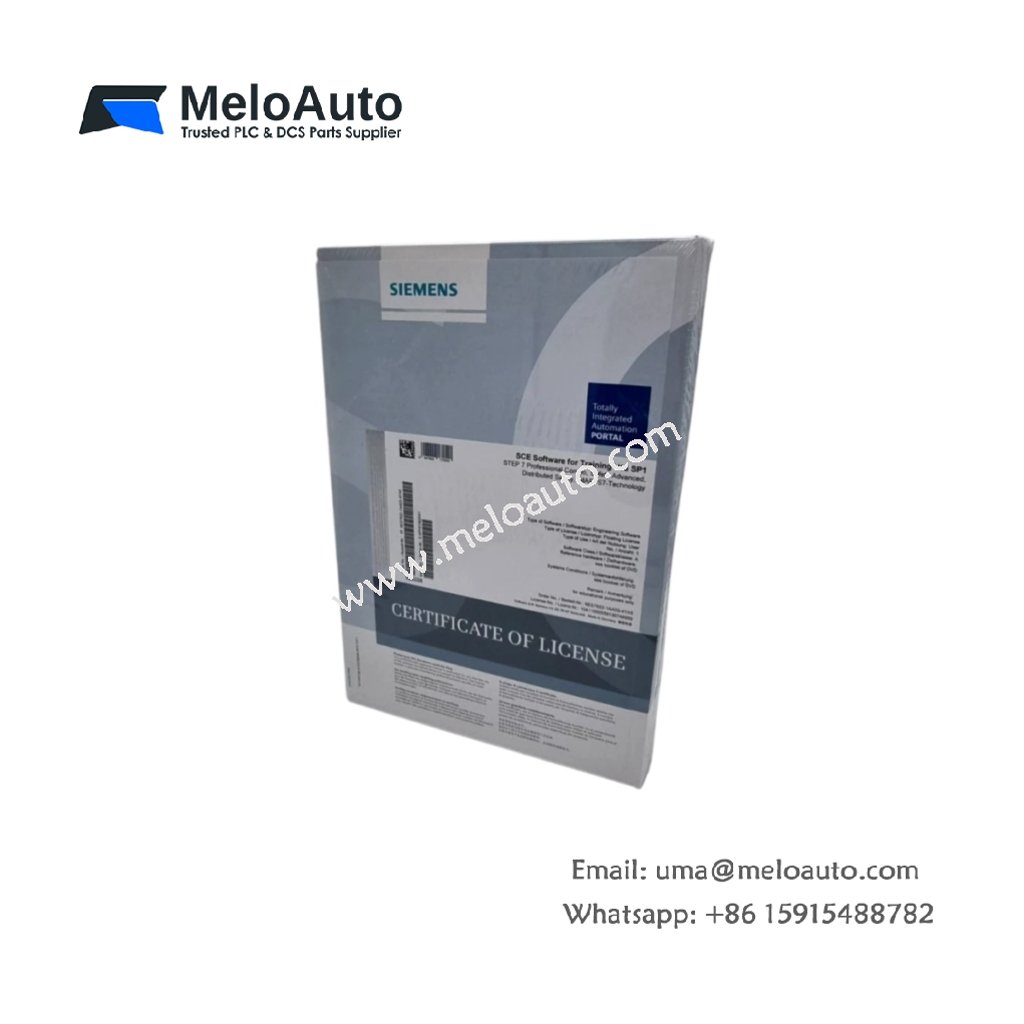

Siemens 6ES7823-1AE04-2YE6 WinCC Software

This engineering software creates powerful HMI and SCADA visualization solutions for industrial processes. The Siemens 6ES7823-1AE04-2YE6 provides comprehensive tools for designing operator interfaces and control screens. It supports both single-user and multi-station systems for flexible plant-wide deployment. The software integrates seamlessly with SIMATIC S7, PCS 7, and third-party controllers via OPC. This version includes advanced reporting, archiving, and alarm management functionalities for complex applications.

System Requirements and Installation Environment

The software requires a Windows 10 Enterprise (64-bit) or Windows Server 2019 operating system. A minimum of 16 GB RAM ensures smooth performance for large visualization projects. The 6ES7823-1AE04-2YE6 demands at least 50 GB of free hard disk space. Installation time averages approximately 60 minutes on a typical engineering workstation. The package supports both clean installations and upgrades from previous WinCC versions.

Technical Specifications at a Glance

Specification	Detail
Software Type	SIMATIC WinCC Engineering (HMI/SCADA)
Version	V7.5 (or latest compatible release)
Operating System	Windows 10 Enterprise 64-bit, Windows Server 2019
RAM Requirement	16 GB minimum (32 GB recommended)
Hard Disk Space	50 GB minimum
Processor	Intel Core i7 or equivalent (3.0 GHz)
Max Tags (Runtime)	Up to 262,144 (version dependent)
Communication Protocols	OPC DA, OPC UA, S7, PROFINET, Modbus TCP
License Type	Per-station engineering license
Runtime Architecture	Client/server, redundant pairs
Database	Microsoft SQL Server (included)
Archive Capacity	Up to 10,000 archived values per second
Reporting Tools	Integrated report designer
Multilanguage Support	12+ languages (including Asian)

HMI Design and Visualization Capabilities

The Siemens 6ES7823-1AE04-2YE6 includes a graphical editor for creating intuitive operator screens. Drag-and-drop functionality simplifies the placement of controls, indicators, and trends. The software supports dynamic object animations based on real-time process values. Engineers can configure faceplates for seamless access to PLC data blocks. The library manager stores and reuses pre-defined graphic objects efficiently.

Communication and Integration Features

Native drivers connect directly to SIMATIC S7-1200, S7-1500, S7-300, and S7-400 controllers. The integrated OPC UA server enables secure communication with third-party devices and systems. The software supports PROFINET and Modbus TCP for flexible network integration. Redundant communication paths ensure continuous data availability during network interruptions. The system includes a connection diagnostic tool for troubleshooting network issues.

Data Management and Archiving

The 6ES7823-1AE04-2YE6 stores process data in a Microsoft SQL Server database for long-term analysis. Users can configure archiving cycles from 1 second to 24 hours per data point. The archive manager provides tools for backup, restore, and data export functions. Compressed storage reduces disk space requirements for historical records. The software supports process data trending with custom time ranges and statistical calculations.

Licensing and Support Information

This package functions as a full engineering license for WinCC visualization projects. The license enables multiple engineering stations in a team environment. You receive access to Siemens support portals and update services. A License Key (C-key) binds the software to a specific workstation. The product includes electronic documentation and online help resources.
