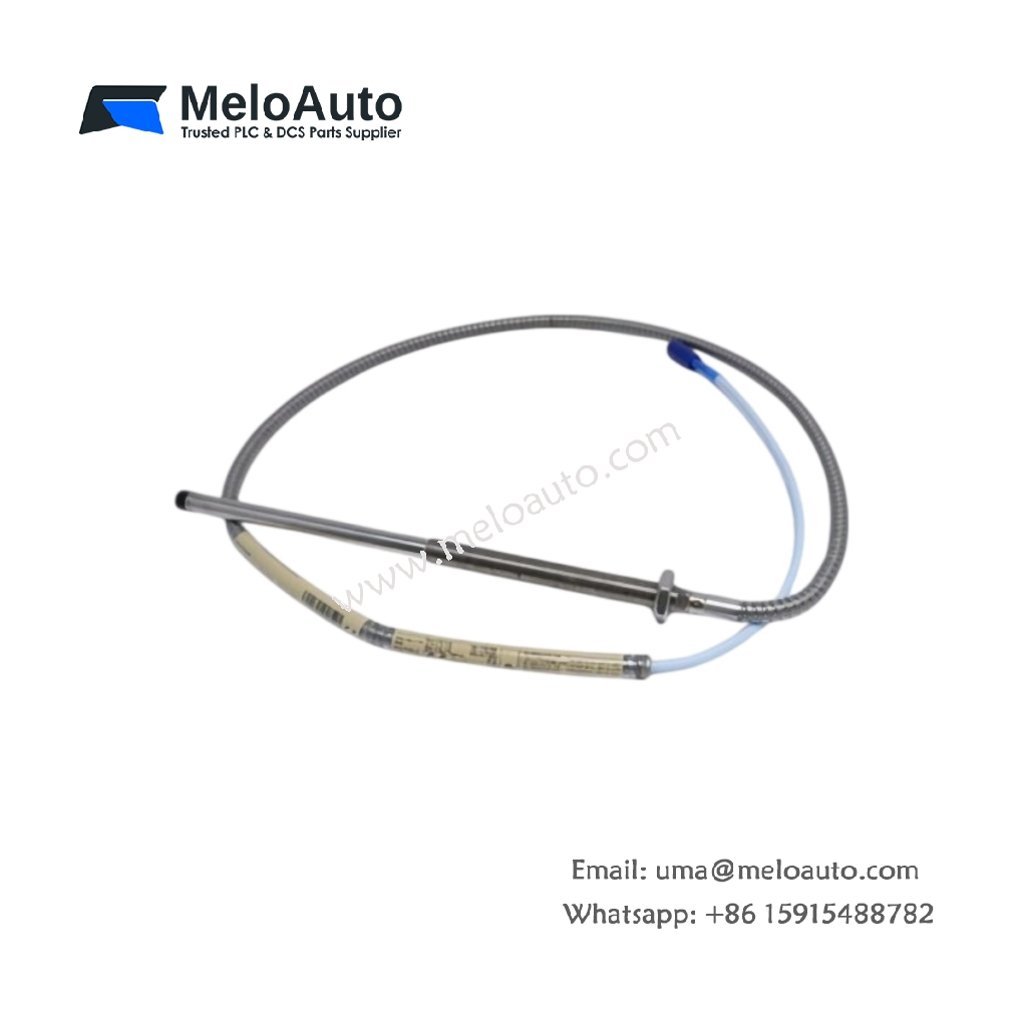

Bently Nevada 330104-00-07-50-02-00 Proximity Probe

The Bently Nevada 330104-00-07-50-02-00 is a proximity probe from the 3300 XL series. It measures radial shaft displacement on turbines, compressors, and large rotating machines. Plants deploy it for continuous protection and condition monitoring programs. Consequently, it delivers accurate readings in harsh industrial environments.

Key Technical Specifications

Parameter	Specification
Model	Bently Nevada 330104-00-07-50-02-00
Category	Proximity Probe
Probe Tip Diameter	8 mm
Total Length	0.7 metre
Connector Type	02 style coaxial connector
Weight	Approximately 200 g
Linear Range	2 mm (80 mils)
Sensitivity	7.87 mV/µm (200 mV/mil)
Frequency Response	0 to 10 kHz
Operating Temperature	-35 °C to +177 °C
Output Impedance	50 Ω nominal
Housing Material	316L stainless steel

Component Structure and Interface

Each assembly contains a probe tip, cable, and coaxial connector. The pairs with 3300 XL drivers for signal demodulation. Moreover, the stainless steel body resists corrosion and mechanical wear. The shielded cable minimises electrical noise from nearby drives and motors.

Power and Signal Conditioning

This probe holds no internal energy storage elements. Instead, it depends on an external proximity driver for excitation. The driver supplies -24 VDC and processes the returned signal. As a result, the system outputs voltage proportional to shaft position.

Mounting and Calibration Notes

Technicians mount the probe through a threaded hole or bracket. Target material selection matters, because different alloys alter sensitivity readings. Therefore, always confirm calibration against the actual shaft alloy. Additionally, keep cable runs short to limit signal attenuation.
