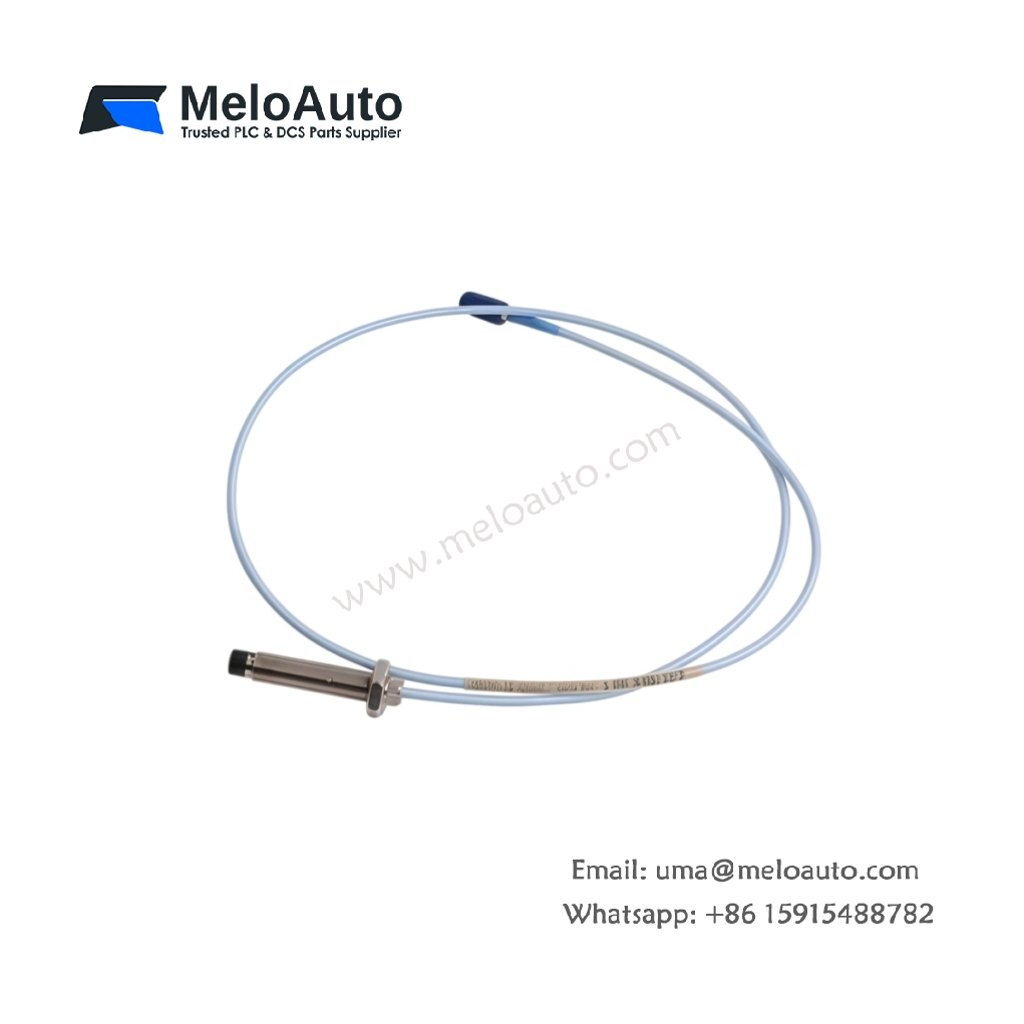

The Bently Nevada 330104-00-08-10-01-05 is an 8 mm proximity probe from the 3300 XL series. It measures radial shaft displacement on turbines, compressors, and large rotating machines. Plants deploy it for continuous protection and condition monitoring. Consequently, it delivers accurate readings in harsh industrial environments.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330104-00-08-10-01-05 |
| Category | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 1.0 metre |
| Connector Type | 01 style coaxial connector |
| Weight | Approximately 250 g |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35 °C to +177 °C |
| Output Impedance | 50 Ω nominal |
| Housing Material | 316L stainless steel |
Component Structure and Interface
Each assembly contains a probe tip, cable, and coaxial connector. The pairs with 3300 XL drivers for signal demodulation. Moreover, the stainless steel body resists corrosion and mechanical wear. The shielded cable minimises electrical noise from nearby drives and motors.
Power and Signal Conditioning
This probe holds no internal energy storage elements. Instead, it depends on an external proximity driver for excitation. The driver supplies -24 VDC and processes the returned signal. As a result, the system outputs voltage proportional to shaft position.
Mounting and Calibration Notes
Technicians mount the probe through a threaded hole or bracket. Target material selection matters, because different alloys alter sensitivity readings. Therefore, always confirm calibration against the actual shaft alloy. Additionally, keep cable runs short to limit signal attenuation.
