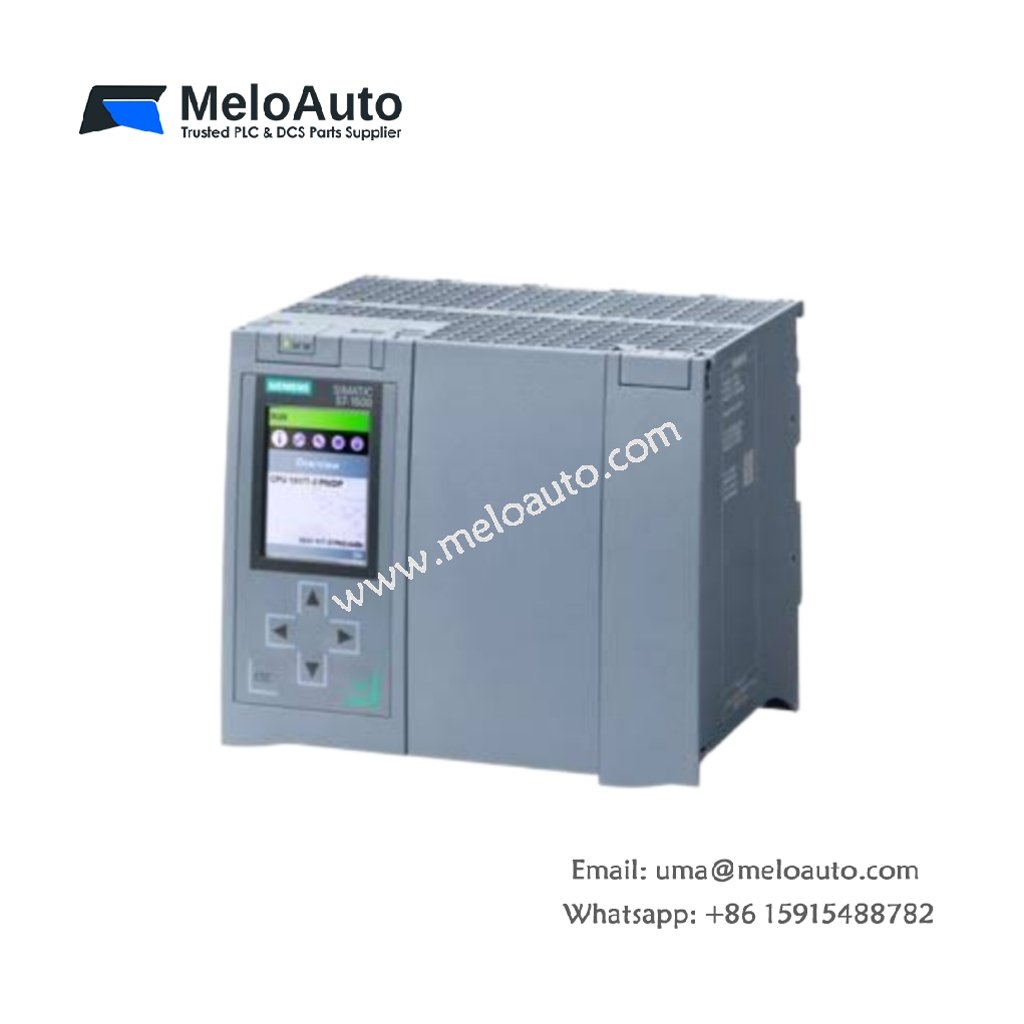

Siemens 6ES7517-3TP00-0AB0 S7-1500T CPU

High-Performance Motion and Process Control Processing

This advanced CPU module combines logic control with integrated motion functionality. It executes complex motion sequences and standard PLC programs simultaneously. The Siemens 6ES7517-3TP00-0AB0 features a powerful processor with 4 MB of program memory. It handles up to 16 motion axes with synchronized interpolation and positioning. The CPU supports PROFINET IRT for deterministic real-time communication. It performs multi-tasking operations with minimal cycle time for demanding applications.

Physical Dimensions and Installation Specifications

The unit measures 132 mm in height, 42 mm in width, and 152 mm in depth. It weighs approximately 0.72 kg with all connectors and mounting hardware attached. The 6ES7517-3TP00-0AB0 inserts directly into the S7-1500 rack system. Its compact design optimizes space in high-density control cabinets. This modular format enables flexible system expansion and maintenance.

Interface Connectivity and Communication Capabilities

A front-facing RJ45 port provides PROFINET connectivity for network integration. The Siemens 6ES7517-3TP00-0AB0 includes a second Ethernet port for additional communication. It features a built-in display for diagnostic and status information. The CPU supports a memory card slot for program and data storage. LED indicators display power, run, stop, and fault status clearly.

Internal Architecture and Energy Storage Elements

The PCB contains a multi-core processor, high-speed memory modules, and protection circuits. The 6ES7517-3TP00-0AB0 uses a 330 µF capacitor for transient energy buffering. It stores configuration data and programs in non-volatile memory. The CPU includes a real-time clock for precise timing operations. A hardware watchdog ensures system reliability and automatic fault recovery.

Parameter	Specification
Model	6ES7517-3TP00-0AB0
Type	SIMATIC S7-1500T CPU
Program Memory	4 MB
Data Memory	6 MB
Motion Axes	Up to 16 (positioning, interpolation)
Control Technology	Integrated motion and logic
Cycle Time	1 ms (typical)
Communication	2 × PROFINET (IRT)
Programming Language	LAD, FBD, STL, SCL, Graph
Supply Voltage	24 V DC ±20%
Dimensions (H×W×D)	132 × 42 × 152 mm
Weight	0.72 kg
Operating Temperature	0 to +60 °C
Storage Temperature	–20 to +70 °C
Energy Storage	330 µF capacitor
Additional Features	Display, RTC, memory card slot, watchdog

Recommended Installation and Programming Practices

Insert the Siemens 6ES7517-3TP00-0AB0 securely into the designated rack slot. Configure the motion parameters using TIA Portal engineering software. Download the control program and verify all motion functions before operation. Test safety-related functions thoroughly with appropriate validation procedures. Monitor the system status using the built-in display for diagnostics. Schedule regular software backups and firmware updates as required.
