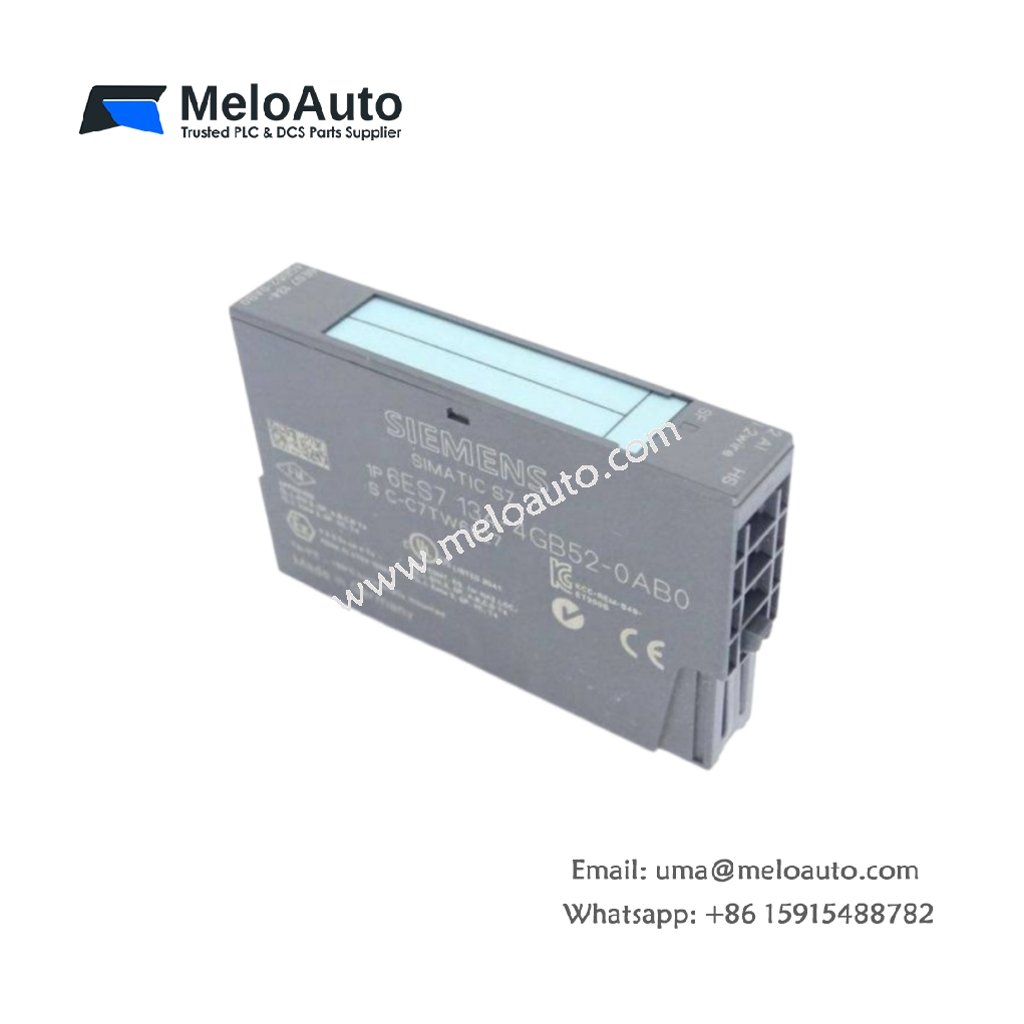

Siemens 6ES7134-4GB52-0AB0 ET200S Analog Module

High-Density Analog Input Processing for ET200S

This electronics module provides high-precision analog input processing for distributed I/O systems. It handles multiple analog signals from field sensors and transmitters efficiently. The Siemens 6ES7134-4GB52-0AB0 offers 2 analog input channels with 16-bit resolution for accurate measurement. It supports 4–20 mA current and 0–10 V voltage signals for versatile connectivity. The module achieves a conversion accuracy of ±0.1% across the full operating range. It performs automatic diagnostics to detect wire breaks and overrange conditions.

Physical Dimensions and Mounting Specifications

The unit measures 81 mm in height, 15 mm in width, and 52 mm in depth. It weighs approximately 0.04 kg with all connectors and hardware included. The 6ES7134-4GB52-0AB0 inserts directly into the ET200S terminal base module. Its ultra-compact single-width design saves valuable rack space. This small footprint supports dense I/O configurations in control cabinets.

Interface Connectivity and Electrical Requirements

A front-facing connector interfaces with the terminal base for field wiring access. The Siemens 6ES7134-4GB52-0AB0 draws its operating power from the module bus. It communicates with the DP master via the ET200S backplane interface. The module includes LED indicators for power and channel status. These indicators support quick diagnostics and fault identification.

Internal Architecture and Energy Storage Elements

The PCB contains analog signal conditioning circuits and a 16-bit ADC converter. The 6ES7134-4GB52-0AB0 uses a 47 µF capacitor for local noise filtering. It stores calibration data and configuration parameters in onboard EEPROM. The module includes protection diodes on each input channel. These components guard against reverse polarity and overvoltage events.

Parameter	Specification
Model	6ES7134-4GB52-0AB0
Type	SIMATIC DP Electronics Module
Analog Inputs	2 channels
Input Types	4–20 mA, 0–10 V
Resolution	16 bits
Accuracy	±0.1% of full scale
Diagnostics	Wire break, overrange detection
Bus Connection	ET200S backplane
Supply Voltage	3.6 V DC (module bus)
Dimensions (H×W×D)	81 × 15 × 52 mm
Weight	0.04 kg
Operating Temperature	0 to +55 °C
Storage Temperature	–20 to +70 °C
Energy Storage	47 µF capacitor
Protection	Reverse-polarity and overvoltage diodes

Recommended Installation Practices

Insert the Siemens 6ES7134-4GB52-0AB0 into the matching terminal base module carefully. Ensure the module locks securely into position for reliable contact. Connect shielded cables to the terminal base for optimal signal quality. Configure input ranges using the ET200S configuration software. Verify readings with a calibrated signal source after installation. Schedule periodic checks of module seating and cable integrity.
