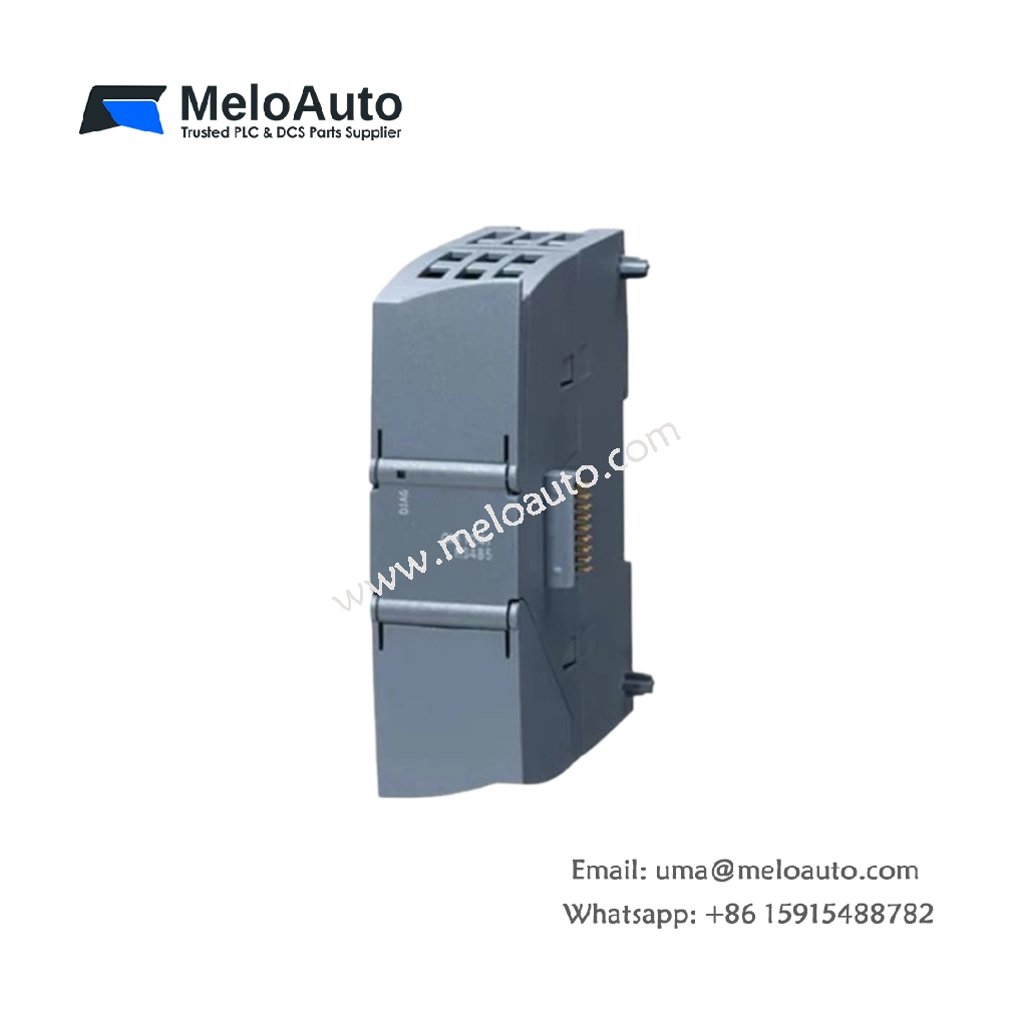

Siemens 6ES7241-1CH32-0XB0 Communication Expansion Module

Technical Specifications Overview

Functional Overview and Serial Connectivity

This expansion module adds one RS-485 serial port to the S7-1200 control system. It enables communication with third-party devices like drives, HMIs, and sensors. The 6ES7241-1CH32-0XB0 supports MODBUS RTU master and slave configurations. Moreover, the module handles USS protocol for Siemens variable frequency drives. For custom applications, the freeport mode allows user-defined communication protocols. This versatility makes the module suitable for diverse industrial networking scenarios.

Communication Protocols and Data Handling

The Siemens 6ES7241-1CH32-0XB0 provides MODBUS RTU for seamless integration with numerous field devices. It operates as either a master or a slave on the network. The USS protocol offers direct connectivity to SINAMICS and MICROMASTER drives. Additionally, the freeport mode gives programmers complete control over the communication frame. You can configure baud rates from 1200 bps up to 115.2 kbps. This range accommodates both slow sensor networks and high-speed drive links. The module also supports adjustable parity, data bits, and stop bits for maximum compatibility.

Physical Architecture and Mounting Details

The module features a compact footprint with dimensions of 30 mm x 100 mm x 75 mm (1.2″ x 3.9″ x 3.0″) . Its lightweight construction of approximately 0.12 kg simplifies installation on DIN rails. The front panel provides a removable 6-pin terminal block for field wiring. This terminal accepts wire sizes from 0.5 to 1.5 mm². The module connects to the S7-1200 via the front expansion bus connector. This bus carries both power and communication signals. The module also includes a DIN rail latch for secure, vibration-resistant mounting.

Physical Layer and Transmission Characteristics

The RS-485 interface supports multi-drop networks with up to 32 nodes. The maximum cable length reaches 1200 meters at lower baud rates. For higher speeds like 115.2 kbps, the effective distance reduces accordingly. The module includes built-in termination resistors that you can enable via DIP switches. This termination prevents signal reflections on long cable runs. Additionally, the module incorporates transient protection for the RS-485 port. This protection guards against electrostatic discharge and induced voltage spikes.

Status Indication and Diagnostics

The module features two LEDs on the front faceplate for communication status. One LED indicates transmit activity (TX) and the other shows receive activity (RX). These visual indicators simplify troubleshooting during commissioning. The module also communicates diagnostic information back to the CPU. Through TIA Portal, you can view error counters and communication statistics. This diagnostic capability helps identify wiring issues or network conflicts quickly. The module also logs communication timeouts for later analysis.

Power Supply and Energy Considerations

The module draws only 50 mA from the 5 VDC system bus. It requires no external power supply for operation. This low power consumption makes it ideal for energy-conscious designs. The module also includes internal filtering for bus power stability. This filtering ensures reliable operation despite voltage fluctuations on the backplane.

Environmental Conditions and Certifications

The module operates reliably from 0°C to +55°C ambient temperature. Storage temperatures range from -40°C to +70°C. The unit carries CE, UL, and CSA certifications. Install the module in a clean, dry control cabinet. The module also complies with IEC 61131-2 for programmable controller components.
