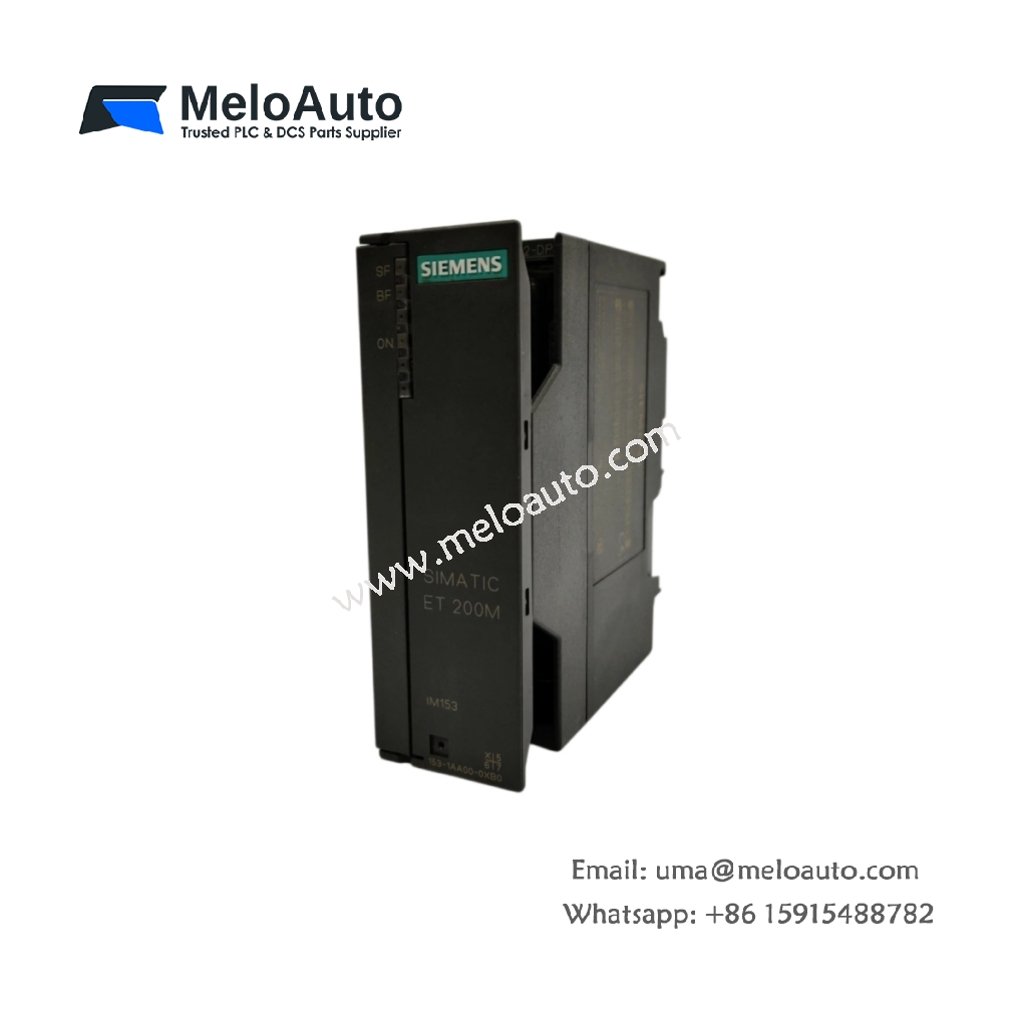

Siemens 6ES7153-1AA00-0XB0 Interface Module

Centralized Integration for ET 200M Systems

This interface module connects remote I/O stations to the PROFIBUS network. It serves as the backbone for ET 200M distributed I/O architectures. Many facilities deploy this unit for seamless expansion of their automation systems. The module enables centralized control of geographically distributed field devices.

Technical Specifications

Parameter	Specification
Model	6ES7153-1AA00-0XB0
Dimensions	125 mm × 130 mm × 70 mm (W × H × D)
Weight	0.45 kg
Power Supply	24 V DC ±20%
Power Consumption	4 W typical
Communication Interface	PROFIBUS DP (RS-485)
Transmission Rate	9.6 kbps to 12 Mbps (auto-detecting)
Bus Connector	9-pin D-sub (female)
Supported I/O Modules	Up to 8 modules (ET 200M series)
Address Space	256 bytes input / 256 bytes output
Periphery Bus	Proprietary backplane bus
Bus Cycle Time	< 3 ms (at 12 Mbps)
Diagnostics Buffer	256 entries (time-stamped)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Humidity Range	5% to 95% RH (non-condensing)
Protection Class	IP20
Status Indicators	1 Power LED, 1 BF LED, 1 BF LED
Certifications	CE, UL, cULus, FM

PROFIBUS DP Connectivity and Network Integration

This module connects directly to the PROFIBUS DP network via RS-485. It auto-detects transmission rates from 9.6 kbps up to 12 Mbps. The 9-pin D-sub connector simplifies cabling to other PROFIBUS devices. This interface ensures robust communication with PLCs, HMIs, and other master stations.

I/O Module Support and System Expansion

The interface supports up to 8 ET 200M series I/O modules. Users can mix digital, analog, and specialty modules in any configuration. This flexibility accommodates diverse application requirements within a single station. Field devices connect to I/O modules for local data acquisition.

Data Handling and Bus Performance

The address space provides 256 bytes each for inputs and outputs. The module handles cyclic data exchange with PROFIBUS masters automatically. Bus cycle times remain under 3 ms at maximum transmission speeds. This performance ensures deterministic behavior for time-critical control tasks.

Power Supply and Energy Characteristics

The unit draws approximately 4 W from a 24 V DC supply. It accepts a wide tolerance range of ±20% for reliable operation. The module derives its power from the external source. It contains no internal batteries or energy storage components.

Mechanical Design and Physical Specifications

This module measures 125 mm wide with a weight of 0.45 kg. The compact form factor reduces space requirements in control cabinets. The IP20 protection rating suits panel-mounted installations. The unit mounts securely on standard DIN rails using the integrated clip.

Diagnostic Functions and Fault Reporting

A diagnostics buffer stores up to 256 time-stamped events. This buffer captures parameterization errors and communication interruptions. Three front-panel LEDs display power status and bus faults. Maintenance personnel retrieve diagnostic data through the engineering tool.

Certification and Quality Standards

The 6ES7153-1AA00-0XB0 holds CE, UL, cULus, and FM approvals. These certifications confirm compliance with international safety standards. Each unit undergoes factory testing before shipment. This quality process ensures dependable performance in industrial environments.
