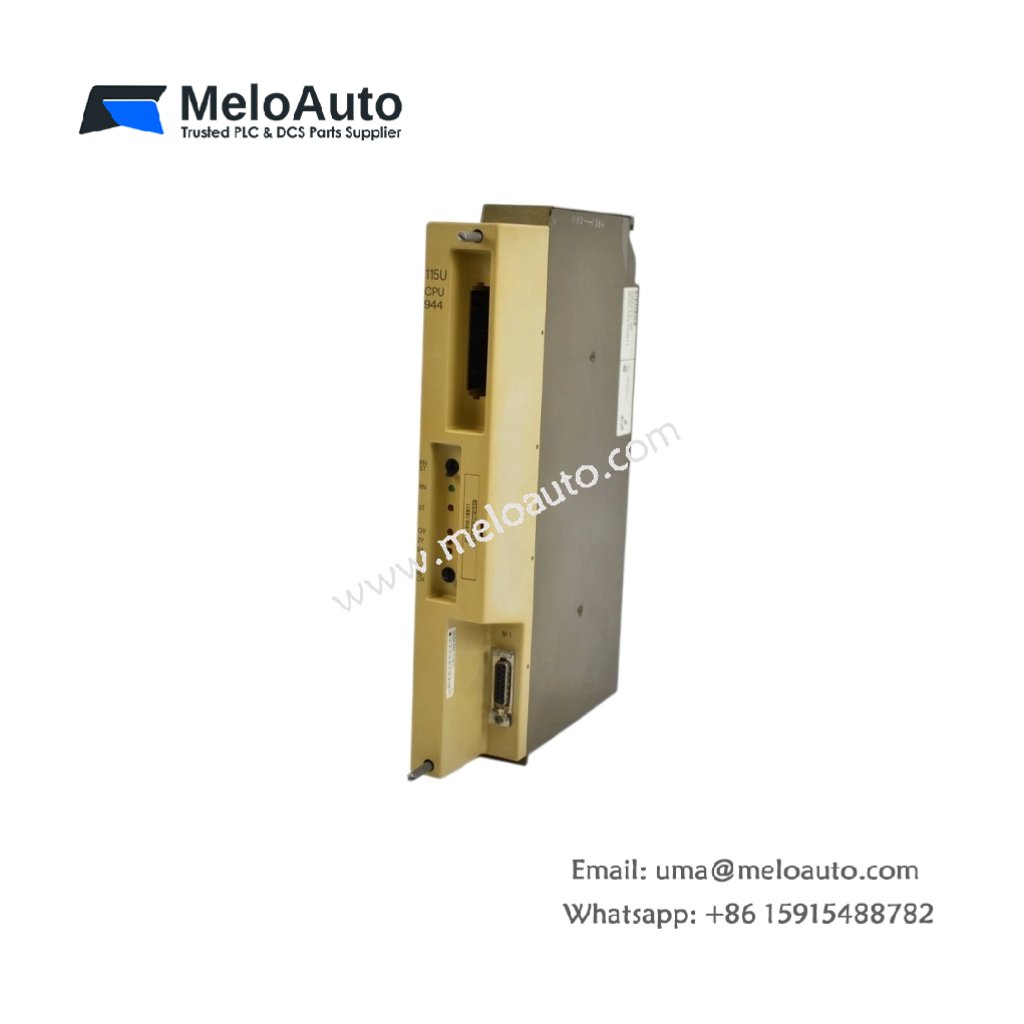

Siemens 6ES5944-7UB11 SIMATIC S5 CPU

Technical Overview

The Siemens 6ES5944-7UB11 is a central processing unit for the SIMATIC S5-115U programmable logic controller series. This CPU module executes user programs, processes I/O signals, and handles communication tasks within the automation system. It offers a substantial 42 KB of user memory, providing ample capacity for complex control applications. The module integrates a built-in interface for connecting programming devices and operator panels. An onboard real-time clock enables time-based control functions and event logging. The CPU mounts directly into the S5-115U chassis, ensuring straightforward installation and replacement.

Technical Specifications

Key Features

Substantial Memory Capacity – The 42 KB user memory accommodates complex programs with extensive logic and data handling.

Integrated Programming Interface – The built-in port simplifies connections to programming devices and operator panels.

Real-Time Clock Function – The onboard clock supports time-based control, event logging, and scheduled operations.

High I/O Capacity – The CPU supports up to 4096 I/O points, enabling control of large automation systems.

Efficient Processing – The CPU executes 1K instructions in 10 ms, ensuring responsive control performance.

STEP 5 Compatibility – Users can program the CPU using the familiar Siemens STEP 5 programming language.

Applications

The Siemens 6ES5944-7UB11 performs reliably in manufacturing automation, process control, and material handling systems. It suits industries such as automotive, chemical processing, and packaging where robust PLC control is essential.
