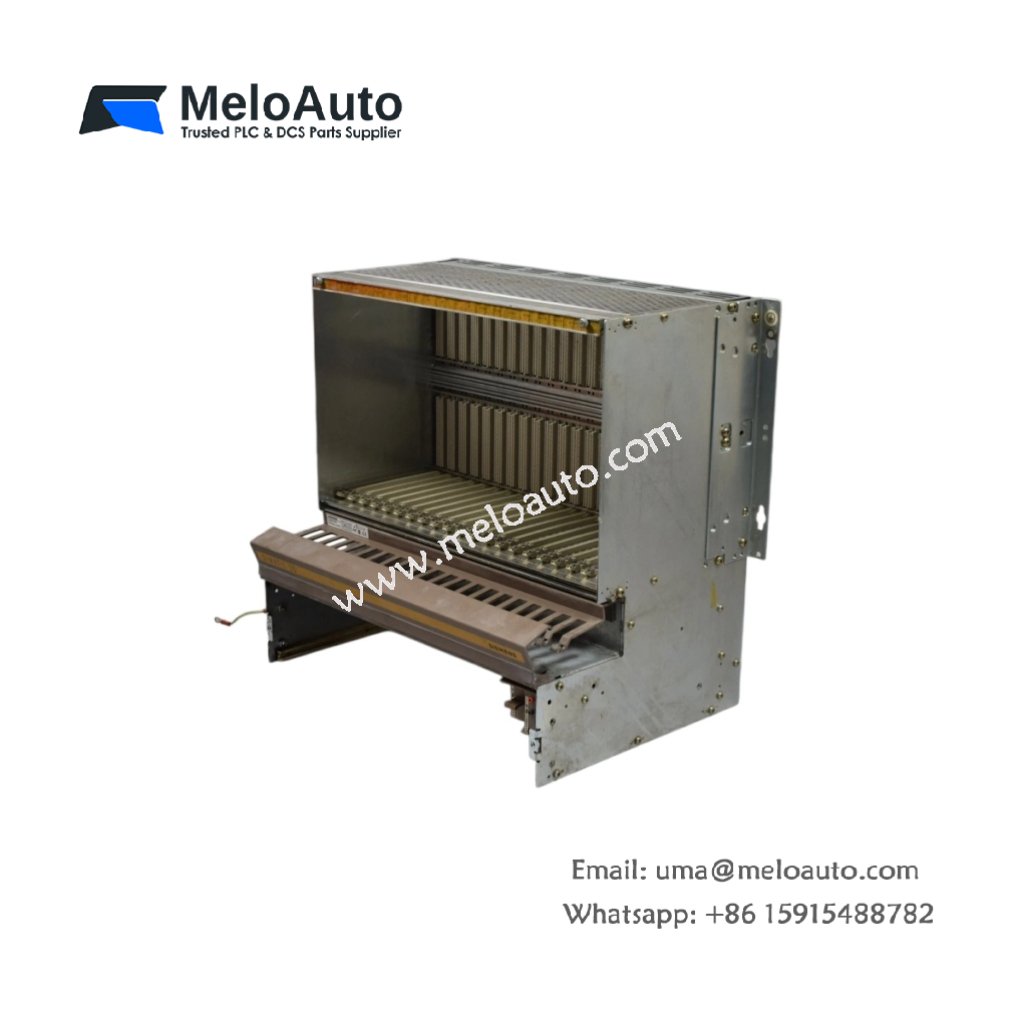

Siemens 6ES5135-3UA42 Central Control Unit

Technical Overview

The Siemens 6ES5135-3UA42 is an interface module for the SIMATIC S5 series, specifically serving as a central controller for the SINEC L2 LAN network. This unit functions as a bus interface that connects the S5-135U, S5-155U, and S5-155H programmable controllers to the SINEC L2 communication network. The module enables high-speed data exchange between multiple PLCs and supervisory systems. It supports both peer-to-peer communication and master-slave configurations. The module mounts directly into the S5 chassis, requiring only one slot for installation. An integrated processor handles all communication tasks independently of the CPU, thereby offloading network overhead.

Technical Specifications

Key Features

Independent Communication Processor – The onboard processor manages network traffic without burdening the main CPU.

High-Speed Data Exchange – The module supports transmission speeds up to 12 Mbps, ensuring rapid data transfer.

Multi-Protocol Support – The unit handles peer-to-peer and master-slave communication modes for flexible network topologies.

Single-Slot Design – The module occupies only one slot, preserving chassis space for other modules.

Large Network Capacity – The controller supports up to 126 nodes, enabling extensive distributed systems.

SINEC L2 Compatibility – The module integrates seamlessly with PROFIBUS-compatible networks.

Applications

The Siemens 6ES5135-3UA42 performs reliably in distributed control systems, factory automation, and process control networks. It suits industries such as automotive manufacturing, chemical processing, and material handling where high-speed PLC communication is essential.
