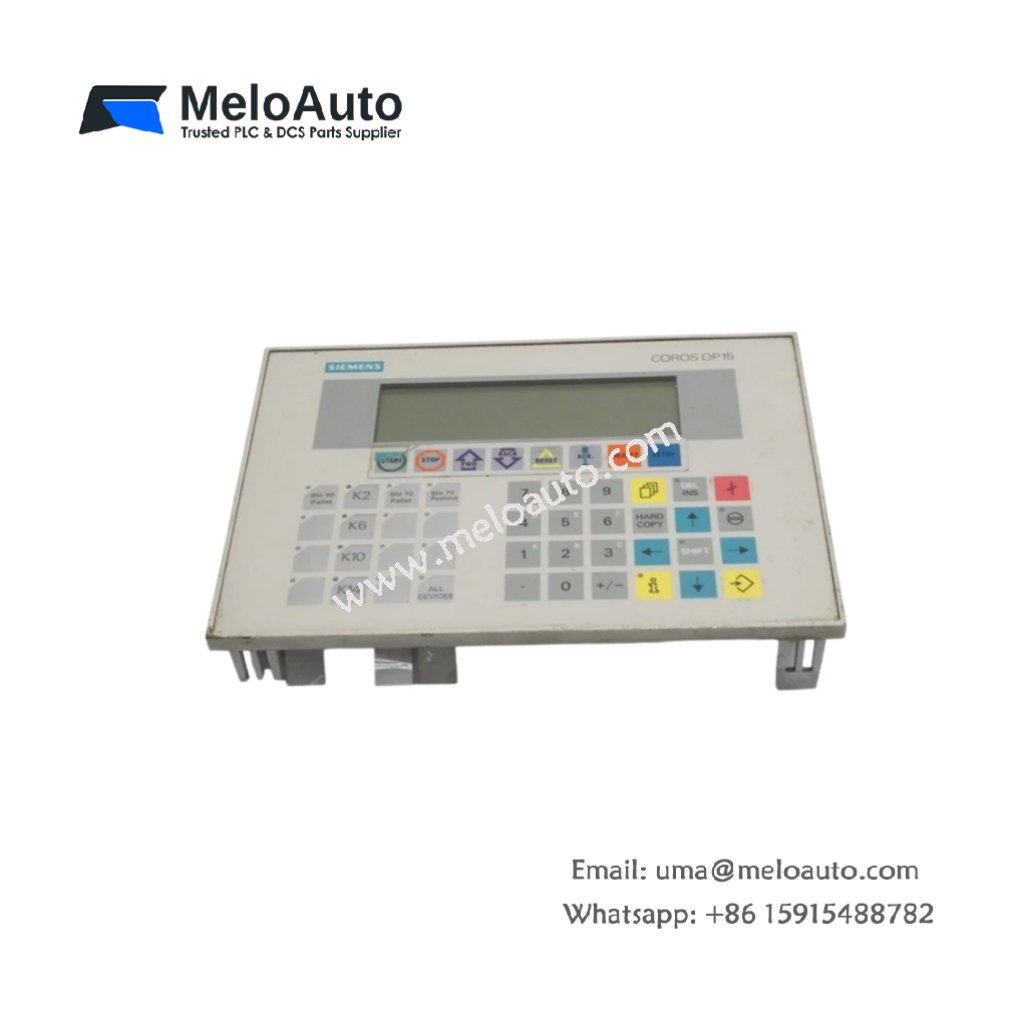

Siemens 6AV3515-1MA30 OP15/C1 Operator Panel

Technical Overview

The Siemens 6AV3515-1MA30, also known as the OP15/C1, is a monochrome operator panel designed for the SIMATIC S5 family of programmable logic controllers . It serves as a robust human-machine interface for monitoring and controlling industrial automation processes. This panel offers flexible display options, allowing you to choose between 4 lines of 20 characters each or 8 lines of 40 characters each . It also provides three integrated communication ports to ensure seamless connectivity with your control system.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6AV3515-1MA30
Product Type	Operator Panel / HMI
Model Designation	OP15/C1
System Compatibility	SIMATIC S5
Display Type	Monochrome LC Display with contrast control
Display Format	4 lines x 20 characters or 8 lines x 40 characters
Character Sizes	8mm (4-line mode) or 4.5mm (8-line mode)
Function Keys	24 total (including 8 softkeys)
User Memory	256 KB
Communication Ports	1x RS-422/485, 2x V.24/TTY
Power Supply	24 VDC
Weight	1.1 – 1.24 kg
Dimensions (W x H x D)	17 x 24 x 5 cm
Approvals	UL/CSA approved
Country of Origin	Germany (DE)

Key Features

Flexible Display Options – The high-contrast monochrome display offers two viewing modes, thereby adapting to your specific application needs .

Integrated Communication – The panel includes one RS-422/485 and two V.24/TTY interfaces, ensuring compatibility with various automation networks .

Customizable Operation – Eight softkeys and 24 total function keys provide quick access to frequently used controls, thus enhancing operator efficiency .

Ample Memory Capacity – A 256 KB user memory stores essential programs, configurations, and operational data .

Robust Industrial Design – The panel’s durable construction withstands demanding industrial environments, ensuring long-term reliability .

Applications

The Siemens 6AV3515-1MA30 is ideal for machine-level control, process monitoring, and data entry tasks. You will find it performing reliably in manufacturing, material handling, and process automation where a clear, rugged interface is essential.
