Reliable PROFIBUS Network Connection

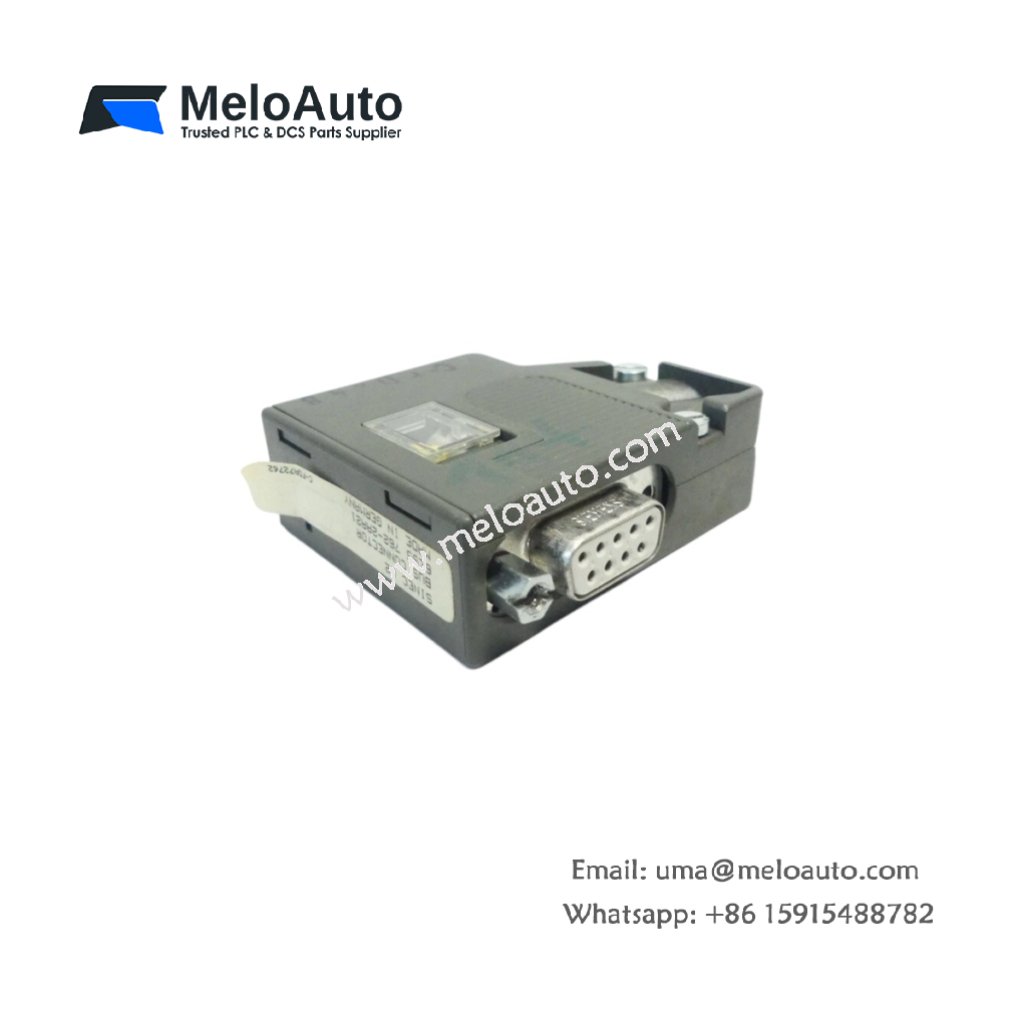

The 6ES5762-2AA21 bus connector plug provides a secure and dependable connection for PROFIBUS networks. This connector belongs to the SIMATIC S5 product family and supports standard PROFIBUS communication. It features an angled 9-pin D-sub housing with a 90-degree cable outlet. This design simplifies installation in tight control cabinets and equipment enclosures.
Connection Features and Diagnostics
The 6ES5762-2AA21 includes integrated termination resistors for proper network termination. A sliding switch on the housing activates or deactivates the termination function easily . Moreover, this plug supports a maximum transmission speed of 12 Mbit/s for high-speed data exchange . An LED indicator provides visual confirmation of network status and proper termination. Consequently, this connector offers straightforward diagnostics for network troubleshooting.
Durability and Environmental Specifications
The 6ES5762-2AA21 delivers reliable performance with a rated voltage of 24 V DC and 100 mA current capacity . It features screw-type locking for secure connections in industrial environments. This connector withstands up to 20 mating cycles for long-term reliability . Furthermore, the plug weighs just 0.02 kg and measures 2.0 x 3.5 x 5.0 cm . Its compact size makes it a convenient choice for space-limited applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Product Line | SIMATIC S5 |
| Model | 6ES5762-2AA21 |
| Product Type | Bus Connector Plug |
| Connector Type | 9-pin D-sub (angled) |
| Cable Exit | 90° (angled) |
| Integrated Resistor | Yes (switchable) |
| Transmission Speed | Up to 12 Mbit/s |
| Rated Voltage | 24 V DC |
| Current Capacity | 100 mA |
| Locking Mechanism | Screw-type |
| Mating Cycles | 20 |
| LED Indicator | Yes (network status) |
| Weight | 0.02 kg |
| Dimensions (W x D x H) | 2.0 x 3.5 x 5.0 cm |
| Certifications | CE, UL |
