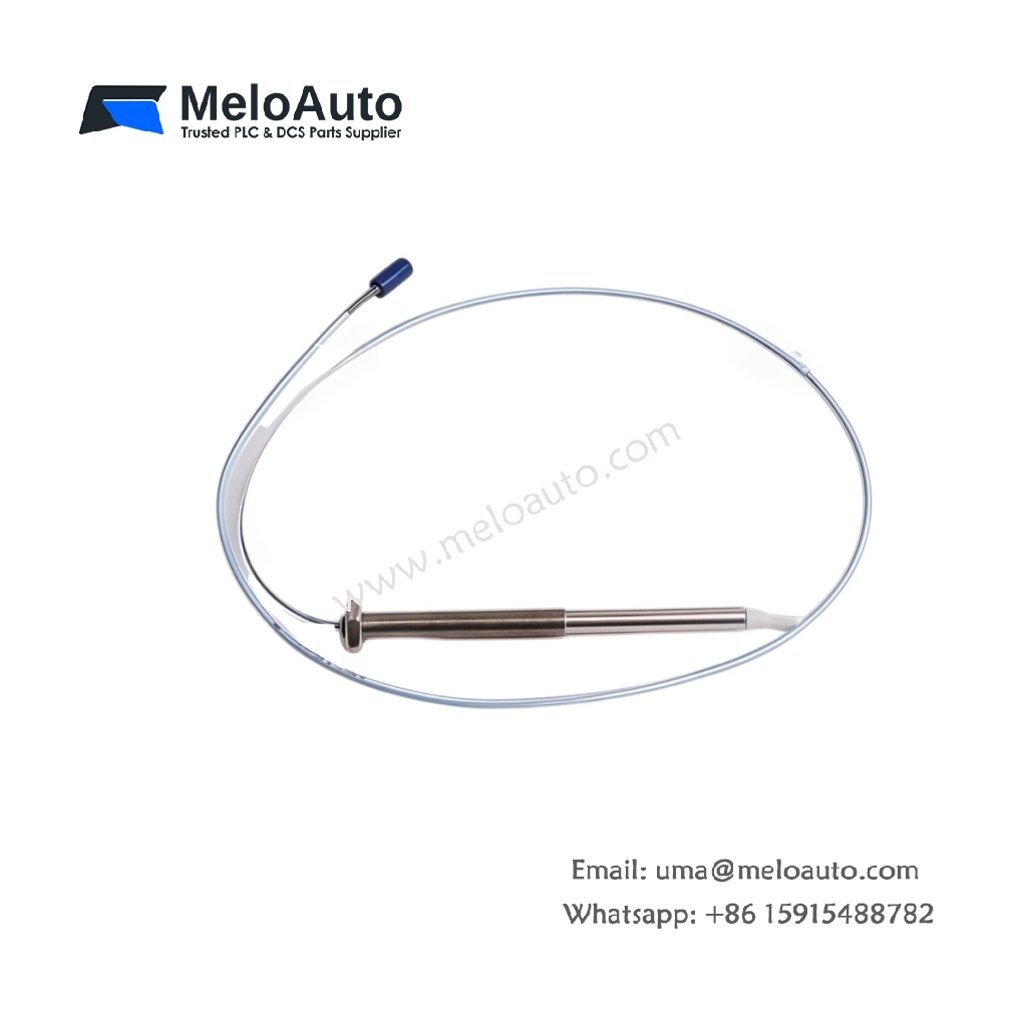

Bently Nevada 330905-00-08-10-02-00

Core Specifications of the Proximity Transducer

The 330905-00-08-10-02-00 belongs to the Bently Nevada 3300 NSv family of proximity transducers. This compact eddy current sensor measures shaft displacement in small rotating machines. Moreover, its 8 mm tip diameter suits tight installation spaces.

Each transducer features a 10 mm unthreaded length and a 2 mm thread pitch. Additionally, the unit weighs roughly 0.28 kg with its integrated cable. The total case length reaches 50 mm, while the 02-00 suffix defines the connector and mounting style.

Parameter	Value
Series	3300 NSv
Tip Diameter	8 mm
Weight	~0.28 kg
Total Case Length	50 mm
Unthreaded Length	10 mm
Connector Type	ClickLoc coaxial
Cable Length	1.0 m
Operating Temperature	-35°C to +177°C
Linear Range	2 mm (80 mils)
Scale Factor	7.87 mV/µm (200 mV/mil)
Frequency Response	0 to 10 kHz
Energy Storage	None (external proximitor power)

Interface and Mounting Details

The 330905-00-08-10-02-00 uses a ClickLoc coaxial connector for reliable signal transfer. Consequently, field technicians complete wiring without soldering or special tools. This transducer pairs with 3300 NSv extension cables and proximitor modules. Therefore, it integrates smoothly into existing monitoring systems.

The compact body allows mounting where radial space remains limited. Meanwhile, the stainless steel housing resists corrosion and mechanical wear.

Performance and Application Notes

Industrial operators rely on the 330905-00-08-10-02-00 for continuous vibration monitoring. Furthermore, its 10 kHz frequency response captures high-speed rotor dynamics. The 7.87 mV/µm scale factor matches standard Bently Nevada proximitor inputs. Meanwhile, the 2 mm linear range ensures accurate displacement measurement.

The transducer stores no energy internally, since it draws power from the proximitor. As a result, it adds minimal load to the measurement chain.
