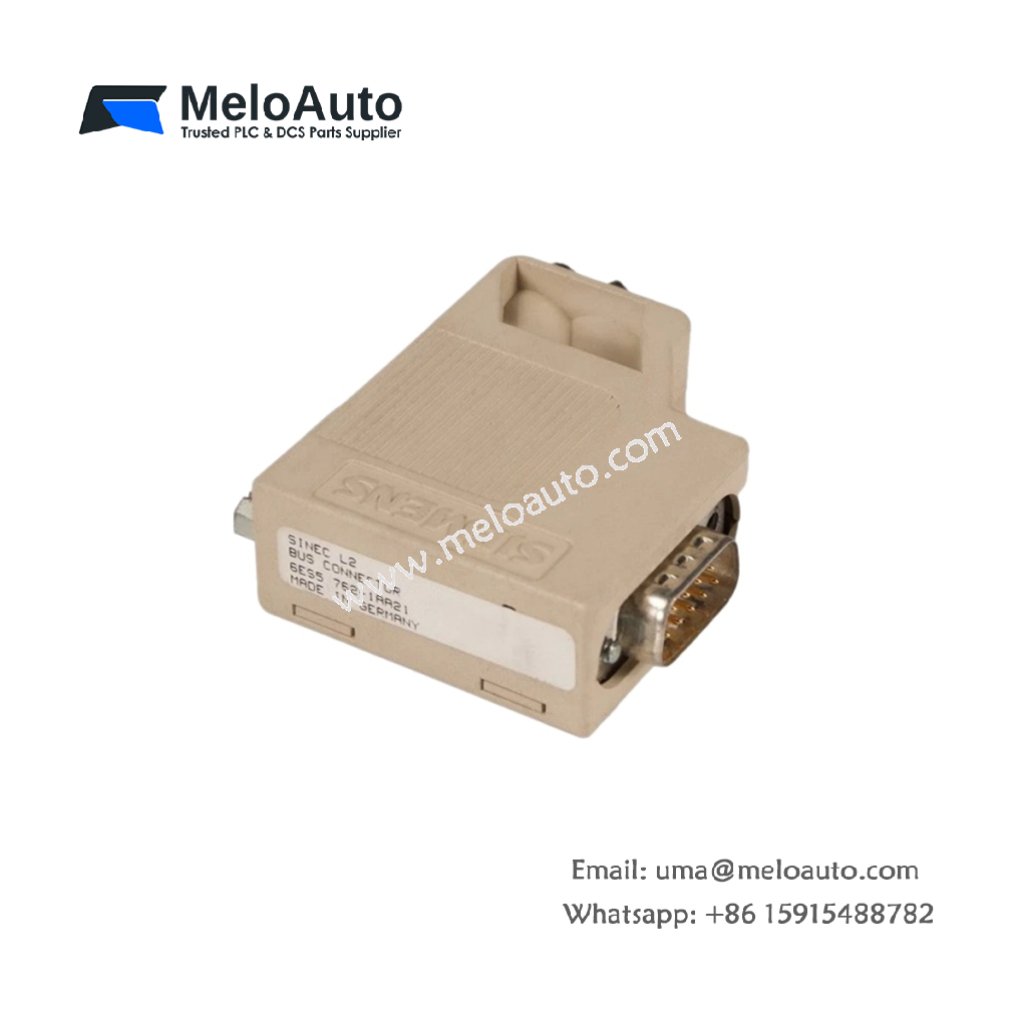

Siemens 6ES5762-1AA21 Bus Connector

PROFIBUS and SINEC L2 Network Connection for SIMATIC S5

The 6ES5762-1AA21 bus connector provides a reliable connection for PROFIBUS and SINEC L2 networks within the SIMATIC S5 product family. This connector features a 9-pin D-sub housing and includes an integrated PG socket for programming device access. It plays a critical role in maintaining stable data transmission and network integrity for legacy automation systems. Consequently, this connector ensures seamless communication between controllers, programming devices, and field stations.

Technical Specifications

Network Connectivity and System Integration

This bus connector enables seamless integration of SIMATIC S5 devices into PROFIBUS or SINEC L2 networks. The 6ES5762-1AA21 includes a PG socket that allows direct connection of programming devices for convenient configuration and diagnostics. Users can connect this unit to various S5 systems, including ET200U/B and S5-115U/H to S5-155U/H controllers. Furthermore, the connector suits applications requiring reliable network attachment in electrically noisy industrial environments. Its robust design ensures consistent signal transmission even under challenging conditions.

Physical Characteristics and Installation

Weighing only 0.02 kg, this connector features a compact and lightweight design. Its IP20 protection rating makes it suitable for installation within control cabinets. The connector’s robust construction withstands typical industrial conditions, including vibration and temperature fluctuations. Users can install or replace the 6ES5762-1AA21 quickly during network maintenance without special tools. The beige housing allows easy identification within the S5 system.

Application and Compatibility

This bus connector connects SIMATIC S5 devices to MPI or PROFIBUS DP networks in various configurations. It facilitates communication between the programming device and the network. Consequently, the 6ES5762-1AA21 remains an essential component for existing S5 installations requiring network connectivity. It supports both PROFIBUS and SINEC L2 protocols, offering flexibility for different network architectures. The connector also provides a termination resistor option for network reliability.

Signal Integrity and Network Performance

The 6ES5762-1AA21 maintains excellent signal quality over standard bus cable lengths. Its metallic housing provides shielding against electromagnetic interference. This shielding preserves data integrity in industrial settings with heavy electrical noise. Therefore, this connector ensures dependable communication between S5 controllers and distributed I/O stations.
