This cable provides a reliable connection for industrial computer systems. It links the SIMATIC S5 series processor to peripheral devices efficiently. Therefore, this accessory plays a key role in stable automation networks.
Dimensions and Mechanical Properties

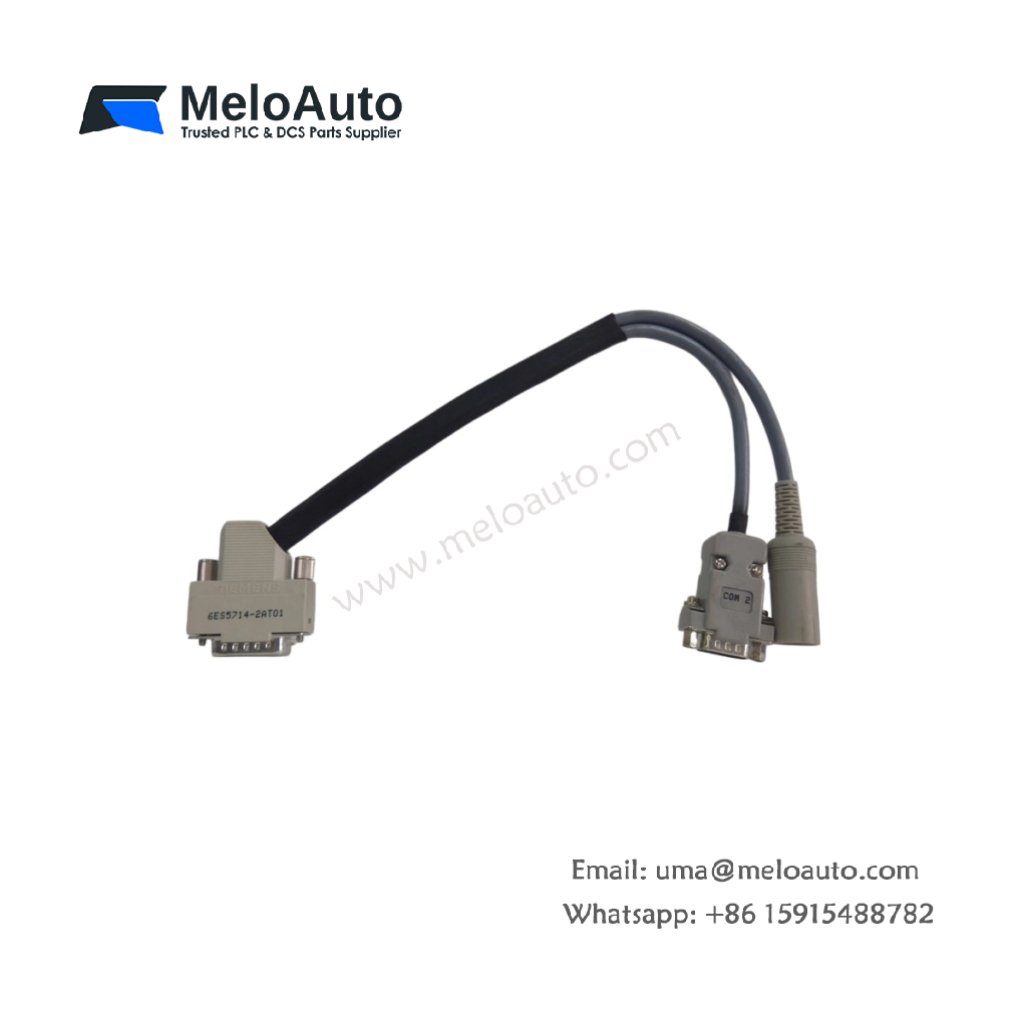

The Siemens 6ES5714-2AT01 features a flexible yet durable outer jacket. Its total length reaches approximately 2.5 meters for standard cabinet layouts. The cable diameter measures around 6.5 mm for easy routing. Consequently, technicians can bend this cable without damaging internal wires.
| Parameter | Specification |
|---|---|
| Product Model | Siemens 6ES5714-2AT01 |
| Cable Length | 2.5 meters (approx.) |
| Outer Diameter | 6.5 mm (approx.) |
| Weight | 0.18 kg |
Interface Type and Connector Details
This cable uses a 15-pin D-sub connector on each end. Each connector features a screw-lock mechanism for secure attachment. The Siemens 6ES5714-2AT01 fits directly into SIMATIC S5 communication ports. Hence, installation requires no special tools or adapters.
Component Count and Shielding Design
The assembly consists of one molded cable body and two connector housings. Each connector contains 15 gold-plated pins for reliable signal transfer. A copper braid shield wraps around the internal wires. This shielding blocks electromagnetic interference from nearby machinery.
| Technical Feature | Description |
|---|---|
| Connector Type | 15-pin D-sub (male to male) |
| Locking Mechanism | Screw-lock on both ends |
| Shielding Material | Copper braid with foil layer |
| Wire Count | 15 individually insulated conductors |
Energy Handling and Signal Integrity
The Siemens 6ES5714-2AT01 carries low-voltage signals only. It does not transmit power for connected devices. However, the cable maintains strong signal integrity over its full length. This characteristic ensures error-free data exchange between PLC components.
Operating Conditions and Durability
The cable withstands temperatures from 0°C to 60°C. Its flexible jacket resists oil and common industrial fluids. Therefore, this accessory performs reliably on factory floors for many years.
