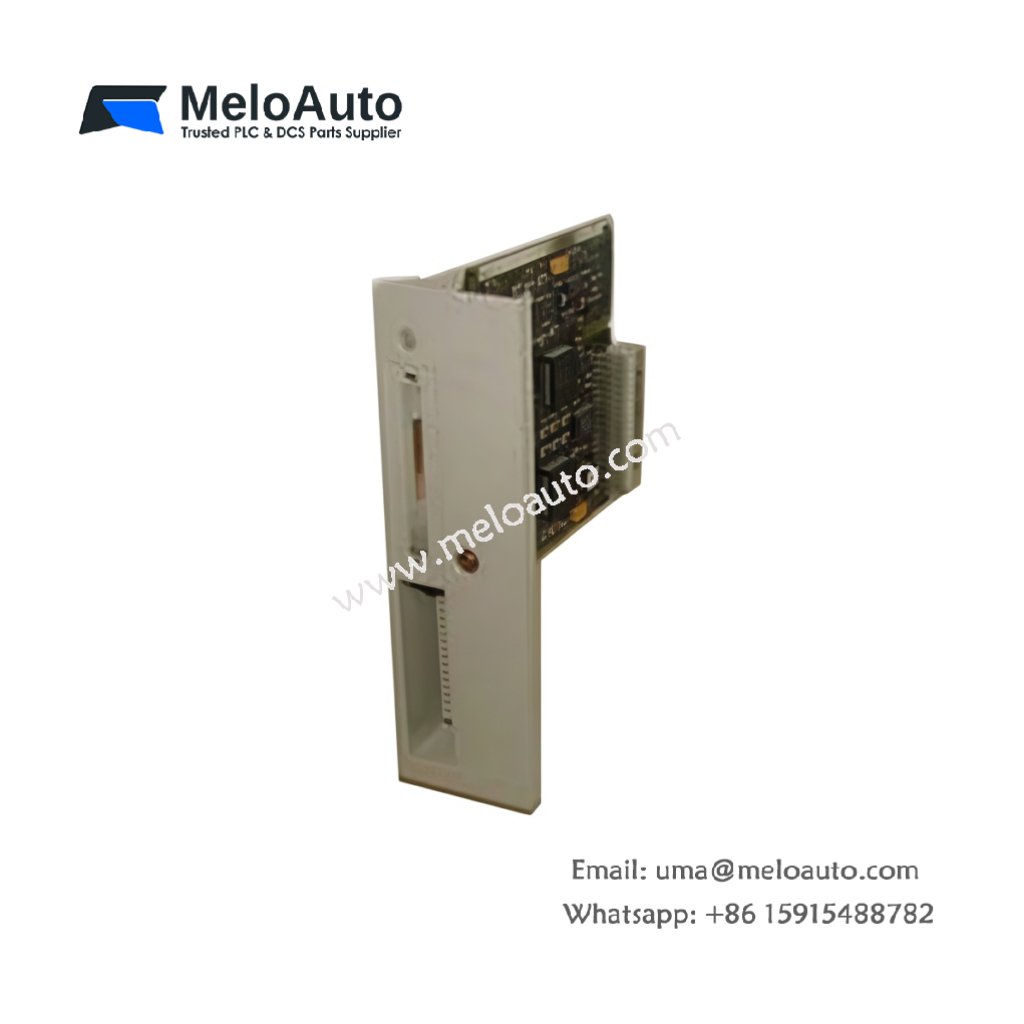

Siemens 6ES5687-0AA01 | SIMATIC S5 Interface

Technical Overview of the Upgrade Module

The Siemens 6ES5687-0AA01 serves as an interface and upgrade module for SIMATIC S5 PLC systems. This module bridges older S5 controllers with newer peripheral devices and networks. It enhances system capabilities without requiring a full controller replacement. The design facilitates cost-effective modernization of existing automation installations.

Key Technical Specifications

This section outlines the precise parameters for the Siemens 6ES5687-0AA01 interface module. Refer to these figures when planning your system upgrades.

Parameter	Specification
Part Number	6ES5687-0AA01
Type	Interface and Upgrade Module
Product Family	SIMATIC S5
Interface	RS232 / TTY / Current Loop
Protocol Support	SINEC L1, L2, and standard ASCII
Data Buffering	Internal FIFO buffer
Operating Voltage	5V DC (from backplane)
Dimensions (W x H x D)	Approx. 250 x 25 x 180 mm
Weight	Approx. 0.8 kg
Compatibility	SIMATIC S5-90U, 95U, 115U, 135U, and 155U

Application and System Integration

This upgrade module connects directly to the S5 backplane bus. It translates communication protocols between the PLC and modern field devices. The Siemens 6ES5687-0AA01 supports both SINEC L1/L2 and standard ASCII formats. Its internal FIFO buffer manages data flow during high-speed exchanges. Consequently, engineers can integrate new peripherals with legacy controllers.

Reliability and Performance Advantages

The module offloads protocol conversion tasks from the main CPU. This capability improves overall system throughput and response times. Its compact form factor saves space in existing control cabinets. Users choose the Siemens 6ES5687-0AA01 for extending the life of their S5 automation investment.
