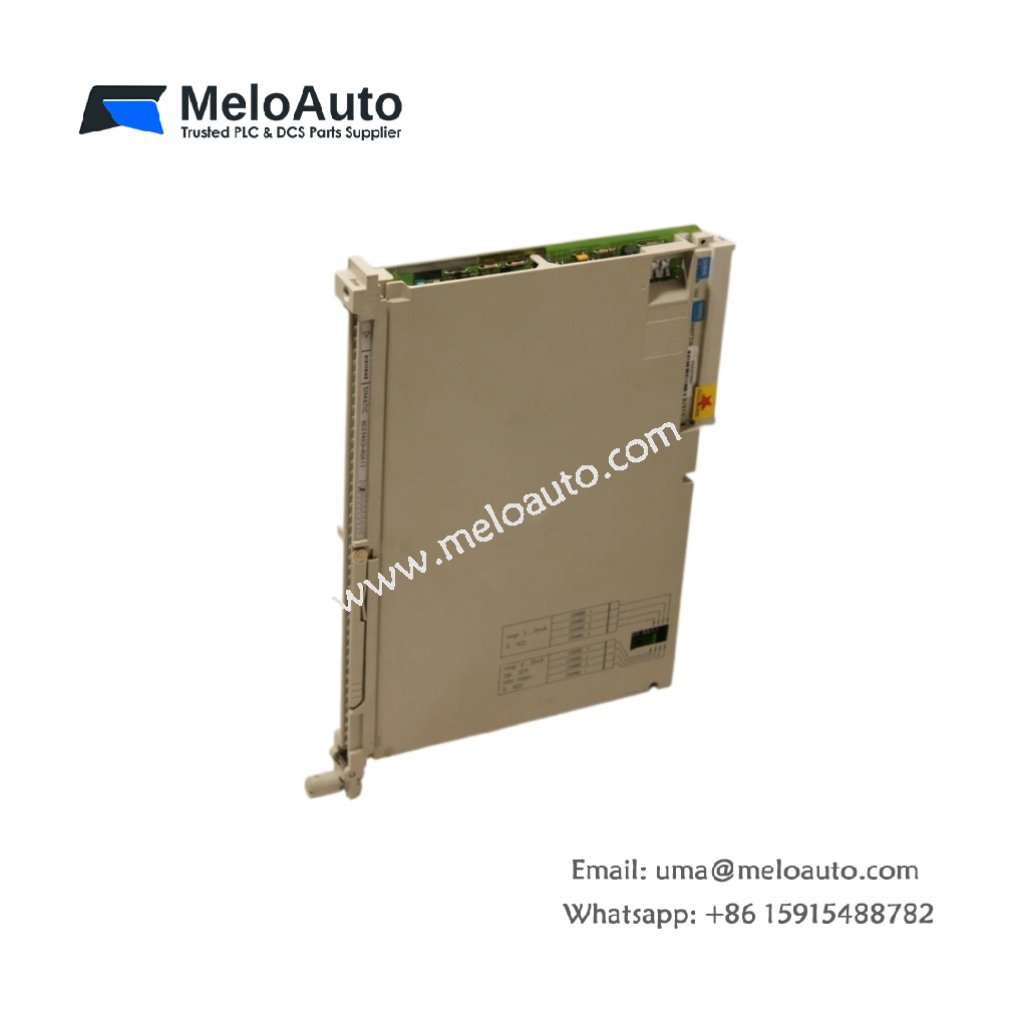

Siemens 6ES5463-4UA11 Analog Input Module for SIMATIC S5

Core Analog Signal Acquisition for S5 Systems

The Siemens 6ES5463-4UA11 is a 4-channel analog input module for the SIMATIC S5 PLC family. This module converts field sensor signals into digital values for the S5 CPU. It supports both voltage and current input types for flexible application. Consequently, it provides essential data acquisition for legacy S5-based automation systems.

Hardware-Configurable Input Ranges

This module uses pluggable range modules for physical channel configuration. You must select the correct hardware range card for your specific signal type and scale. The 6ES5463-4UA11 supports ±10 V, ±1 V, 0–10 V, 0–20 mA, and 4–20 mA ranges. Furthermore, this hardware-based approach prevents accidental parameter changes from software misconfiguration.

Technical Specifications and Key Features

Engineered for 50 Hz power systems, this module provides high immunity to line-frequency noise. It features a 13-bit resolution (12-bit + sign) for reliable and accurate measurements. The 6ES5463-4UA11 offers galvanic isolation between the input side and the S5 backplane bus. The following table details its primary functional and electrical parameters.

Application in Legacy System Maintenance

Plant engineers use this module to monitor temperature, pressure, and flow signals in legacy S5-controlled machinery. It is especially valuable for critical applications requiring stable, noise-immune analog measurements. The Siemens 6ES5463-4UA11 supports ongoing operation of reliable S5 infrastructure without full system replacement. Therefore, sourcing tested units is crucial for lifecycle management of classic Siemens automation platforms.
