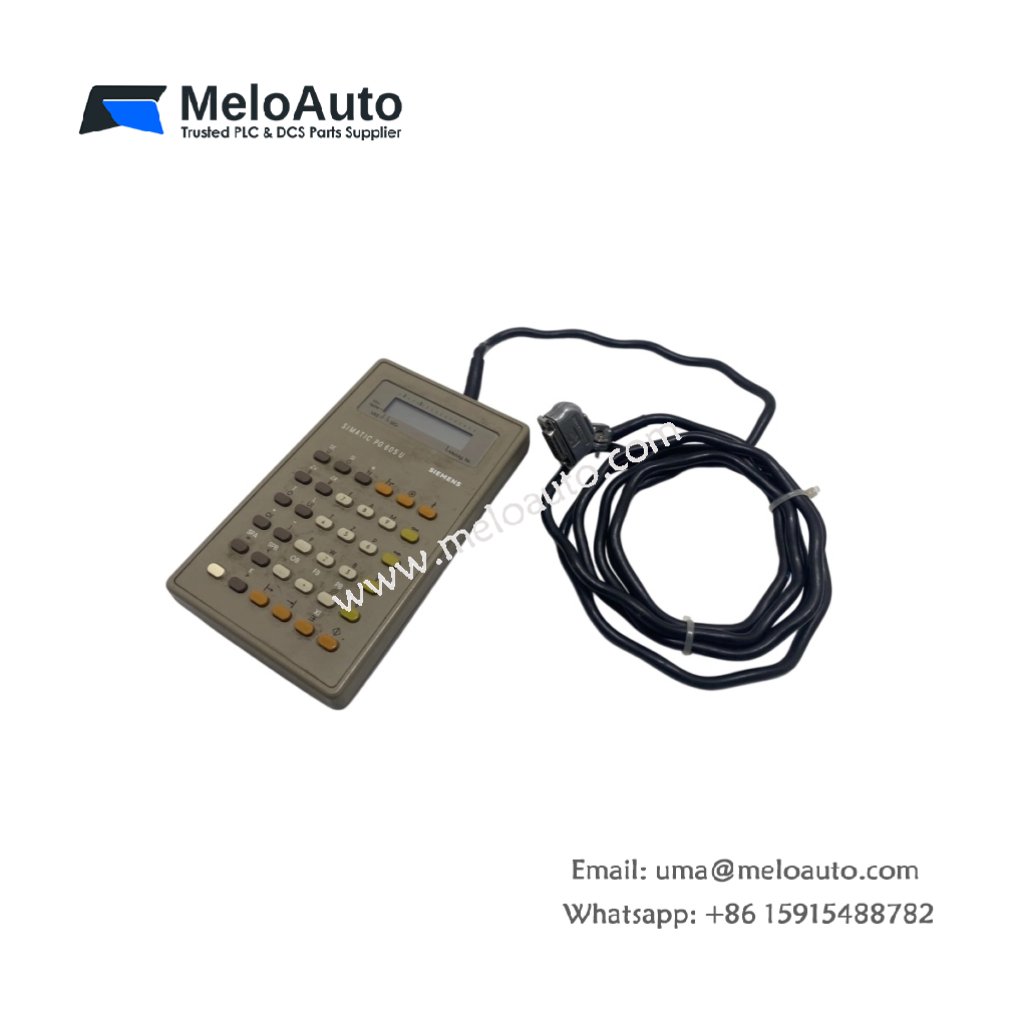

The 6ES5605-0UA11 serves as a portable programming device for SIMATIC S5 PLC systems. This hand-held unit allows on-site program edits without a computer. You can use it for quick diagnostics and small code changes.
Key Technical Parameters
The table below lists all essential technical specifications for this hand-held programmer.
| Specification | Details |
|---|---|
| Part Number | 6ES5605-0UA11 |
| Product Type | Hand-Held Programmer |
| Display Type | LCD, 2 lines x 16 characters |
| Keypad | 36 membrane keys |
| Memory | 8 KB internal RAM |
| Dimensions (W x H x D) | 220 mm x 110 mm x 35 mm |
| Weight | Approx. 0.70 kg |
| Interface | AS511 (TTY) |
| Power Supply | 5V DC from PLC or external adapter |
| Cable Length | 2.5 meters |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
Physical Characteristics and Portability
This hand-held programmer weighs approximately 0.70 kg for comfortable handheld use. Its dimensions measure 220 mm x 110 mm x 35 mm. The device features a rugged plastic housing for factory floor durability. A 2.5-meter cable connects directly to your S5 CPU. You can carry this unit easily during machine maintenance rounds.
Display and Keypad Layout
The 6ES5605-0UA11 includes an LCD with two lines of sixteen characters each. This display shows program steps and system status clearly. The 36-key membrane keypad provides full programming functionality. You will find dedicated keys for logic operations, timers, and counters. Consequently, you can write and edit ladder logic without a PC.
Memory and Power Options
This programmer integrates 8 KB of internal RAM for program storage. The RAM requires a backup battery to retain data when disconnected. You can power the 6ES5605-0UA11 directly from the PLC’s 5V supply. Alternatively, use an external power adapter for offline programming. This flexibility makes the unit suitable for various work scenarios.
