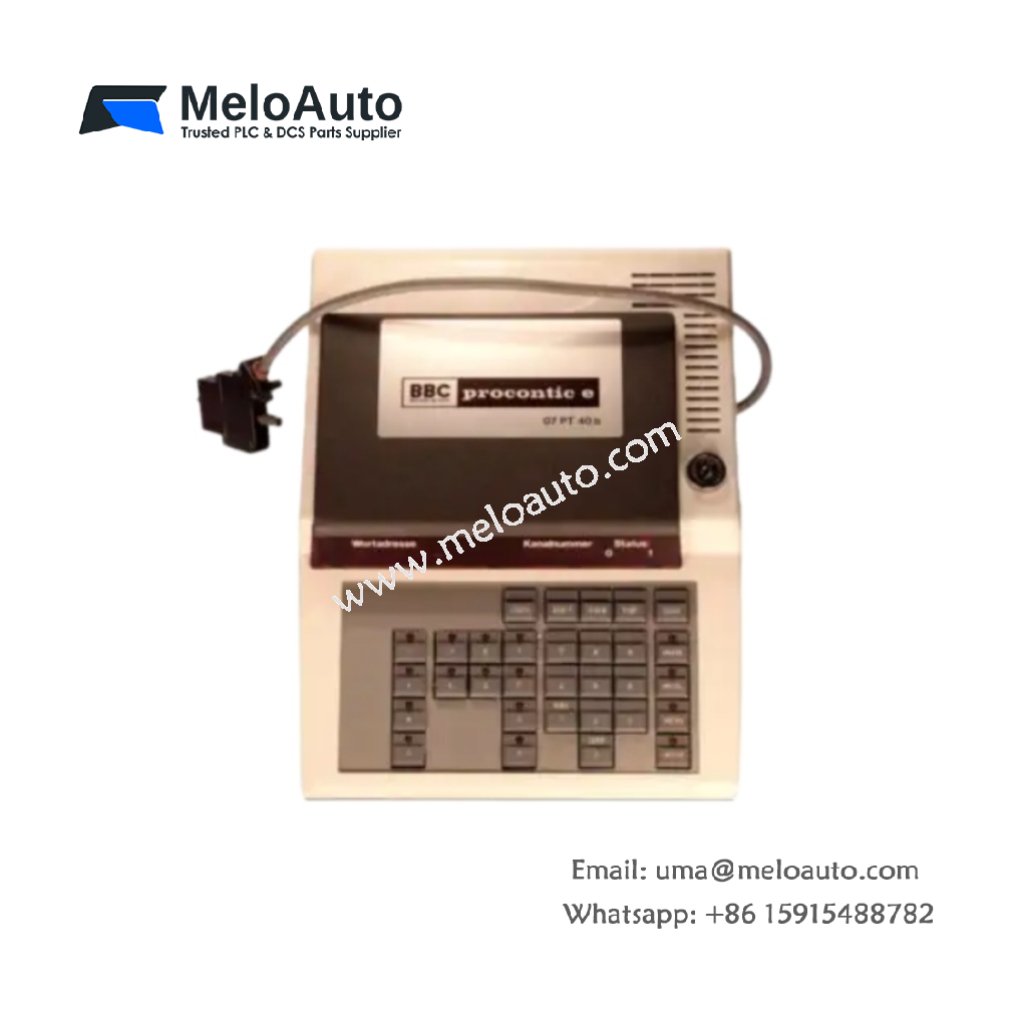

ABB 07 PT 40b Procontic Keyboard

This Procontic keyboard provides data entry for ABB industrial operator panels. It connects directly to compatible HMI devices for text input tasks. Therefore, this accessory simplifies operator interaction with Procontic control systems.

Physical Dimensions and Weight Specifications

The ABB 07 PT 40b features a membrane keypad with compact construction. Its width measures 280 mm for standard panel mounting. The total depth reaches 35 mm including the rear connector. Consequently, technicians can mount this keyboard flush against cabinet doors.

Interface Type and Connection Details

The ABB 07 PT 40b uses a 9-pin D-sub connector for communication. This interface provides both power and data through a single cable. The cable length reaches 1.8 meters for flexible placement options. Hence, operators can position the keyboard away from the main panel.

Component Count and Key Configuration

This keyboard module contains one membrane layer with 56 individual keys. The assembly includes a plastic backplate for lightweight design. You will find 8 function keys for programmable shortcuts. Additionally, a separate numeric pad supports rapid value entry.

Energy Storage and Power Requirements

The ABB 07 PT 40b draws 60 mA from the 5V serial port supply. It requires no external power supply for normal operation. The keyboard does not contain any internal battery or capacitor. Therefore, the device works immediately after connecting to a compatible host.

Operating Conditions and Durability Features

The keyboard withstands over 1 million keystrokes per key. Its membrane surface resists dust and light liquid spills. Users can operate this device in temperatures from 0°C to 50°C. This durability suits factory environments with regular operator interaction.
