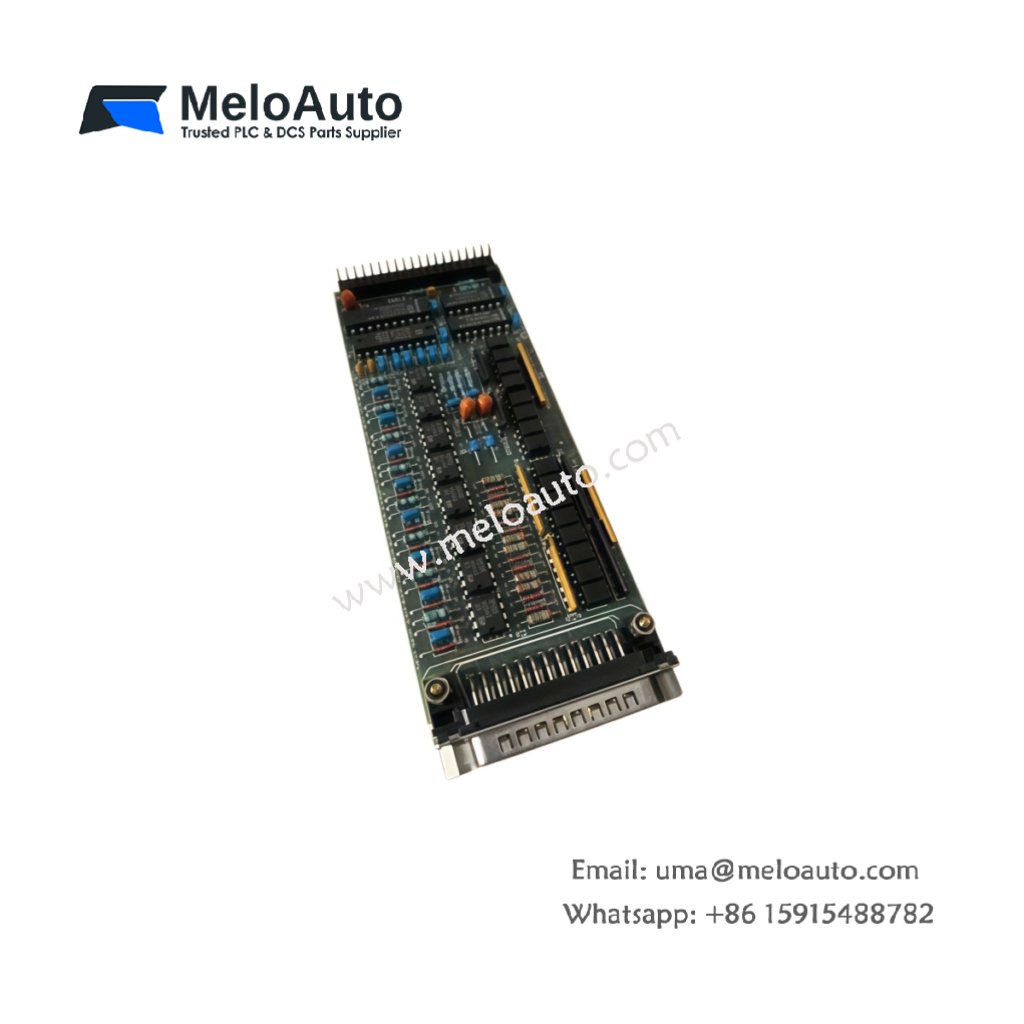

Siemens G26004-A3118-P455 Analog I/O Submodule

Versatile Signal Conditioning for SIMATIC S5 Systems

The G26004-A3118-P455 analog I/O submodule provides flexible signal conditioning capabilities for SIMATIC S5 automation platforms. This submodule handles both analog inputs and outputs within a single compact unit. Consequently, it offers a space-efficient solution for mixed analog signal processing tasks. This submodule belongs to the SIMATIC S5 product family as a specialized I/O component.

Technical Specifications

Functional Capabilities and Applications

The G26004-A3118-P455 submodule integrates analog input and output functions for versatile signal conditioning. It converts sensor signals into digital values for the CPU and converts control outputs to analog field signals. Consequently, this submodule serves applications requiring both measurement and control. It suits process control, temperature monitoring, and pressure regulation systems.

System Integration

This submodule plugs into designated slots within the S5 rack system. It communicates with the CPU via the backplane bus for seamless data exchange. The submodule supports various signal types, including current and voltage. Furthermore, its modular design simplifies system upgrades and maintenance.

Physical Characteristics

The G26004-A3118-P455 fits standard S5 submodule slots with compact dimensions. Its front panel includes labeling for easy identification. The submodule connects to field devices via the carrier module’s terminals.
