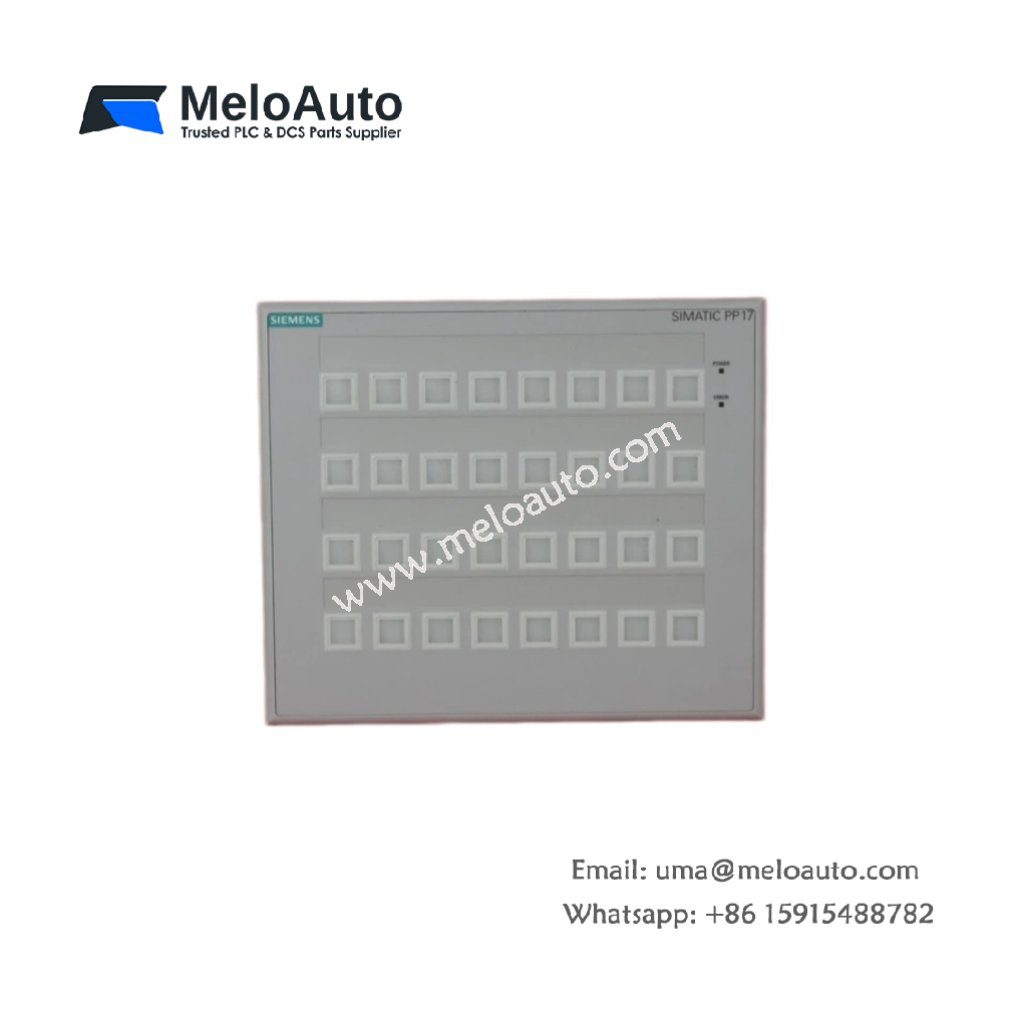

The 6AV3688-4EY06-0AA0 functions as a dedicated operator panel for industrial control systems. This unit belongs to the SIMATIC HMI product family. You can use it for machine commands and status monitoring tasks.
Key Technical Parameters
The table below lists all essential technical specifications for this push button panel.
| Specification | Details |
|---|---|
| Part Number | 6AV3688-4EY06-0AA0 |
| Product Type | Push Button Panel |
| Number of Keys | 8 programmable buttons |
| Display Type | LED indicators (integrated) |
| Dimensions (W x H x D) | 140 mm x 110 mm x 45 mm |
| Weight | Approx. 0.35 kg |
| Interface | PROFIBUS DP (RS-485) |
| Communication Speed | 9.6 kbps to 12 Mbps |
| Power Supply | 24V DC nominal |
| Protection Rating | IP65 (front) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
Physical Characteristics and Installation
This push button panel weighs approximately 0.35 kg for easy mounting. Its dimensions measure 140 mm x 110 mm x 45 mm. The front panel carries an IP65 protection rating against dust and water. First, cut a standard cutout in your control cabinet door. Then, insert the 6AV3688-4EY06-0AA0 from the front side. Finally, secure it with the included mounting clips.
Key Configuration and Communication
The panel features 8 programmable buttons for user-defined functions. Each button includes an integrated LED indicator for visual feedback. You can assign different commands to every key through your HMI software. The PROFIBUS DP interface connects the panel to your PLC network. Moreover, the communication speed ranges from 9.6 kbps up to 12 Mbps. This flexibility suits both simple and complex automation networks.
Power and Environmental Limits
The 6AV3688-4EY06-0AA0 requires a stable 24V DC power supply for operation. The device operates reliably between 0°C and 50°C. For storage, it withstands temperatures from -20°C to 70°C. Consequently, this panel works well in most factory environments.
