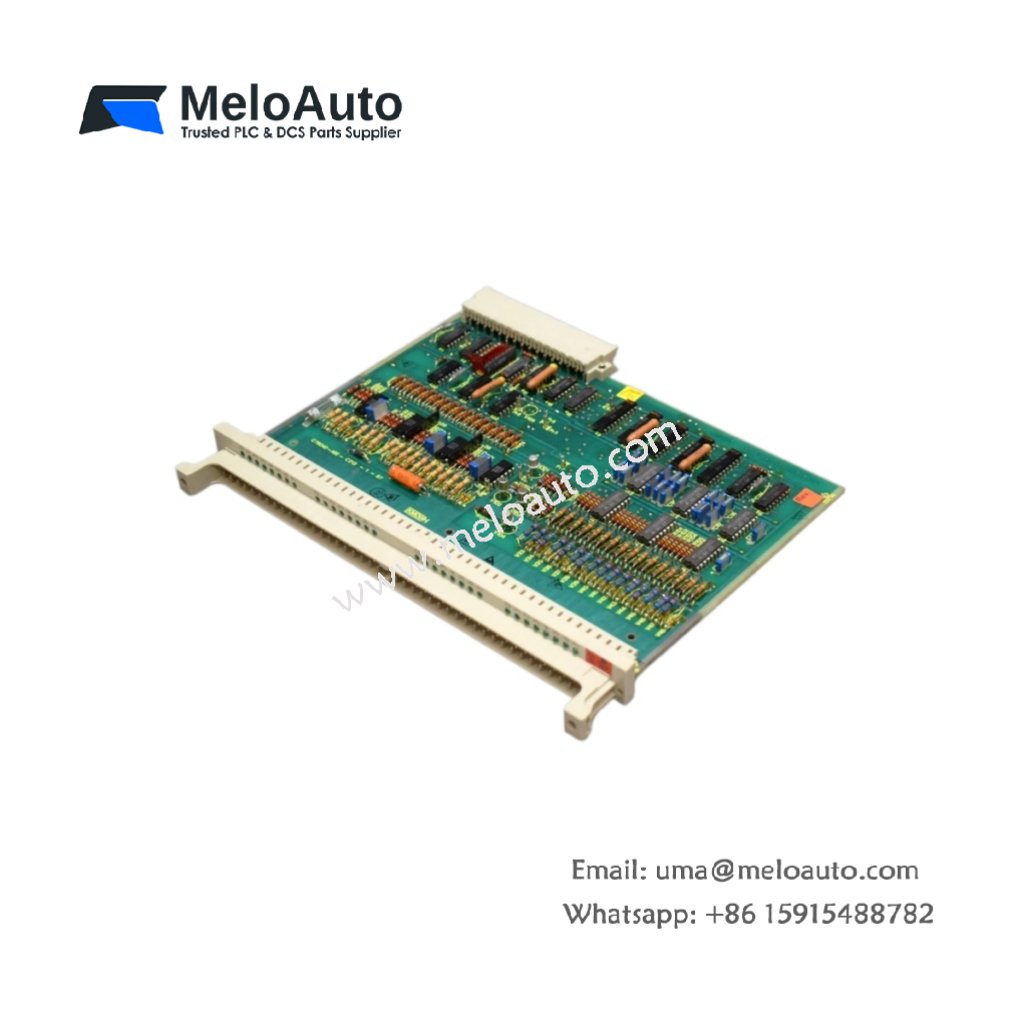

Siemens 6ES5481-3BA12 | SIMATIC S5 Digital I/O Module

Technical Overview of the Siemens 6ES5481-3BA12 Module

The Siemens 6ES5481-3BA12 serves as a digital input/output module within the SIMATIC S5 PLC family. This module provides a reliable interface between your controller and field devices. It handles discrete signals with precision and durability for industrial environments. Users can depend on this module for consistent performance in automation tasks.

Key Technical Specifications

This section details the precise parameters for the Siemens 6ES5481-3BA12 module. These figures ensure proper system integration and operation.

Parameter	Specification
Part Number	6ES5481-3BA12
Type	Digital Input/Output Module
Product Family	SIMATIC S5
Dimensions (W x H x D)	Approximately 2.0 x 24.0 x 19.0 cm
Weight	Approximately 0.33 kg
Inputs	16 Digital Inputs (24V DC)
Outputs	16 Digital Outputs (24V DC, 0.5A)
Isolation	Provides electrical isolation for robust signal integrity
Compatibility	Designed specifically for SIMATIC S5 PLC systems

Application and Integration

This module excels in applications requiring multiple digital I/O points. It effectively consolidates 16 inputs and 16 outputs into a single module. This compact design saves valuable space within your control cabinet. The Siemens 6ES5481-3BA12 connects directly to the SIMATIC S5 backplane bus for seamless communication . Consequently, integration becomes straightforward for system upgrades or new installations.

Reliability and Performance

Siemens engineered this module for demanding industrial conditions. Its robust construction ensures stable operation across various factory floor environments. Moreover, the electrical isolation protects the central controller from voltage spikes. Therefore, the Siemens contributes to a more reliable and durable automation system. This proven design has made it a staple in legacy and operational SIMATIC S5 systems.
