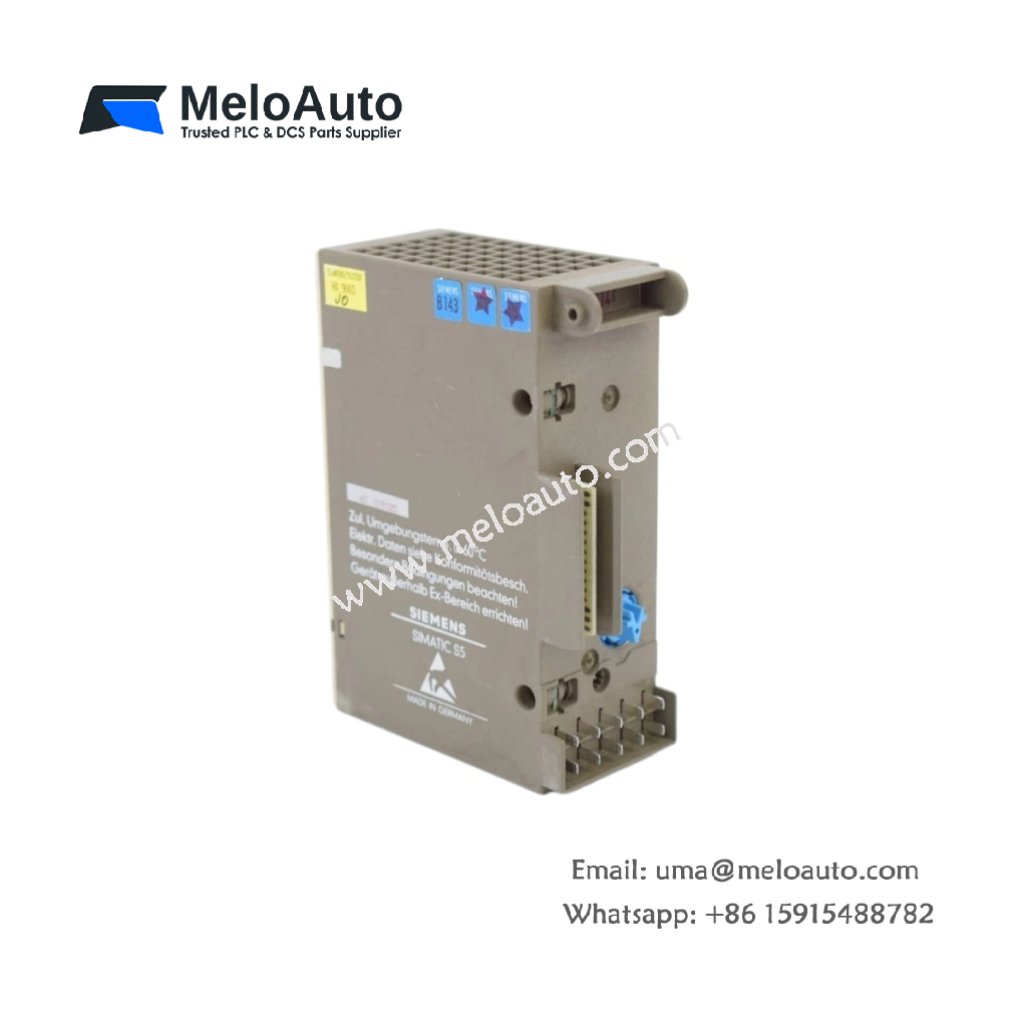

Siemens 6ES5457-8EA12 Digital Output Module

Why This Output Module Drives High-Current DC Loads

This digital output module switches eight high-current DC load circuits. You get a powerful Siemens 6ES5457-8EA12 for SIMATIC S5 programmable controllers. It drives large solenoids, brakes, and DC motors directly. Therefore, your system eliminates external contactors for many demanding applications.

Technical Specifications and Physical Details

The Siemens 6ES5457-8EA12 provides eight transistor output channels on one board. Each channel handles up to 8 amps of continuous current at 24V DC. This module fits into a standard S5 rack slot. Its dimensions measure approximately 250 mm in width and 25 mm in height. The unit weighs around 0.52 kg for straightforward installation. This output card stores no configuration data internally. Instead, the CPU holds all logic and state information. Consequently, you lose no settings during a module replacement.

Below is the detailed breakdown of the hardware specifications.

Installation and Wiring Notes

This module connects directly to high-current field devices. You must use wire gauges suitable for 8 amps per channel. The Siemens 6ES5457-8EA12 features screw-type terminals for secure connections. Therefore, field wiring remains stable even with heavy vibration. Always add a freewheeling diode across inductive DC loads. This practice prevents voltage spikes from damaging the output transistors.
