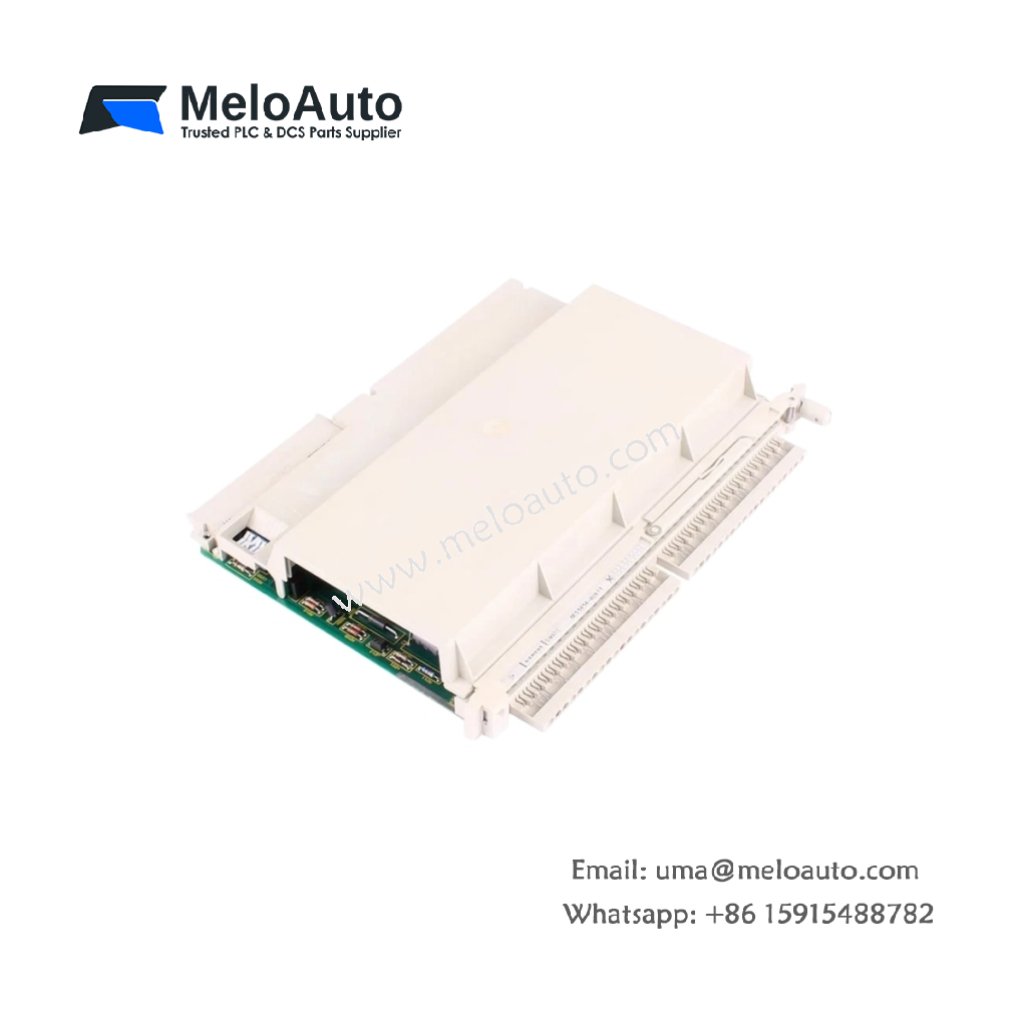

Siemens 6ES5454-4UA11 Digital Output Module

High-Density Actuator Control for S5-115U Systems

The Siemens 6ES5454-4UA11 digital output module provides high-density actuator control for SIMATIC S5-115U automation systems. This module translates logic commands from the CPU into switching actions for field devices. Industrial processes demand reliable output stages, and this unit delivers robust performance consistently.

Output Specifications and Electrical Ratings

This digital output module features 16 sourcing output channels with individual short-circuit and overcurrent protection. Each output switches 24 V DC loads up to 0.5 A, with a total current capacity of 8 A across all channels. The module incorporates integrated freewheeling diodes for inductive load suppression. Furthermore, each channel includes an individual LED indicator for visual status verification.

Output Protection and Fault Management

The Siemens 6ES5454-4UA11 incorporates comprehensive protection mechanisms for reliable operation. Thermal shutdown activates at 85°C to prevent damage from overloaded channels. Each output features current limiting to protect the module and connected equipment. The module also includes transient voltage suppression to absorb inductive kickback from relays. These protective measures ensure reliable operation in demanding industrial environments.

Diagnostic Capabilities and Status Indication

Individual LED indicators on the front panel show the status of each output channel. A collective fault signal activates upon overcurrent, overtemperature, or short-circuit events. The module also provides diagnostic feedback to the CPU for each channel. These diagnostic features simplify troubleshooting and reduce maintenance time.

Physical Design and Installation

This digital output module features a 40 mm housing that fits standard S5-115U rack slots. The unit weighs approximately 0.38 kilograms, allowing straightforward installation and removal. A 32-pin front connector provides access to all output terminals and the common power supply. Screw-type terminals accept wires from 0.5 mm² to 2.5 mm² for secure field connections.

System Integration and Addressing

You can install this output module in any slot of the S5-115U central or expansion rack. The module maps its 16 outputs to consecutive addresses in the CPU’s I/O image table. For inductive loads, connect external suppression diodes across the field devices. Always connect the external 24 V DC supply to the module’s power terminals before operation. The module operates reliably from 0°C to 55°C with proper cabinet ventilation.
